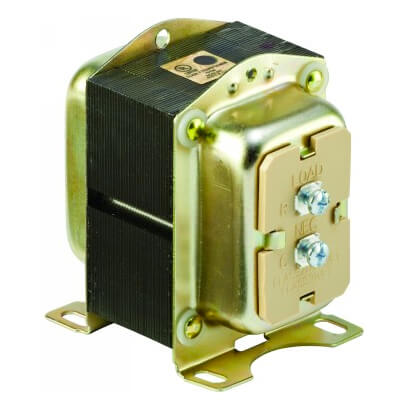

Resideo AT87A1049 Foot Mounted 120/24V Transformer with Energy Limiting Overload Protection

Product Description

The Resideo AT87A1049 is a crucial component for professionals needing reliable power conversion in HVAC systems. This foot-mounted 120 Vac transformer efficiently handles 24V air conditioning circuits and extends its utility to other applications within rated specifications.

• Foot-mounted installation with energy limiting overload protection
• Meets various safety and operational standards, including NEC Class 2 and UL 1585
• Supplied with 12-inch color-coded leadwires for easy connection

Product Highlights

This transformer is designed for efficiency and safety, featuring a NEMA TYPE E energy limiting overload to ensure reliable functionality across a variety of setups.

Product Information

Standard Information

• Brand: Resideo Braukmann
• Model: AT87A1049

Technical Specifications

• Electrical Ratings-Primary: 120 Vac
• Electrical Ratings-Secondary: 26.5 V.O.C.
• Frequency: 60 Hz, 50 Hz
• Mounting: Foot mounted
• NEMA Rating: TYPE E
• Output: 24 Vac at 48 VA
• Temperature Rating: -20 F to +105 F
