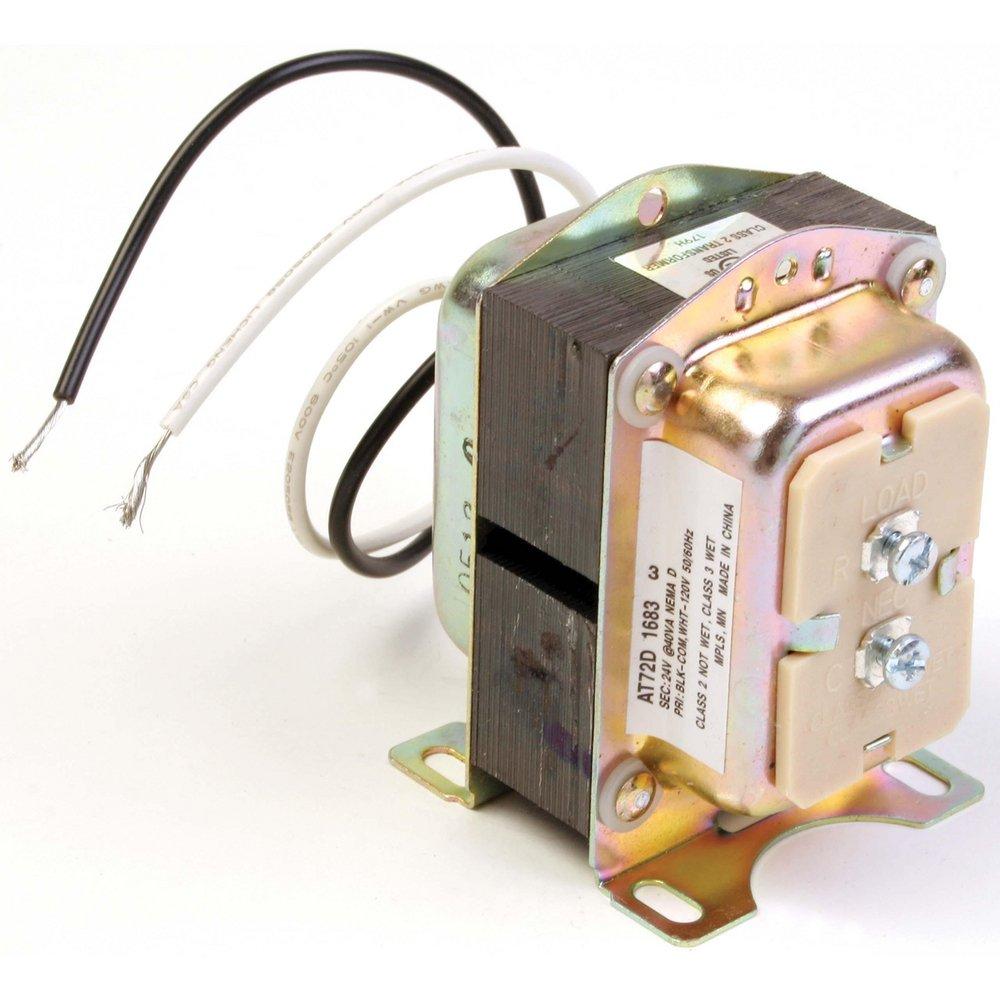

Resideo AT72D1683 AT72 40V Universal Mount Transformer HAT72D1683

Product Description

The Resideo AT72D1683 is a universal mount transformer designed for reliable operation in electrical applications. This transformer operates at a primary voltage of one hundred twenty volts and provides a secondary voltage of twenty-four volts at forty VA. It is suitable for various mounting options including foot, plate, and clamp. This transformer includes color-coded lead wires for easy installation and meets several industry standards.

• Energy limiting to protect against overload
• NEMA Type D rated for outdoor use
• Override protection included for enhanced safety

Product Highlights

This transformer is engineered to meet NEC Class 2 not wet and Class 3 wet requirements, as well as UL 1585 standards.

Product Information

Standard Information

• Brand: Resideo
• MPN: AT72D1683

Technical Specifications

• Primary Voltage: 120 Vac
• Secondary Voltage: 24 Vac at 40 VA
• Dimensions (inches): 3.22 x 2.25 x 3.06
• Weight: 2 lbs
• Frequency: 60 Hz
• Temperature Rating: -20 °F to +105 °F
• NEMA Rating: Type D
• Connections: 9 lead wires and 2 screw terminals
