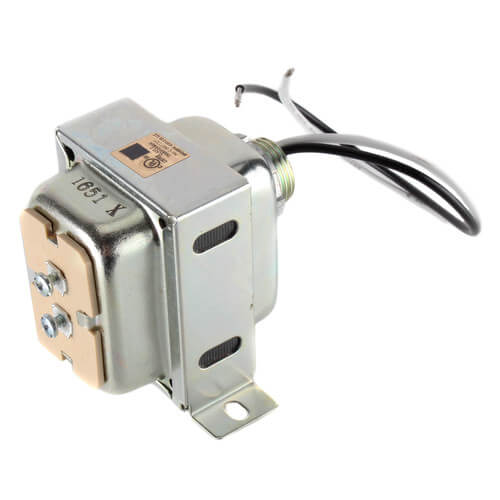

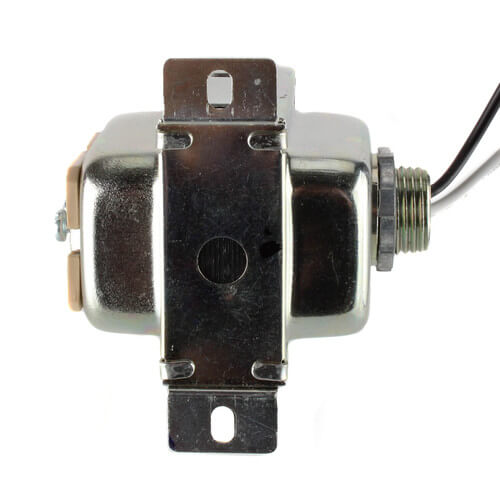

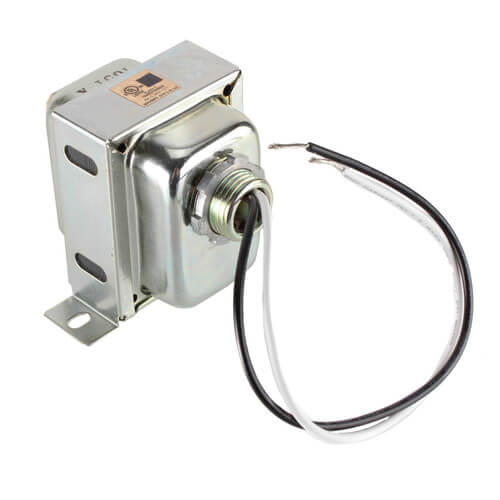

Resideo AT72D1089 Foot Mounted 120 Vac Transformer with 9 in. Lead Wires

Product Description

The Resideo AT72D1089 is a foot-mounted transformer designed to convert 120 volts AC to 24 volts AC. It is suitable for powering 24V control systems such as thermostats and gas valves.

• Transformers power 24V control systems.
• Includes color-coded lead wires for easy connections.
• Rated for temperature range from -20 degrees Fahrenheit to +105 degrees Fahrenheit.

Product Highlights

This transformer meets various industry standards and provides reliable control for HVAC systems.

Product Information

Standard Information

• Brand: Resideo
• MPN: AT72D1089

Technical Specifications

• Electrical Ratings: 120 Vac
• Secondary Voltage: 24 Vac at 40 VA
• Frequency: 50 Hz / 60 Hz
• NEMA Rating: NEMA Type D
• Connections (Primary): 1/2 inch male conduit spud with 9 inch lead wires
• Connections (Secondary): Two screw terminals
• Dimensions: 3-7/32 inches high x 2-7/32 inches wide x 3-1/16 inches deep
• Temperature Ratings: -20°F to +105°F
