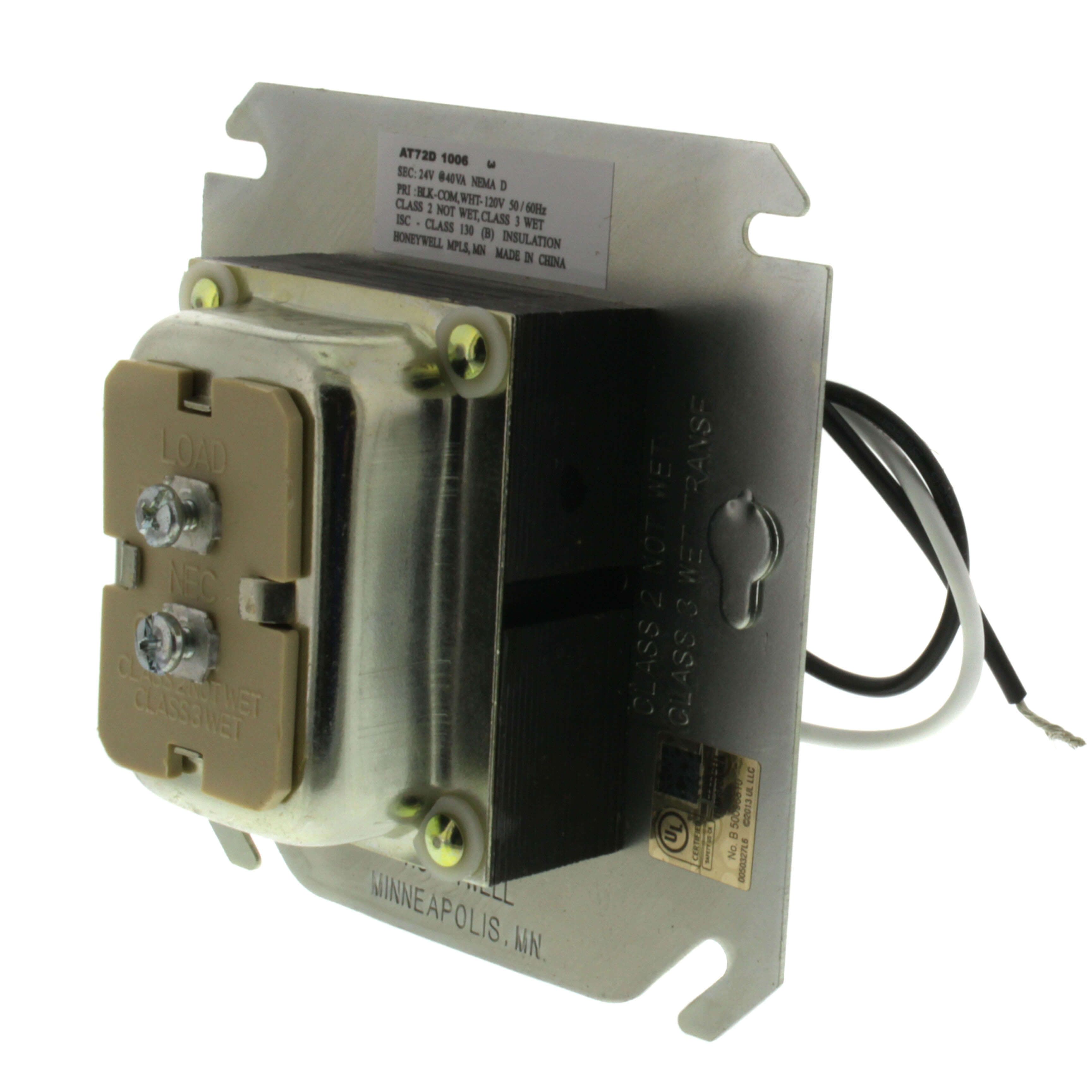

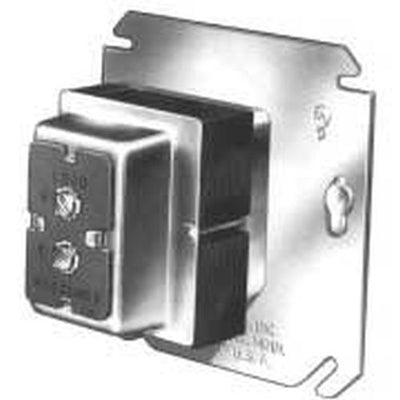

Resideo AT72D1006 Transformer 120V-24V

Product Description

The Resideo AT72D1006 Transformer efficiently steps down 120V AC to 24V AC, providing energy-efficient power conversion for various 24V control systems. This Resideo model is particularly constructed for industrial and commercial environments, ensuring durable performance under demanding conditions.

• Color-coded lead wires enhance easy setup.
• Energy limiting capabilities meet NEMA Standard DC20-1992.
• Includes override protection and UL 1585 compliance in wet and dry environments.

Product Highlights

Optimized for HVAC systems, security systems, and lightings such as LED, halogen, and fluorescent fixtures. Its compact and robust design is suited for placement in constrained spaces and enclosures.

Product Information

Standard Information

• Brand: Resideo
• MPN: AT72D1006
• Categories: Transformers, Electrical Supplies

Technical Specifications

• Primary Voltage: 120V AC
• Secondary Voltage: 24V AC, 40 VA
• Temperature Tolerance: -20°F to 105°F

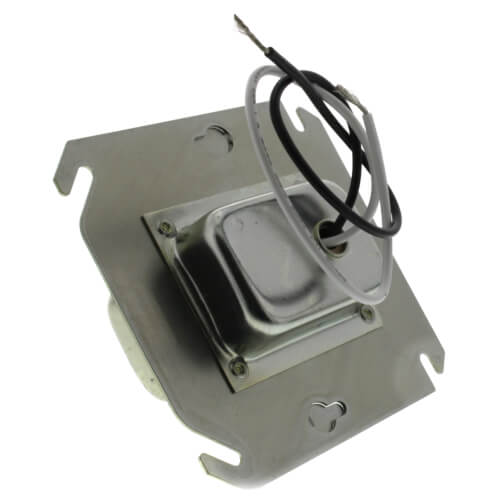

• Mounting Type: Plate-mounted, fits into junction box
• Dimensions: 3-7/32 inches high, 2-7/32 inches wide
• Safety Certifications: NEC Class 2 and 3, NEMA Type D
