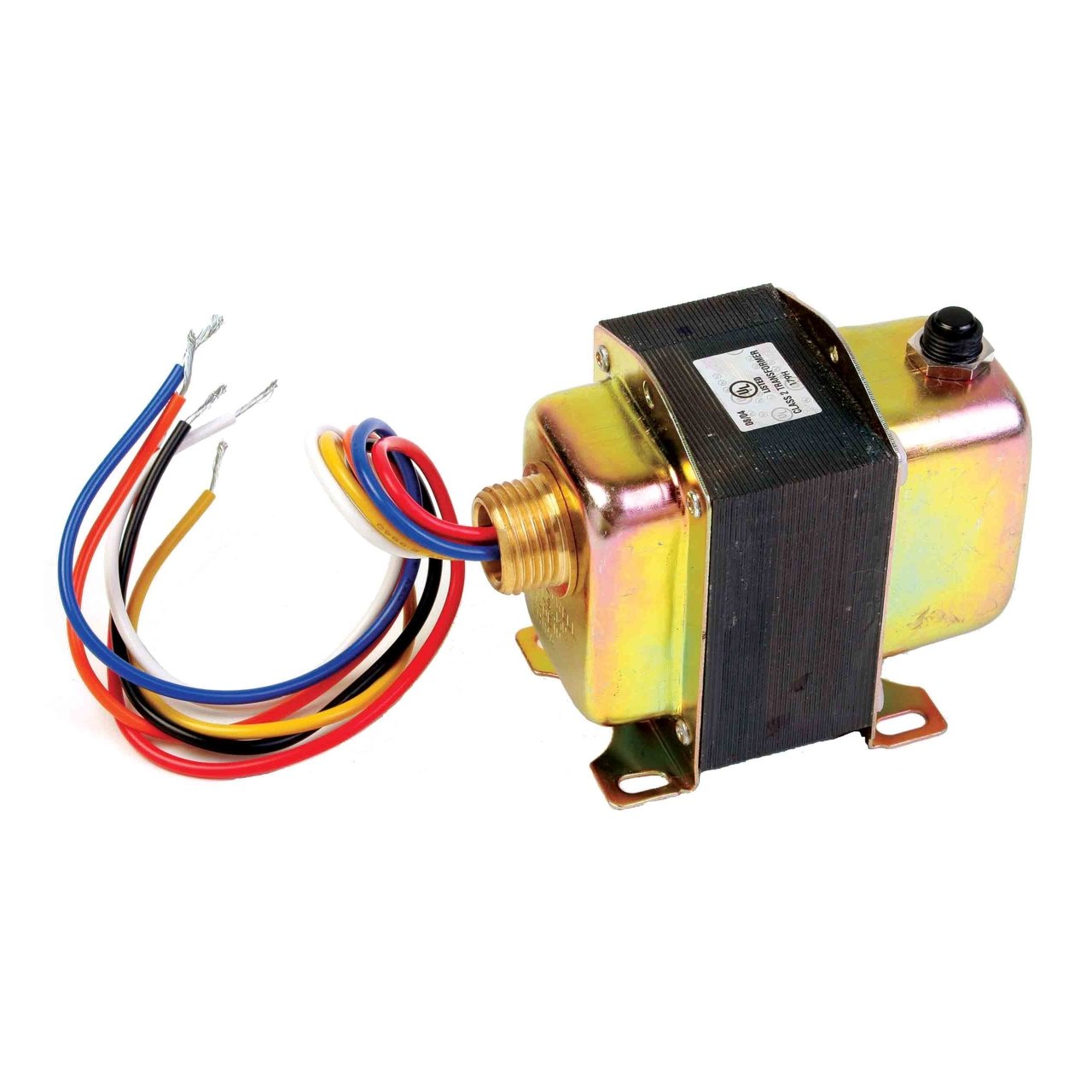

Resideo AT175F1023 AT175 120/208/240V 75VA transformer foot & conduit mount with manual reset

Product Description

The RESIDEO AT175F1023 Transformer provides power to 24 Vac circuits, commonly used in heating and cooling control systems. This 75VA transformer operates with a primary input voltage of 120/208/240V. It features color-coded lead wires for primary connections and screw terminals for secondary connections, meeting UL Standard 1585 and NEC Class 2 not wet, Class 3 wet requirements. Its robust design supports various electrical systems and industrial applications.

• Meets Underwriters Laboratories standard UL 1585 and identified as Class 2 not wet, Class 3 wet.
• Features color-coded lead wires for primary connections and screw terminals for secondary connections.
• Includes a manually resettable circuit breaker for overcurrent protection.

Product Highlights

Provides stable 24 Vac power for control systems with a 75 VA rating and multi-voltage input.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: AT175F1023

Technical Specifications

• Brand: Resideo
• MPN: AT175F1023
• Part Number: HAT175F1023
• Item Number: 487940
• Unit of Measure: EACH
• Category: Electrical
• Subcategory: Transformers
• VA Rating: 75VA
• Primary Voltage: 120/208/240V
• Mounting: Foot & Conduit Mount
• Product Type: Plate or panel mounted 120/208/240 Vac Transformer with 9 in. lead wires and metal end bells
• Secondary Voltage: 27.5 V.O.C.
• Frequency: 60 Hz
• Primary Connections: 9 in. leadwires
• Output: 24 Vac at 75 VA
• Operating Temperature Range: -20°F to +105°F

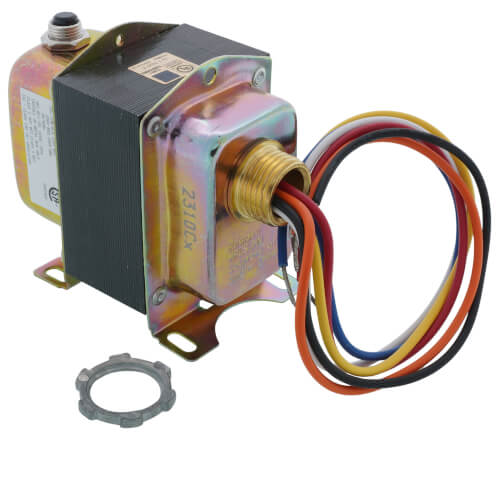

• Included Components: Button for manually resetting the circuit breaker, metal end bells, 1/2-14 NPSM conduit connector, Lock Nut, Mounting Feet
• Application: 24v Controls, Power Controller, Powering Sensors, Driving Relays, Driving Digitals I/O Circuits, Voltage Reduction, Magnetic Switches
• NEMA Rating: None
• Termination: Screw Terminal
• Type: Closed
• Over Current Protection: Circuit Breaker
• Conduit Connection: 1/2" male NPT
• Certifications: UL Listed (File no. E14881, Guide no. XOKV, UL5085-3), CSA Certified (File No. LR95329-18), NEC Class 2 "not wet", Class 3 "wet"
• Color: Metallic
