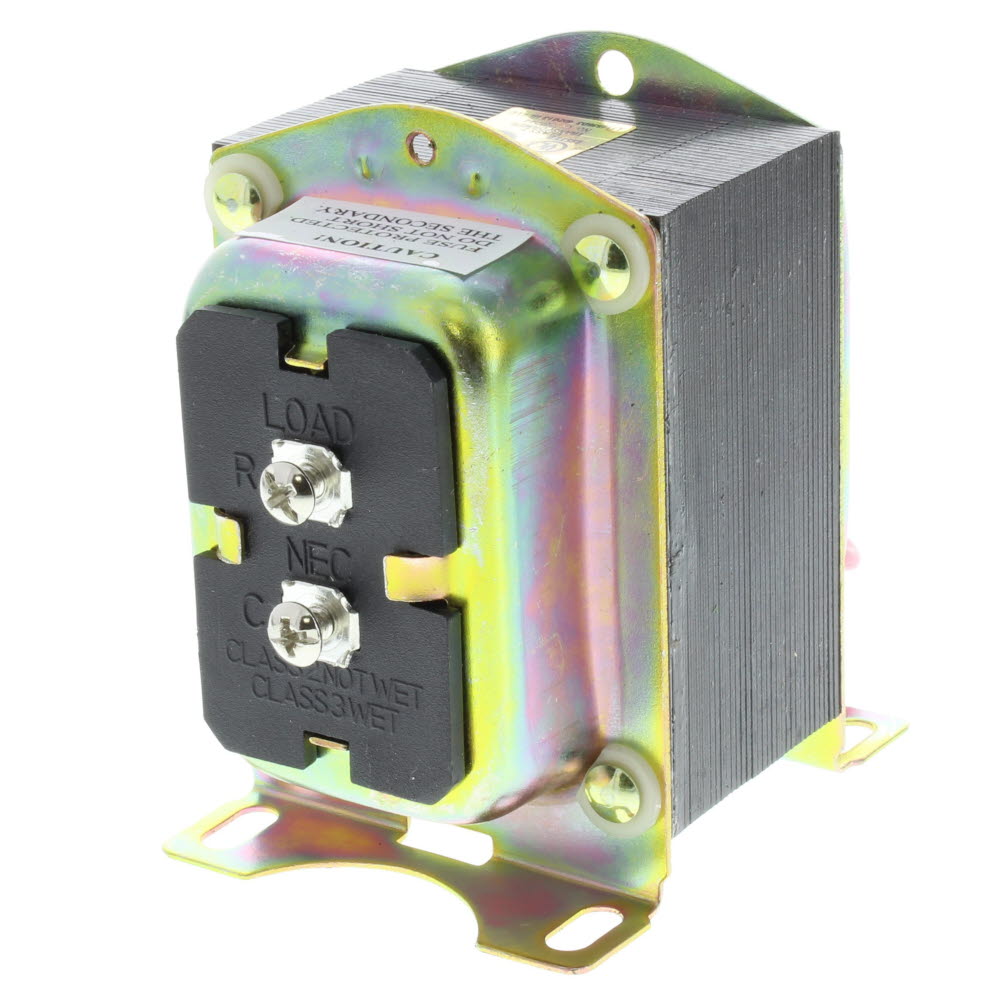

Resideo AT175A1008 Foot-Mounted Transformer 75V 3-5/8 in

Product Description

The Resideo AT175A1008 is a robust foot-mounted transformer designed for reliable performance in HVAC systems. This transformer efficiently provides power to 24 Vac circuits, ensuring stable operation in heating and cooling control systems.

• Designed for consistency across 120V, 208V, and 240V inputs.
• Features color-coded lead wires and screw terminals for straightforward installations.
• Compliant with NEC Class 2 and UL 1585 standards for electrical safety.

Product Highlights

The transformer is capable of handling predictable, uniform loads within its specifications, making it versatile for various applications. With its durable metal end bells, the unit is built to last and protect components.

Product Information

Standard Information

• Brand: Resideo
• MPN: AT175A1008
• Category: Electrical Transformers

Technical Specifications

• Electrical Output: 24 Vac at 75 VA
• Mounting Type: Foot, Clamp, Plate
• Temperature Range: -20°F to 105°F
• Dimensions: 3-5/8 in Depth, 3-3/16 in Height
• Standard Compliance: UL 1585, NEC Class 2
