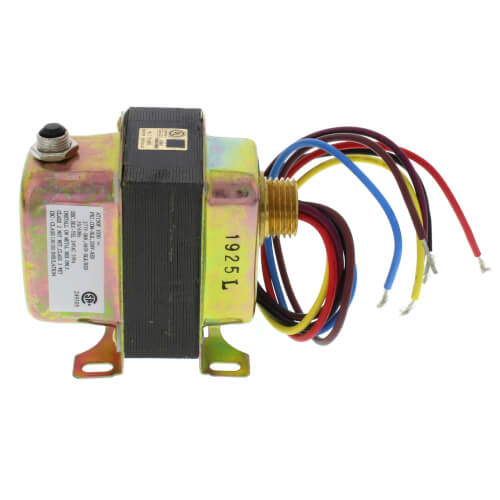

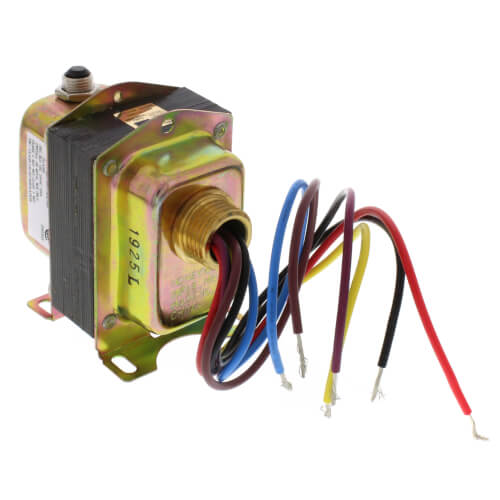

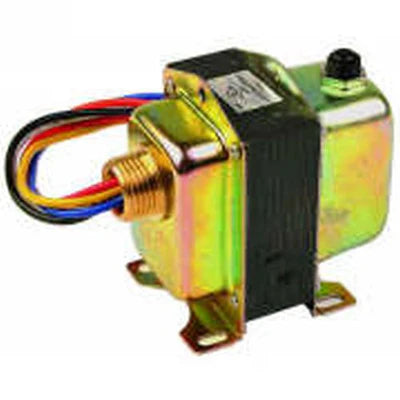

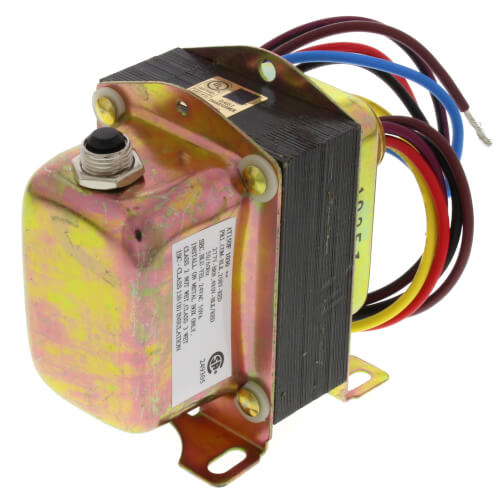

Resideo AT150F1030 Transformer 50VA 208/277/480V Condenser Mount Open Type

Product Description

The Resideo AT150F1030 Transformer is engineered for dependable performance in HVAC systems, specializing in controlling condenser motors. Precisely designed for condenser mounting, this component offers a stable electrical interface to safeguard the system's integrity.

• Features a robust design suitable for challenging conditions.
• Supports 208V, 277V, and 480V inputs with a simple installation process.
• Equipped with a manual reset button for the circuit breaker, enhancing system reliability.

Product Highlights

This Resideo transformer is UL listed, ensuring compliance with strict safety standards. It's ideal for residential and commercial HVAC systems, providing effective power management and system protection. Effective installation and maintenance are emphasized to maximize longevity and efficiency of the unit.

Product Information

Standard Information

• Brand: Resideo
• MPN: AT150F1030

Technical Specifications

• Coil Voltage: 208/277/480V
• Contact Configuration: 3-pole
• Rated Current: 150 Amps
• Enclosure Type: Open
• Mounting Type: Condenser mounting
• Electrical Output: 24 Vac at 50 VA
• Temperature Range: -20°F - 105°F
