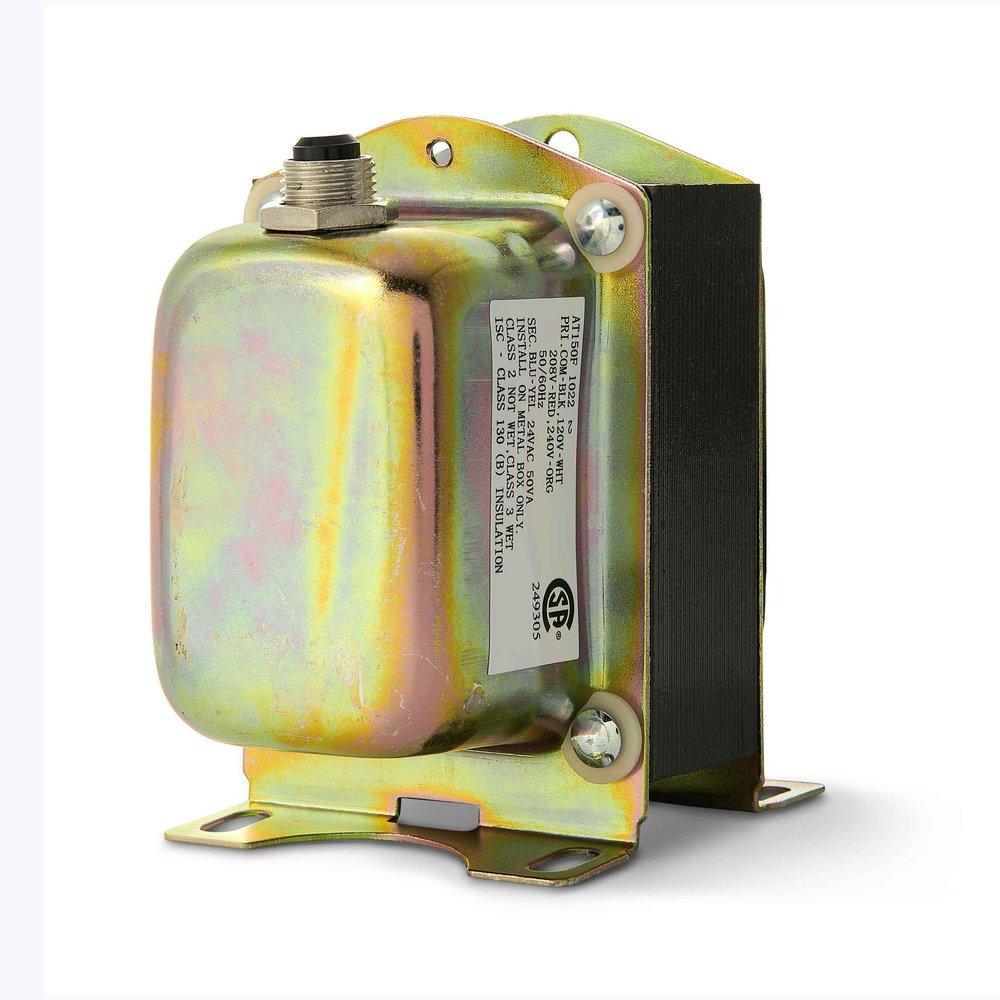

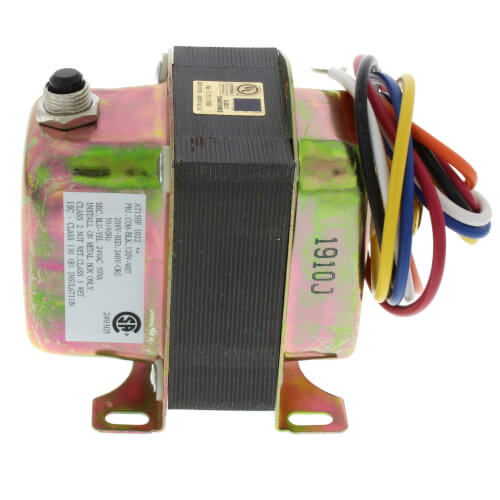

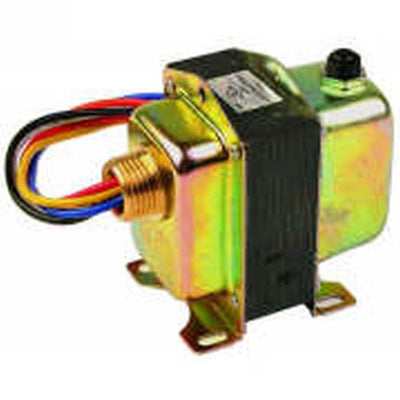

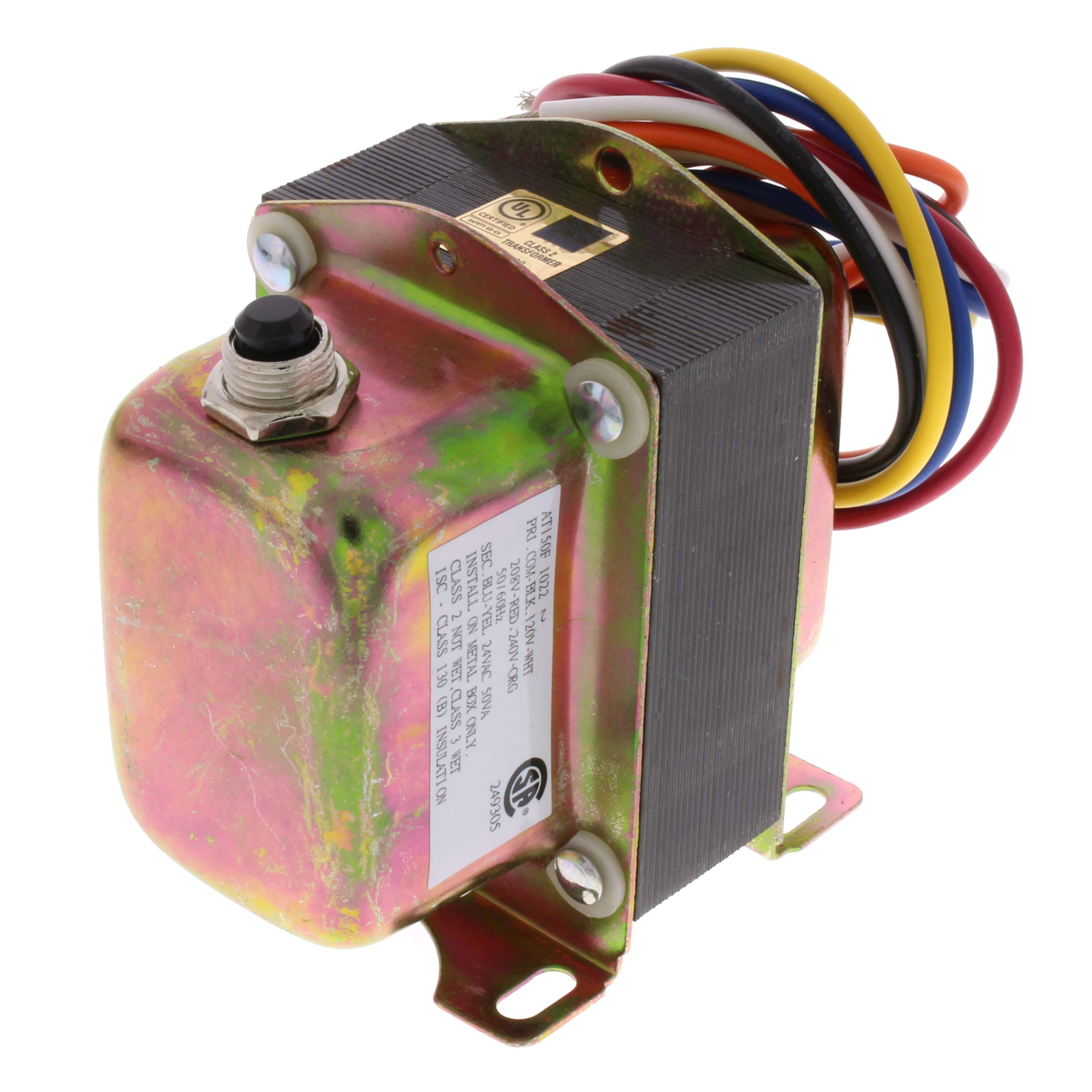

Resideo AT150F1022 Tradli 120/208V 50VA Transformer

Product Description

The Resideo AT150F1022 Transformer ensures dependable power supply to 24 VAC circuits, designed specifically for consistent, uniform loads in heating and cooling control systems. This unit is ideal for applications that adhere to the included voltage ratings of 120 VAC, 208 VAC, and 240 VAC.

• Features a robust design with metal end bells and plate or panel mounting options.

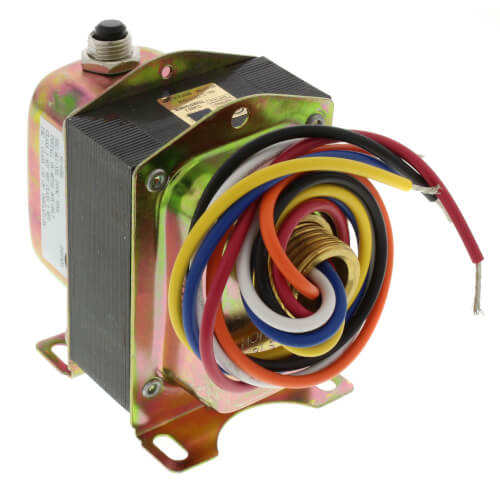

• Equipped with 9-inch color-coded leadwires for easy primary and secondary connections.
• Includes a manual reset button for circuit breakers enhancing safety and usability.

Product Highlights

The transformer is rated at 50 VA and meets NEC Class 2 requirements, making it suitable for a wide range of industrial applications. It also meets UL 1585 standards identifying it as Class 2 not wet, Class 3 wet, ensuring compliance with safety regulations.

Product Information

Standard Information

• Dimensions: 3-3/16 inches high by 2-3/16 inches wide by 3-5/8 inches deep
• Temperature Ratings: From -20°F to +105°F

Technical Specifications

• Electrical Ratings: 120 VAC, 208 VAC, 240 VAC
• Output: 24 VAC at 50 VA
• Frequency: 60 Hz
• Mounting: Includes 1/2 14 NPSM conduit connector and lock nut
