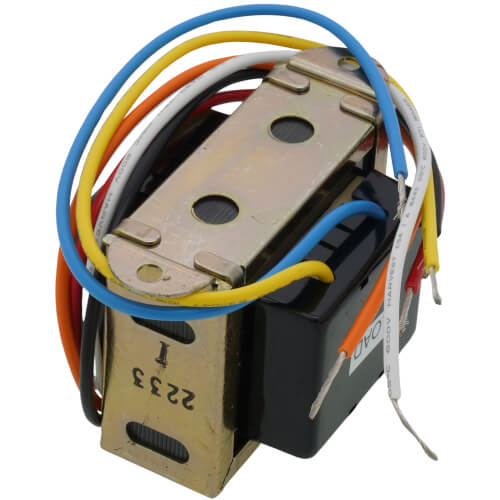

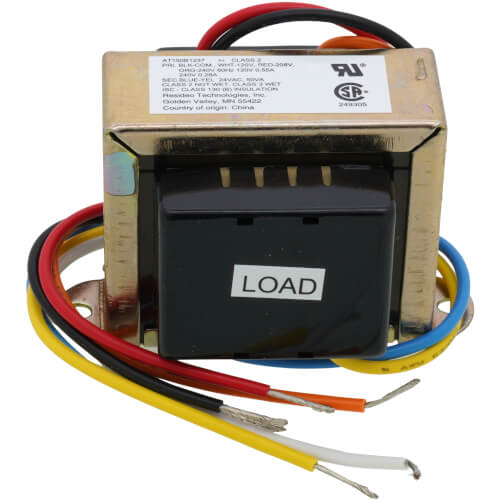

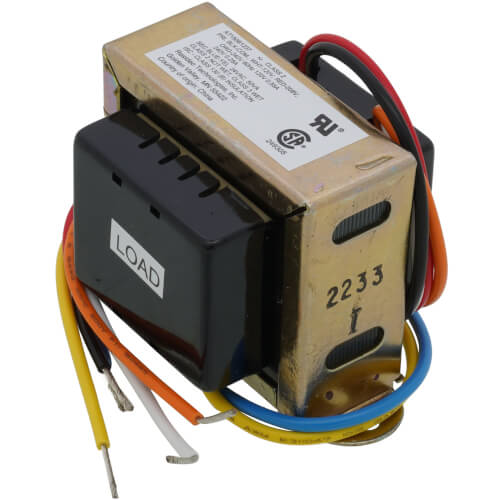

Resideo AT150B1237 Foot Mounted Transformer 120 208 240 Vac

Product Description

The Resideo AT150B1237 Transformer is engineered for reliable performance in 24v control systems. With a primary voltage rating of 120, 208, and 240 Vac, this durable transformer by Resideo enhances the functionality and flexibility of your electrical setups.

• Equipped with 9-inch lead wires for quick and secure primary and secondary connections.
• Complies with NEC Class 2 and UL 1585 safety standards, designed for both wet and dry applications.
• Robust foot-mounted design ensures stable installation.

Product Highlights

This transformer features a compact design measuring approximately 1.69 inches high, 3.5 inches wide, and 1.75 inches deep. The temperature operating range is from -20 to 105 degrees Fahrenheit, making it versatile for various environmental conditions.

Product Information

Standard Information

• Weight: 1.91 lbs
• Dimensions: 1.69 x 3.5 x 1.75 inches

Technical Specifications

• Primary Voltage: 120, 208, 240 Vac
• Secondary Voltage: 27.5 V.O.C.
• Frequency: 60 Hz
• Mounting Type: Foot-mounted
• Electrical Connections: 9-inch lead wires with 1/4 inch male quick-connects
