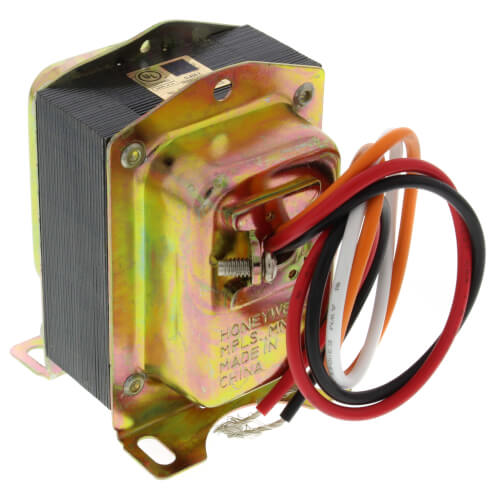

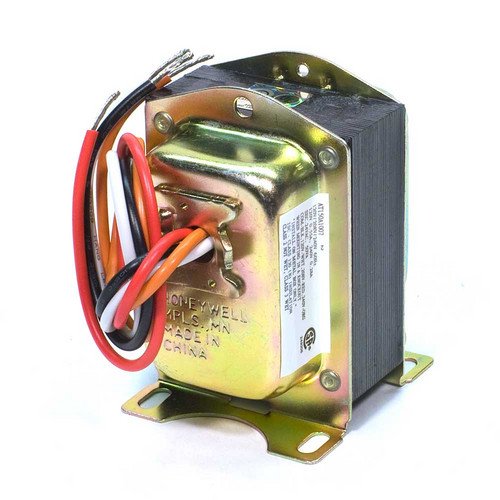

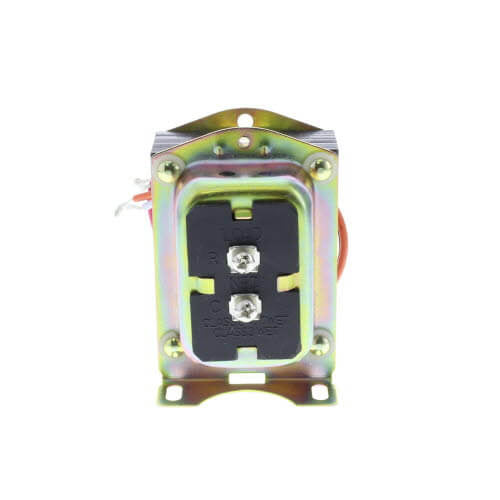

Resideo AT150A1007 Foot-Plate Clamp Panel-Mount Transformer 50VA

Product Description

The Resideo AT150A1007 Transformer is designed to provide reliable power to 24 Vac circuits, particularly in heating and cooling control systems. This multi-mount transformer can be installed using foot, plate, clamp, or panel mounting methods, making it highly versatile for varied electrical setups.

• Versatile mounting options including foot, plate, clamp, and panel.
• Includes color-coded leadwires and screw terminals for easy connections.
• Meets UL 1585 standards; compatible with NEC Class 2.

Product Highlights

Rated at 50 VA, the Resideo AT150A1007 is fit for systems with uniform loads. Its universal design accommodates multiple mounting styles suitable for both residential and commercial applications.

Product Information

Standard Information

• Brand: Resideo
• Model: AT150A1007

Technical Specifications

• Primary Voltage: 120/208/240 Vac
• Secondary Voltage: 27.5 V.O.C.
• Frequency: 60 Hz
