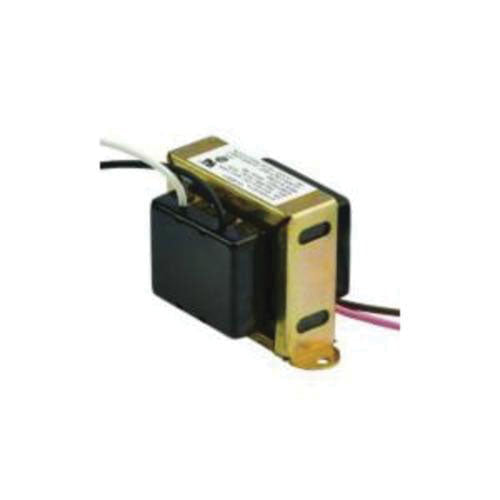

Resideo AT140B1214/U Honeywell Home Power Transformer 120 VAC (Primary) 27 VAC (Secondary)

Product Description

The Resideo AT140B1214/U is a power transformer designed for 120 VAC primary voltage and 27 VAC secondary voltage. This transformer is suitable for use in various applications requiring a reliable power source. It features a foot mount for easy installation and lead wire connection for straightforward setup.

• 40 VA rating suitable for general purpose use
• Temperature range from -20 to 105 degrees Fahrenheit
• Color-coded lead wires for primary connections and screw terminals for secondary connections

Product Highlights

The Honeywell Home AT140B1214/U is ideal for powering 24 VAC circuits. It includes plastic end caps for added protection and durability.

Product Information

Standard Information

• Brand: Resideo
• Manufacturer: Resideo Technologies Inc

Technical Specifications

• Primary Voltage: 120 VAC
• Secondary Voltage: 27 VAC
• VA Rating: 40 VA
• Frequency Rating: 60 Hz
• Mounting Type: Foot
• Connection Type: Lead Wire
• Temperature Rating: -20 to 105 deg F
• Dimensions: 1-11/16 in H x 3-1/2 in W x 1-3/4 in D
