Product Description

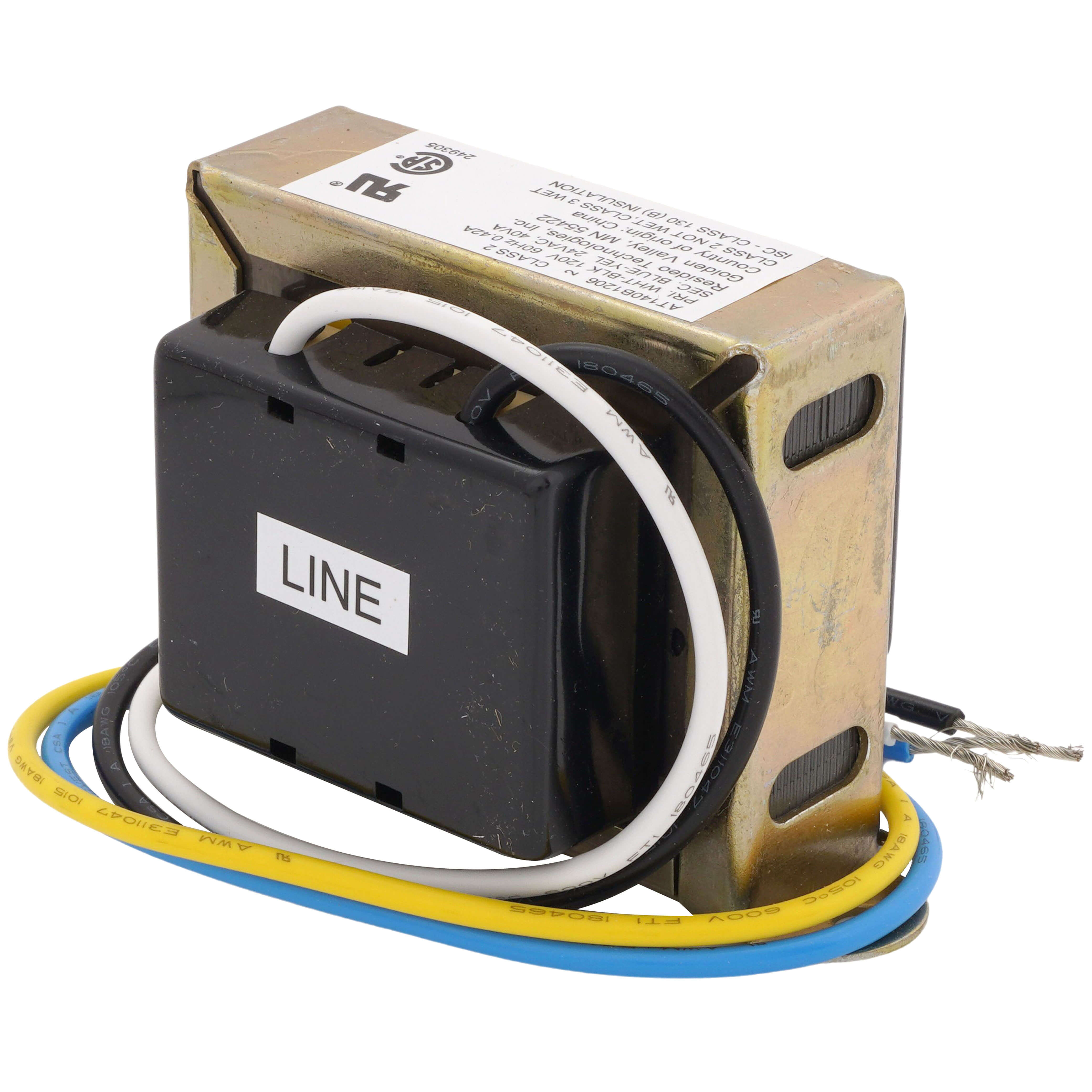

The Resideo AT140B1206 Transformer is designed to efficiently transform 120V primary voltage to 27V secondary voltage. This foot-mounted transformer is perfect for a wide range of industrial, commercial, or residential applications, ensuring reliable power for HVAC systems, lighting, and security systems.
- 120V primary voltage and 27V secondary voltage for efficient energy conversion.
- Compact design eases installation in tight spaces.
- Constructed for durability, reliability, and minimal energy loss.
Product Highlights
Enjoy consistent performance with the AT140B1206 Transformer, known for its robustness and efficiency. It features a foot-mounted design and is rated at 40 VA, making it suitable for a multitude of settings.
Product Information
Standard Information
-
Electrical Ratings: Primary - 120VAC, Secondary - 27VOC
-
Frequency: 60Hz
-
NEMA Rating: Not applicable
-
Dimensions: 1.69 inches high x 3.5 inches wide x 1.75 inches deep
Technical Specifications
-
Mounting: Foot-mounted
-
Temperature Ratings: -20°F to +105°F
-
Includes: Plastic end caps
-
Construction Materials: High-quality components for increased longevity
