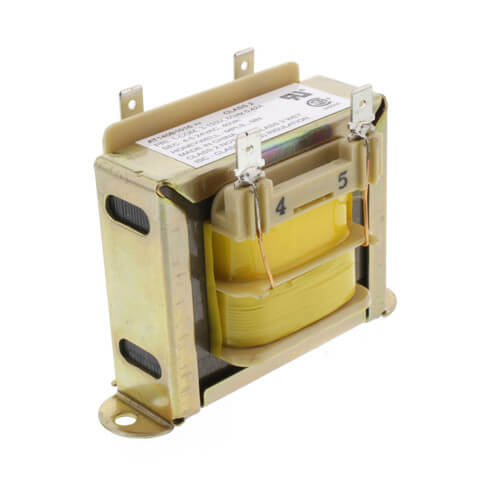

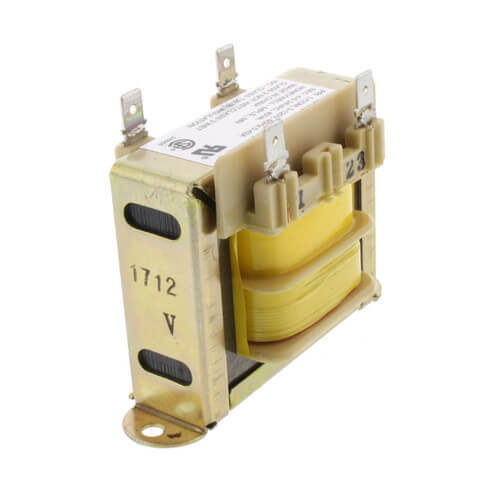

Resideo AT140B1016 Foot Mounted Transformer 120V Primary 24V Secondary

Product Description

The Resideo AT140B1016 Transformer is engineered for dependable power conversion in commercial and industrial settings. This 120V primary to 24V secondary, 40VA transformer is crucial for applications requiring stable electricity supply. Despite its robust functionality, it boasts a compact footprint, making it ideal for tight spaces.

• Designed to power 24V control circuits in HVAC systems.
• Features color-coded wiring for easy installation and maintenance.
• Complies with NEC Class 2 and UL 1585 standards, ensuring safety and reliability.

Product Highlights

This transformer is versatile and can support a variety of applications including control systems, lighting circuits, and other essential electrical equipment. It is built to withstand demanding environments, promising longevity and consistent performance.

Product Information

Standard Information

• Brand: Resideo
• MPN: AT140B1016
• Category: Transformers, Electrical Supplies

Technical Specifications

• Primary Voltage: 120 volts
• Secondary Voltage: 24 volts
• Power Capacity: 40 VA
• Mount Type: Foot mount
• Dimensions: Weight: 1.54 pounds, Width: 3-1/2 inches, Height: 1-11/16 inches, Depth: 3-5/8 inches
• Temperature Range: -20°F to 105°F
• Installation Manual: Available
