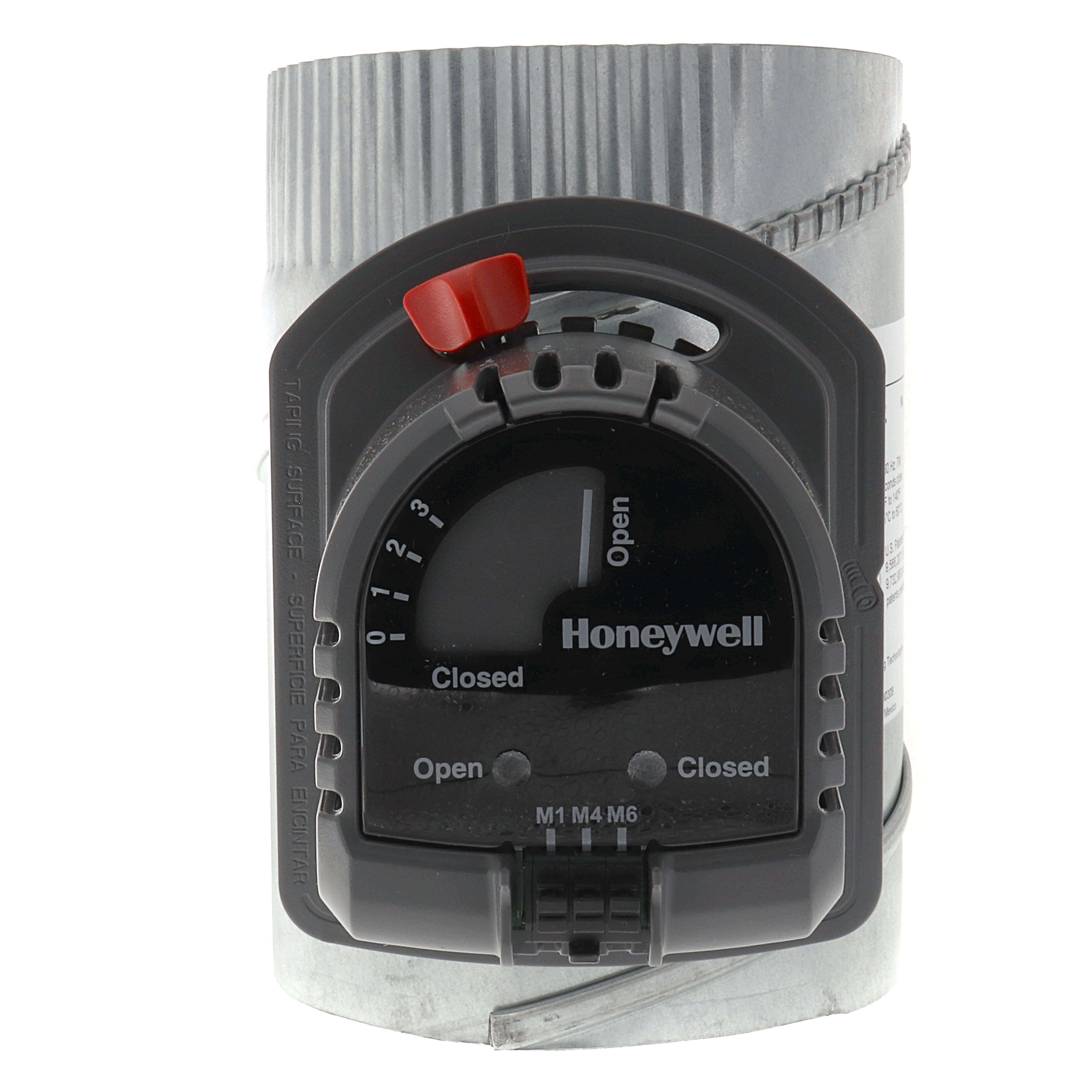

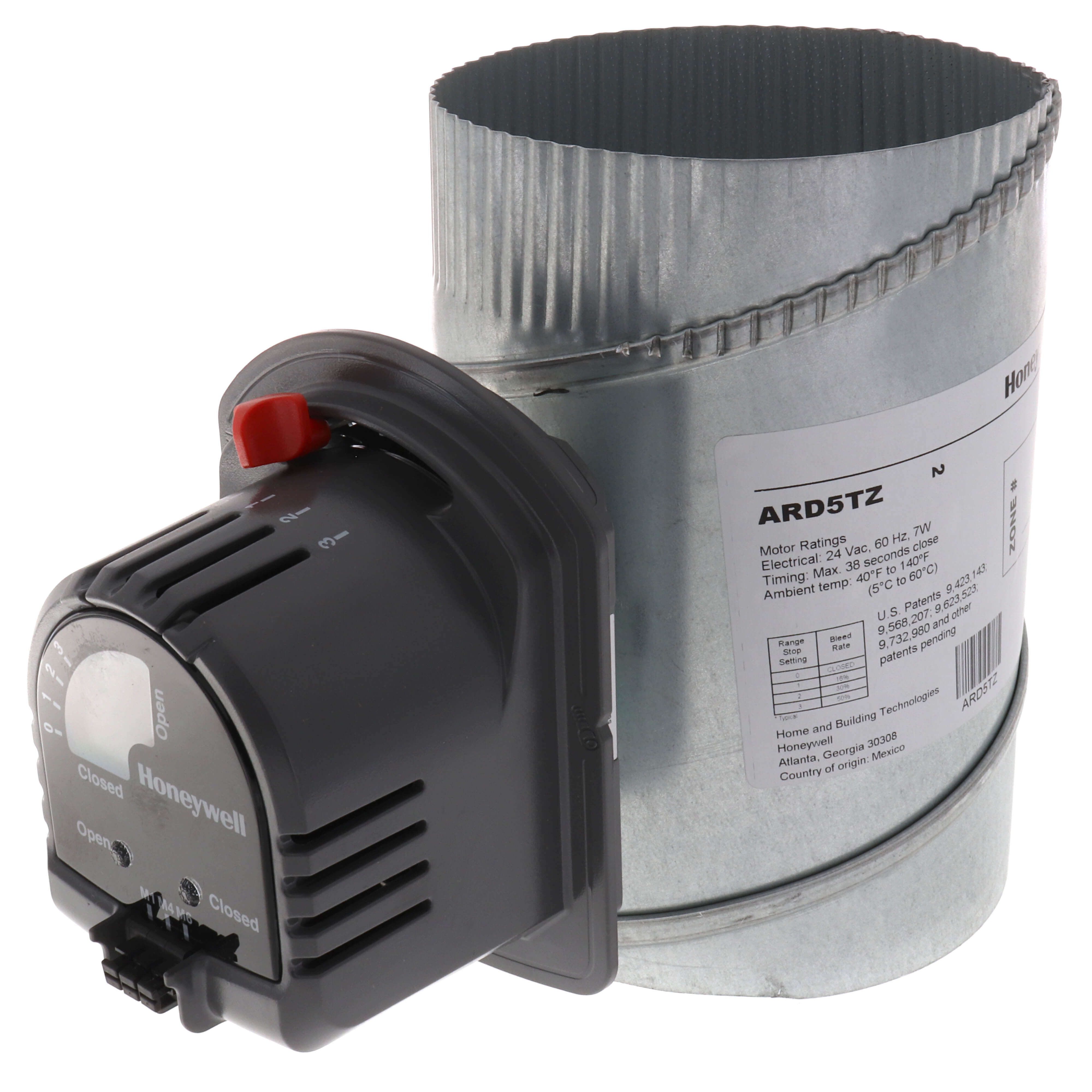

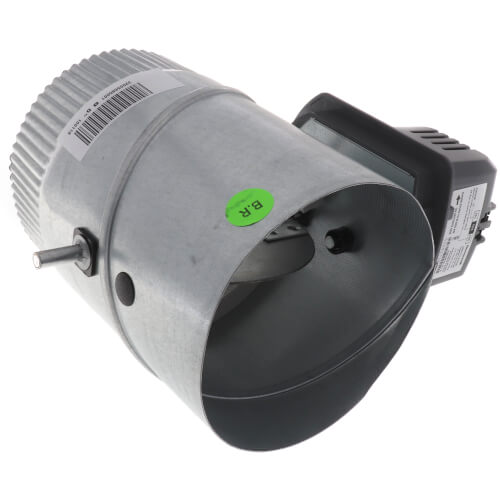

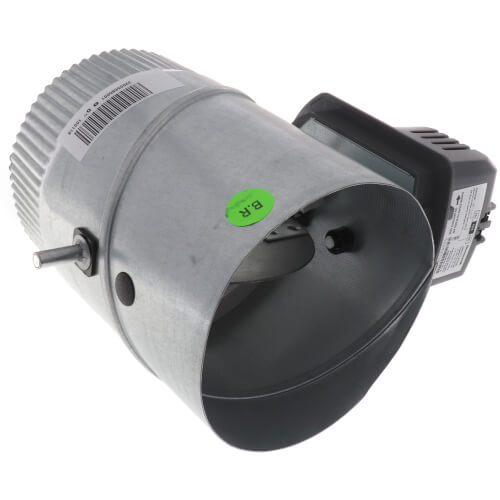

Resideo ARD5TZ 5 Inch Automatic Round TrueZONE Damper

Product Description

The Resideo ARD5TZ 5 Inch Automatic Round TrueZONE Damper is designed to control air flow in heating, cooling, and ventilation systems. This damper features power-close and spring-open models that ensure low leakage and efficient air circulation.

• Galvanized steel construction
• Power closed/spring return open
• Field-convertible design

Product Highlights

This damper is suitable for Honeywell Zoning Systems. The galvanized steel single-blade damper closes tightly against a gasket to minimize leakage. It can operate up to 1-inch water column and is field-convertible for independent zone use or fresh air intake.

Product Information

Standard Information

• Brand: Resideo
• MPN: ARD5TZ
• Product Name: 5 Inch Automatic Round TrueZONE Damper
• Application: HVAC Supplies - Dampers

Technical Specifications

• Size: 5 inches
• Voltage: 24v
• Material: Galvanized Steel
• Weight: 2.9 lbs
• Motor: Reversible, Power Closed, Spring Open
• Motor Mount: Side, Top
• Motor Timing: 10 seconds Spring Return, 30 seconds Power Closed
• Wires to Motor: 2
• Shape: Round
• Rated Operation: up to 1-inch wc
