Resideo ARD10 ARD10TZ Damper 24VAC 10-inch Replaces RDS-10 CRDS10 RSD-10

Product Description

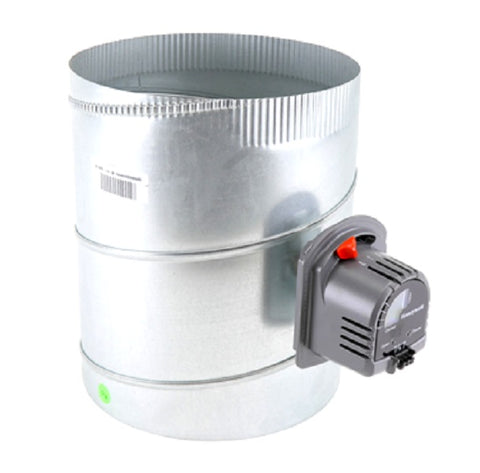

The Resideo ARD10 automatic round damper, model ARD10TZ, is a 10-inch, 24VAC motorized damper for precise HVAC zone control. It features a two-position actuator with a field-reversible power-closed/spring-return open configuration. Constructed from galvanized steel with synthetic bearings, it ensures low-leakage performance and durability. Compatible with Honeywell Home TrueZONE panels and other 24V zone controllers, it replaces legacy RDS-10, CRDS10, and RSD-10 models. Rated for static pressures up to 1.0 inch WC.

• Field-Reversible Actuator: Easily switches between Power-Closed/Spring-Open and Power-Open/Spring-Closed via a simple mechanical adjustment.
• High-Torque Performance: The synchronous motor actuator provides consistent force to ensure tight seal integrity and minimize bypass air.
• Direct Retrofit Compatibility: Designed to replace legacy round dampers including the ARD10 and RSD-10 series without ductwork modification.

Product Highlights

The ARD10TZ damper is frequently used for combustion air or fresh air make-up applications where a spring-return open fail-safe is required for safety protocols.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: ARD10

Technical Specifications

• Damper Type: Automatic Round Damper
• Damper Size: 10-inch
• Input Voltage: 24VAC
• Actuator Type: Motorized, Two-position
• Default Actuator Configuration: Power-closed/Spring-return open (field-reversible)
• Housing Material: Galvanized steel mill-finish shell
• Bearing Type: Synthetic
• Leakage Rating: Low-leakage
• Durability: Long-term under high-cycle conditions
• Replaces Models: Legacy RDS-10, CRDS10, RSD-10 models
• Actuator Torque: High
• Wiring Type: Two-wire terminal block
• System Compatibility: Honeywell Home TrueZONE panels and other 24V zone controllers
• Position Indicator: Visual position indicator
• Actuator Model: M847D-ZONE
• Static Pressure Rating: Up to 1.0 inch WC
