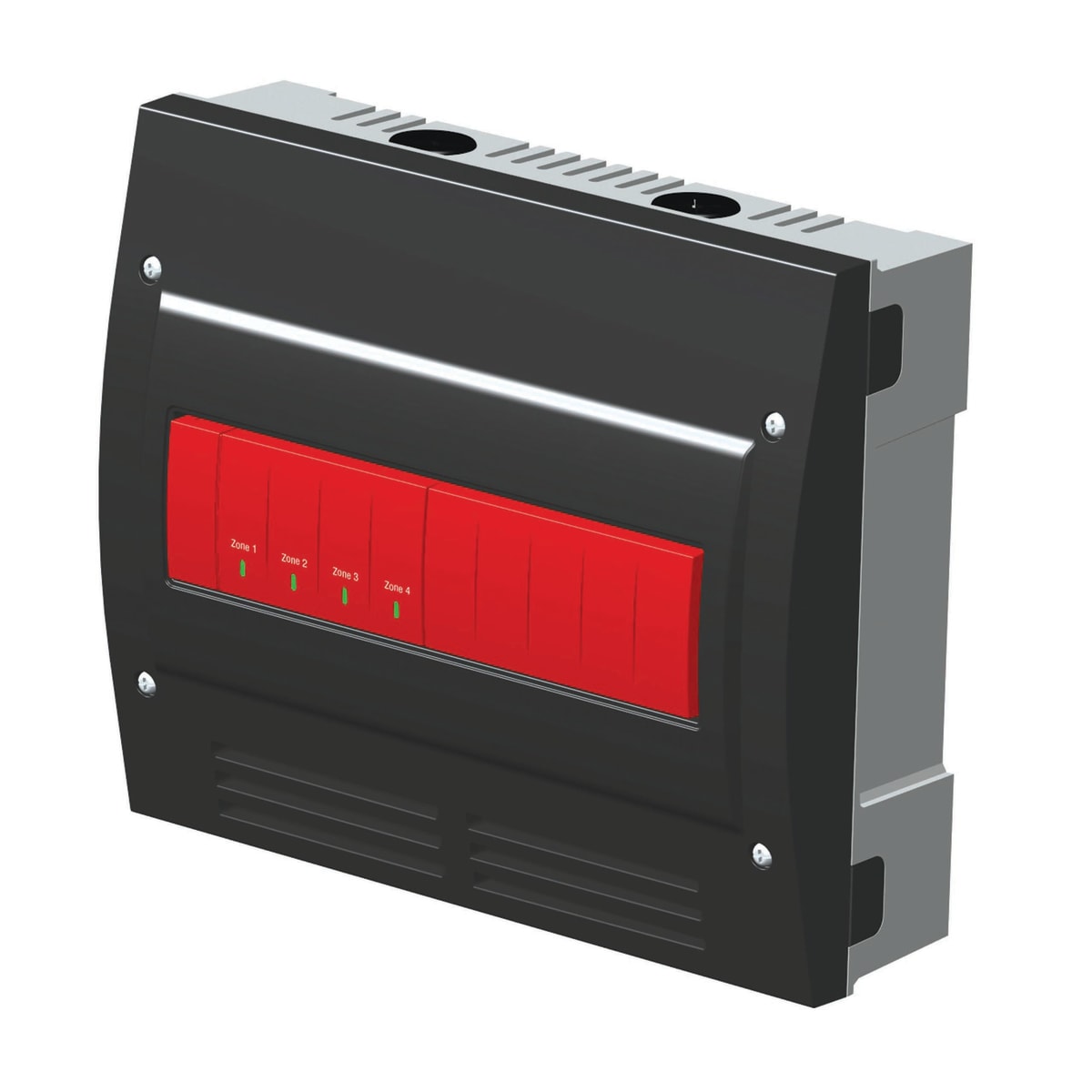

Resideo AQ25542B/U Aquatrol Zoning Panel for 4 Zones of Pumps or 2-Wire Valves

Product Description

The Resideo AQ25542B/U is an Aquatrol zoning panel designed for controlling up to four zones in hydronic heating systems. It is compatible with both AQ2000 boiler control panels and AQ1000 communicating thermostats. This zoning panel can expand to control up to sixteen zones with additional panels.

• Zoning for pumps or zone valves
• Auto testing function for zone verification
• Visual diagnostic LED indicators

Product Highlights

The zoning panel allows for seamless integration and operation of different heating zones, enhancing efficiency in temperature management.

Product Information

Standard Information

• Brand: Resideo
• Part Number: HONE-AQ25542B/U

Technical Specifications

• Color: Black, Red
• Warranty: 2 Years
• Application: Zoning control for hydronic zoning systems
• Compatible With: AQ1000 Series 2-wire thermostats, Most digital thermostats
• Approvals and Standards: CSA C/US Certified to CSA and UL Standards, File No. LR76030
• Features: Auto test function, visual diagnostics via LED lights, easy transitions between zone valves and pumps
• Product Link: Visit [here](https://www.pacificplumbing.com/Product/HONE-AQ25542B-2FU)
