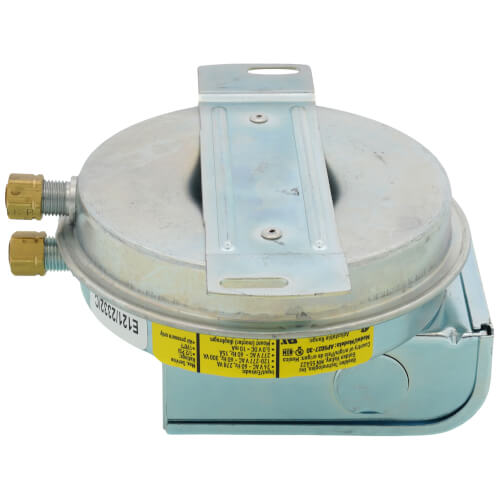

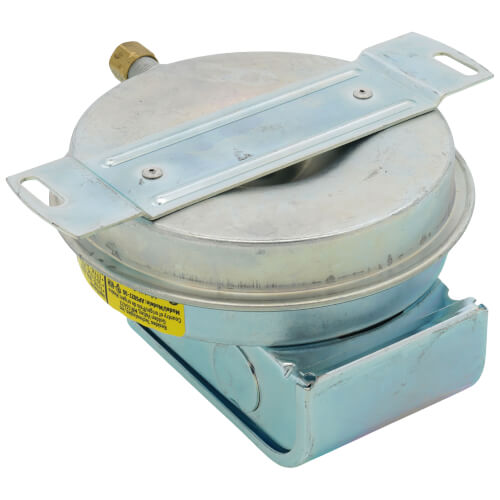

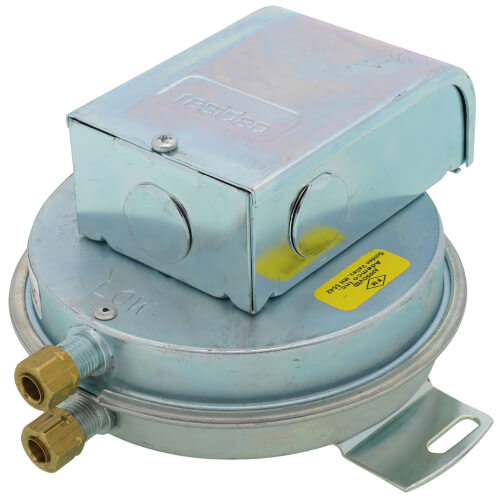

Resideo AP5027-30 Air Pressure Switch Style E121 HVAC Honeywell Pressure Controls

SKU: AP5027-30
Availability: In Stock
truck-svgrepo-com

Ships Same Day if Ordered by 12pm

$206.03
$206.03
Manuals:
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The Resideo AP5027-30 Air Pressure Switch is designed for HVAC professionals needing reliable air pressure sensing solutions. Ideal for various HVAC systems, this model senses positive, negative, or differential air pressure and offers high or low limit control with alarm functionalities or high limit shutdown with manual reset.

  • Models available with compression or barb fittings to suit different installation requirements.
  • Features SPDT contacts on automatic reset models and SPST normally closed contacts on manual reset models.
  • Encased in a durable metal box with a cover to ensure device longevity and protection.

Product Highlights

This air pressure switch supports pneumatic operation and is certified under UL, CSA, and FM, ensuring top safety and quality standards. It comes with adjustable setpoint features, making it versatile for various applications.

Product Information

Standard Information

  • Brand: Resideo Braukmann
  • MPN: AP5027-30

Technical Specifications

  • Connection Type: 1/4 inch Compression
  • Setpoint: 0.05 inch to 12.0 inch WC PR
  • Electrical Ratings: 15 Amps resistive to 277 Vac
  • Electrical Switch: SPDT
  • Max Operating Pressure: 1/2 psi
  • Switching Differential: 0.02 inch to 0.80 inch WC at maximum set point
  • Dimensions: 5.0 inches Diameter
  • Operating Temperature Range: -40 F to +190 F
Resideo AP5027-30 Air Pressure Switch Style E121 HVAC Honeywell Pressure Controls

Vendor: RESIDEO BRAUKMANN

Resideo AP5027-30 Air Pressure Switch Style E121 HVAC Honeywell Pressure Controls

$206.03

Vendor: RESIDEO BRAUKMANN

Resideo AP5027-30 Air Pressure Switch Style E121 HVAC Honeywell Pressure Controls

$206.03
