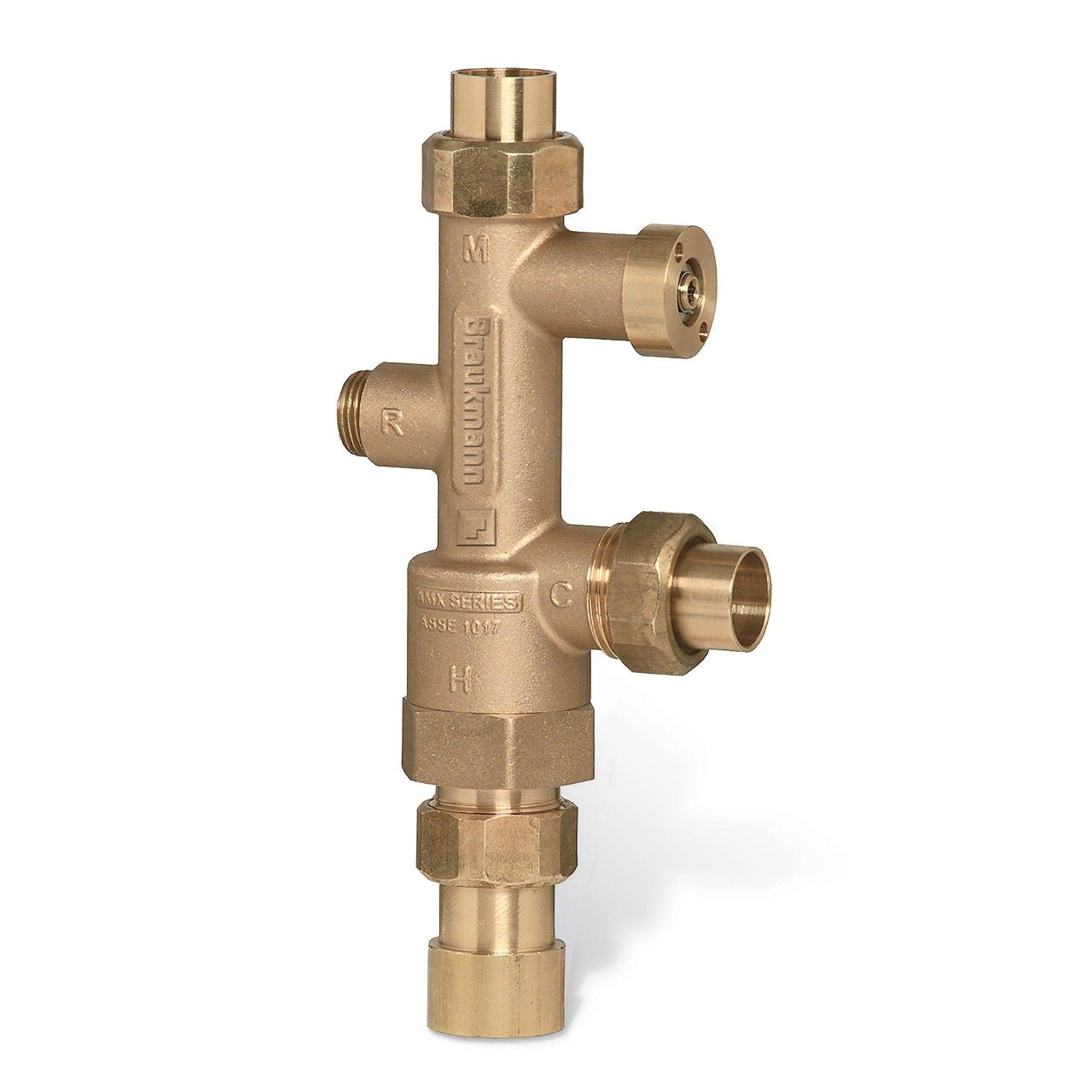

Resideo AMX101-US-1LF/U 3/4 in Union Sweat DirectConnect Mixing Valve LF

Product Description

The RESIDEO AMX101-US-1LF/U 3/4 in Union Sweat DirectConnect Mixing Valve LF is engineered for direct installation on water heater hot ports. This 3-way, dual-purpose mixing or diverting valve ensures a constant water temperature under varying operating conditions, making it ideal for domestic water systems in residential, commercial, and industrial applications. It features proportional control of hot and cold water, with flow reduction if the cold water supply is interrupted, and is adjustable using an included 3/16 in. Allen® wrench.

• Designed for direct installation on water heater hot ports, simplifying setup.
• Provides constant water temperature and proportional control for hot and cold water.
• Includes integral check valve on cold water port and recirculation connection for fast response.

Product Highlights

DirectConnect design for water heaters, ensuring stable temperature, safety, and efficient water mixing.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: AMX101-US-1LF/U
• Country of Origin: Import

Technical Specifications

• Nominal Size: 3/4 in
• Type: 3-Way
• Wireless Interconnectivity: No
• Color: Bronze
• Includes: Check Valves cold water port, 3/4 in FNPT Inlet, (2) 1/2 in Union Threaded Fittings
• US Patent: Patent Pending
• Application: Domestic water, Space heating, Radiant floor heating, Central distribution systems, Combo systems, Heat pump systems, Industrial applications
• Recirculation: Yes
• Connection Type: Sweat
• Controlled Media: Potable Water, Non Potable Water
• Approvals and Standards: ASSE 1017 Certified, CSA Listed, IAPMO Listed, The wettable surface of lead-free models contain less than 0.25% of lead by weighted average
• Product Height: 9 in, 228.6 mm
• Product Length: 4 in, 101.6 mm
• Product Width: 4 in
• Check Valve: Yes
• Cold Inlet Temperature (Min): 33 °F (0.5 °C)
• Cold Inlet Temperature (Max): 80 °F (27 °C)
• Differential Pressure (Max): 7 psi (48.3 kPa)
• Flex Connector Included: No
• Flow Coefficient: 4 Cv
• Flow Rate (Min): 0.50 gpm (1.9 lpm)
• Hot Inlet Temperature (Min): 100 °F (38 °C)
• Hot Inlet Temperature (Max): 180 °F (82 °C)
• Lead Free: Yes
• Media Temperature (Max): 200 °F (93 °C)
• Number of Check Valves: 2
• Operating Mixing Temperature (Min): 90 °F (32 °C)
• Operating Mixing Temperature (Max): 130 °F (54 °C)
• Operating Pressure (Max): 150 psi (1034 kPa)
• Seal Material: EPDM Rubber
• Valve Body Material: Nickel-plated Brass, Bronze
• Nominal Diameter: DN20
• Number of Connections: 4
• Domestic / Import: Import
• End Style: C Union
• Finish: PTFE Coated
• Manufacturer: Resideo Technologies
• Series: AMX
