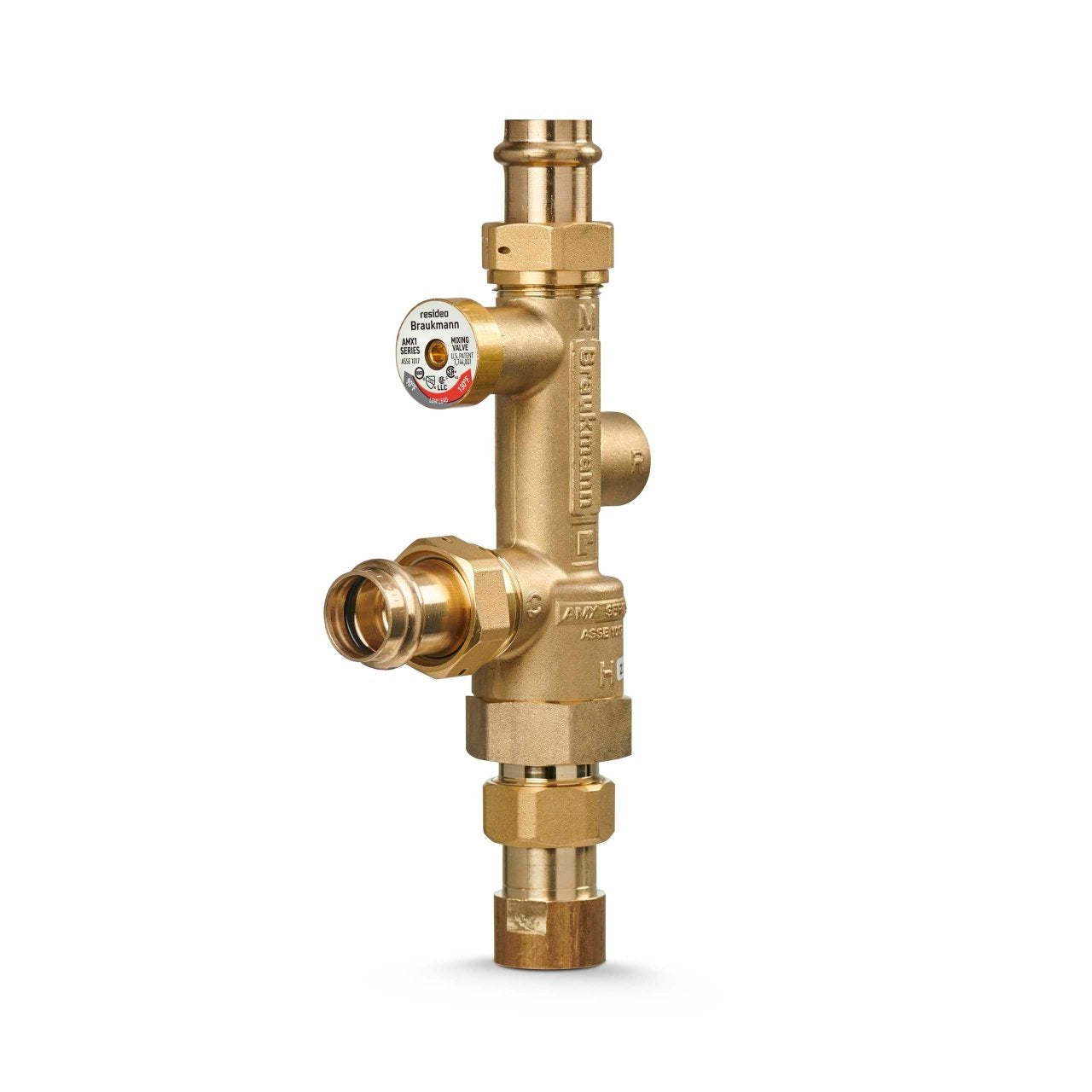

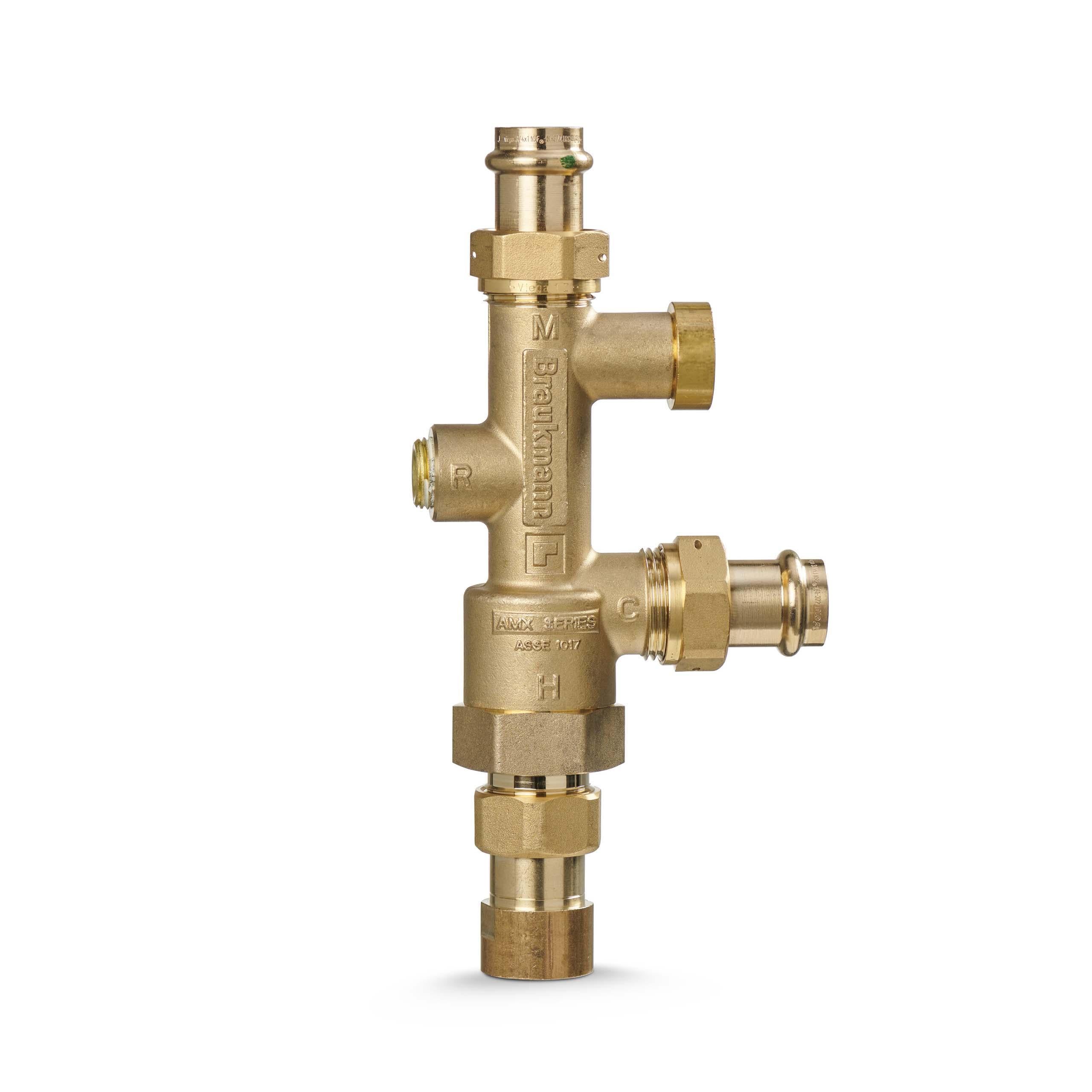

Resideo AMX101-UP-1LF/U Directconnect Union Pro Press 3/4 In

Product Description

The RESIDEO AMX101-UP-1LF/U is a 3/4 inch Directconnect Union Pro Press valve designed for direct installation on water heater hot ports. This 3-Way mixing or diverting valve ensures constant water temperature under varying operating conditions. It features proportional control of hot and cold water, with flow reduction in seconds if the cold water supply is interrupted. The valve includes union coupled tailpiece connections and does not require heat trapping.

• Designed for direct installation on the water heater hot port.
• Dual purpose mixing or diverting valve functionality.
• Maintains constant water temperature under different operating conditions.

Product Highlights

Ensures constant water temperature, prevents scalding, and offers quick response with recirculation capabilities.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: AMX101-UP-1LF/U
• Country of Origin: Mexico

Technical Specifications

• Size: 3/4"
• Type: 3-Way
• Wireless Connectivity: No
• Includes: 3/4 in FNPT Inlet, 2 3/4 in Union Pro Press fittings
• Application: Heat Pump Systems, Domestic water, Nursing homes, Public facilities, Automatic faucets, Radiant floor heating, Space heating, Combo systems, Solar hot water, Greenhouses, Industrial applications, Photo processing
• Recirculation: Yes
• Connection Type: Press
• Controlled Media: Potable Water, Non Potable Water
• Approvals And Standards: ASSE 1017 Certified, CSA Certified, IAPMO Listed, NSF/ANSI Listed, The wettable surface of lead-free models contain less than 0.25% of lead by weighted average
• Maximum Safe Operating Pressure: 150 psi (1034 kPa)
• Maximum Pressure Differential: 7 psi (48 kPa)
• Minimum Flow Rate: 0.5 gpm (1.9 lpm)
• Pipe Size: 3/4 in (DN20)
• Fluid Temperature (Cold Inlet): 4 C to 27 C (39 F to 80 F)
• Fluid Temperature (Hot Inlet): 49 C to 82 C (120 F to 180 F)
• Fluid Temperature (Mixed Outlet): 21 C to 63 C (70 F to 145 F)
• Capacity: 4 Cv
• Valve Type: Mixing Valves
• Lead Content: <0.25% by weighted average
