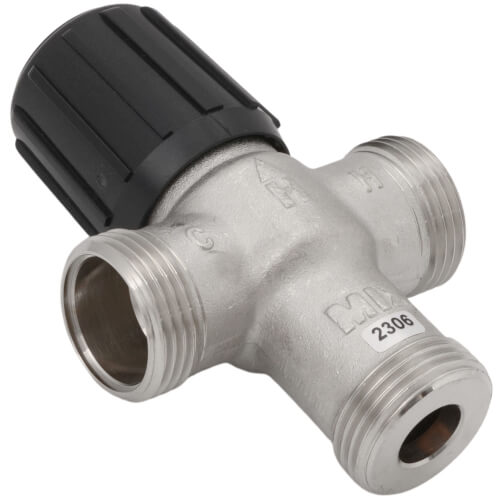

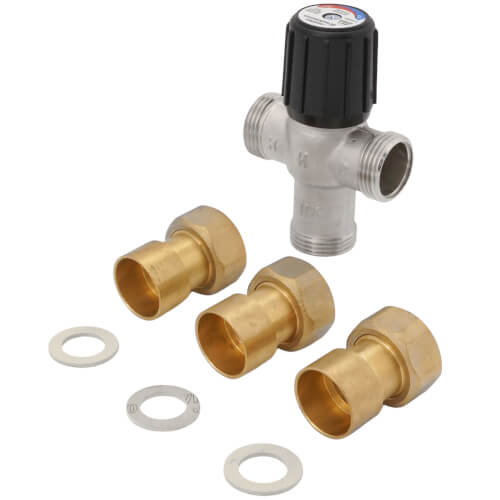

Resideo AM102R-US-1 1 Union Sweat Mixing Valve 70-180F U.S. Patent 6079625 Heating Only

Product Description

The Resideo AM102R-US-1 1 Union Sweat Mixing Valve is engineered to maintain and regulate hot water temperature in heating systems. It ensures a safe temperature range and optimal performance in various applications.

• Manages hot water temperature
• Ensures scald protection and bacteria control
• Compatible with heating systems

Product Highlights

This mixing valve by Resideo is designed for both mixing and diverting. It offers constant water temperature even with changing conditions and reliable performance with a minimum flow of 0.5 gpm. The valve is built with nickel-plated brass and EPDM O-rings for durability.

Product Information

Standard Information

• Brand: Resideo
• MPN: AM102R-US-1

Technical Specifications

• Connection Type: Union Sweat
• Pipe Size: 1 inch
• Operating Temperature Range: 70-180 F
• Capacity: 3.9 Cv
• Maximum Pressure: 150 psi
• Material: Nickel-plated brass, EPDM O-rings
• Country of Origin: United States
• Patent: U.S. Patent No. 6,079,625
