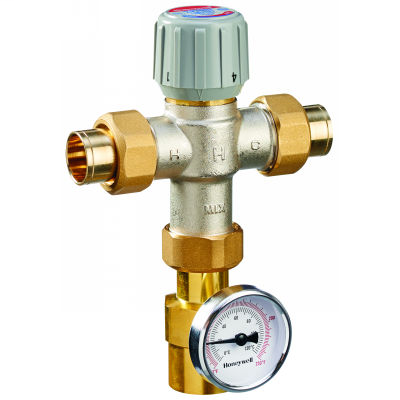

Resideo AM102-USTG-1LF/U Thermostatic Mixing Valve 1 Inch

Product Description

The RESIDEO AM102-USTG-1LF/U is a 1-inch thermostatic mixing valve designed to adjust, maintain, and limit hot water delivery temperature in residential plumbing systems. It operates across a temperature range of 70 to 145 degrees F and includes a union connection set and an integrated temperature gauge for direct readout at the valve. Low-lead construction meets current potable water requirements. Licensed plumbers install this valve on domestic hot water systems to provide anti-scald and anti-chill protection at the point of distribution or at water heater outlets.

This valve is suited for residential hot water systems where precise temperature control is required at fixtures, mixing points, or storage tank outlets. The AM-1 series design blends hot and cold supplies to deliver a stable mixed output temperature, increasing the volume of safe, usable hot water available from the system without raising storage temperatures to unsafe levels. The union connections simplify installation and future serviceability without cutting into adjacent piping.

Key Features

• Temperature range: 70 to 145 degrees F for flexible setpoint adjustment
• Integrated temperature gauge provides direct visual confirmation of mixed output temperature
• Union connections included for easier installation and future removal
• Low-lead construction meets potable water compliance requirements
• Anti-scald and anti-chill protection for domestic hot water distribution
• 1-inch valve size suitable for residential whole-system mixing applications

Compatibility

Designed as an OEM-style thermostatic mixing valve for residential domestic hot water systems requiring a 1-inch low-lead mixing valve with union connections and temperature gauge.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off the water supply and relieve system pressure before beginning work. The valve body includes directional flow markings that must be observed during installation. Do not exceed the rated temperature and pressure limits of the valve or connected piping components.

Technical Specifications

• Connection Size: 1 inch
• Temperature Range: 70 to 145 degrees F
• Connection Type: Union
• Included Accessories: Temperature gauge
• Lead Compliance: Low-lead
• UPC: 085267979429

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: AM102-USTG-1LF/U
