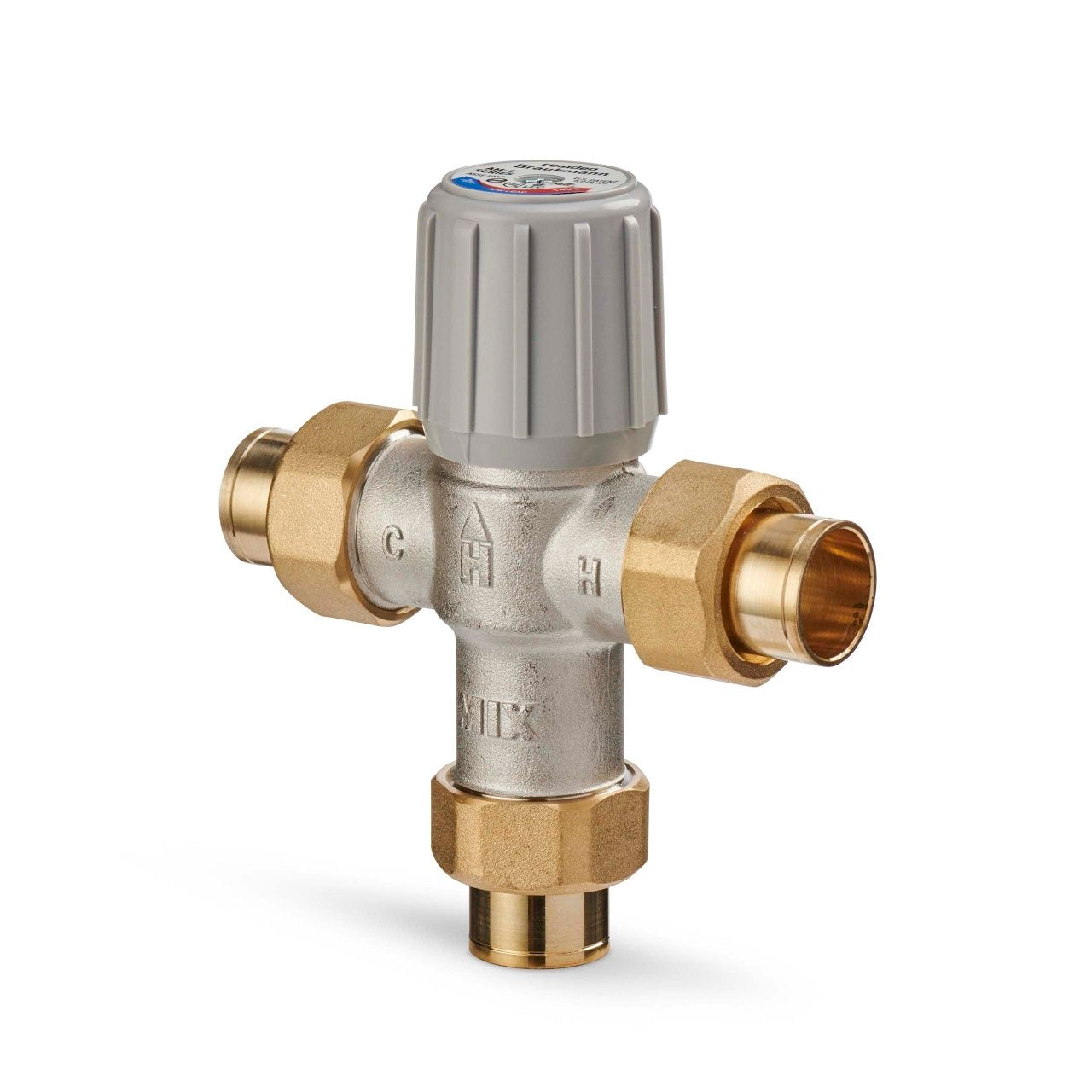

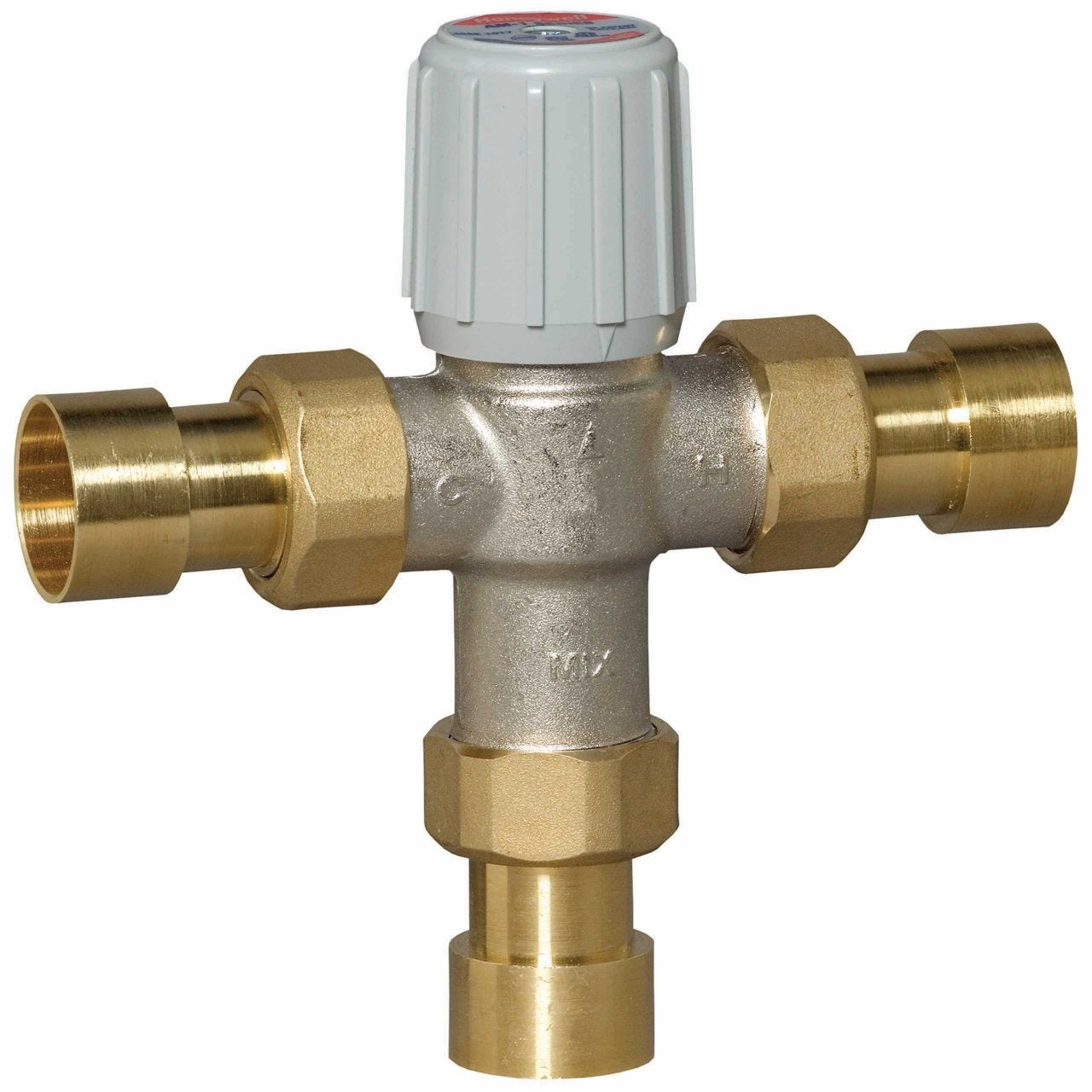

Resideo AM102-US-1LF/U 1 in Union Sweat Mixing Valve LF - STD

Product Description

The RESIDEO AM102-US-1LF/U mixing valve accurately adjusts, maintains, and limits hot water temperature to a user-selected setting. This 3-way union sweat valve, designed for potable and non-potable water, increases usable hot water by raising the water heater storage temperature while limiting mixed outlet water to a safe level. It includes check valves on hot and cold inlets and is ASSE 1017, CSA, and IAPMO listed.

• Accurately adjusts, maintains, and limits hot water temperature to a desired setting.
• Provides more usable hot water by optimizing water heater storage temperature.
• Includes check valves on hot and cold inlets for enhanced control and safety.

Product Highlights

Raises water heater storage temperature and limits mixed outlet water temperature to a safe level, ensuring comfort and safety.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: AM102-US-1LF/U

Technical Specifications

• Connection Size: 1"
• Type: 3-Way
• Wifi: No
• Color: Metallic
• Includes: Check Valves on Hot and Cold Inlets
• US Patent: No. 6,079,625
• Application: Domestic Water|Nursing Homes|Public Facilities|Automatic Faucets|Radiant Floor Heating|Space Heating|Combo Systems|Solar Hot Water|Greenhouses|Industrial Applications|Photo Processing
• ReCirculation: No
• Connection Type: Sweat
• Controlled Media: Potable Water|Non Potable Water
• Approvals and Standards: ASSE 1017 Certified|CSA Listed|IAPMO Listed
• Wireless Interconnectivity: No
• Product Height: 6.3 in
• Product Length: 6.5 in
• Adjustment Means: Handwheel
• Cold Inlet Temperature (Min): 39 °F
• Cold Inlet Temperature (Max): 80 °F
• Flex Connector Included: No
• Flow Coefficient: 3.9 Cv
• Flow Rate (Min): 0.50 gpm
• Hot Inlet Temperature (Min): 120 °F
• Hot Inlet Temperature (Max): 180 °F
• Lead Free: Yes
• Media Temperature (Max): 212 °F
• Number of Check Valves: 2
• Operating Mixing Temperature (Min): 70 °F
• Operating Mixing Temperature (Max): 145 °F
• Operating Pressure (Max): 150 psi
• Seal Material: EPDM Rubber
• Valve Body Material: Teflon-coated, Nickel-plated Brass
• Accessories: AM102-SB/U, AM-1-025RP/U, AM1-TG102-US-LF/U
• Nominal Diameter: DN25
• Number of Connections: 3
• Valve Body Pattern: Straight Through
• Domestic / Import: Import
• End Style: C Union
• Finish: Nickel Plated
• Inlet to Outlet Length: 6.1 in
