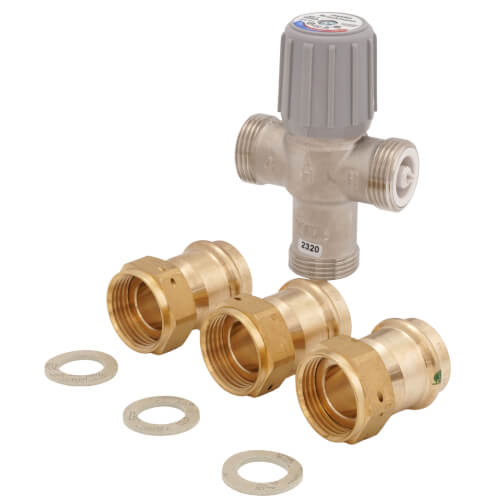

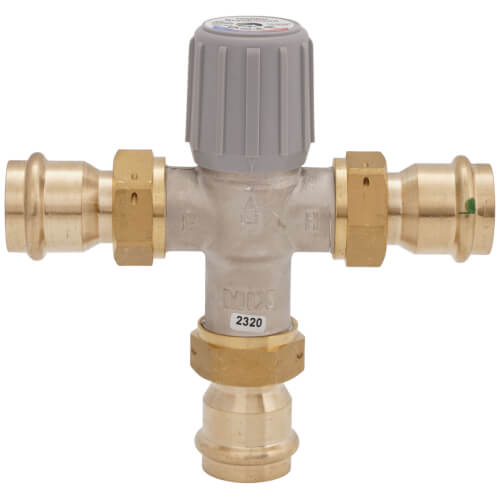

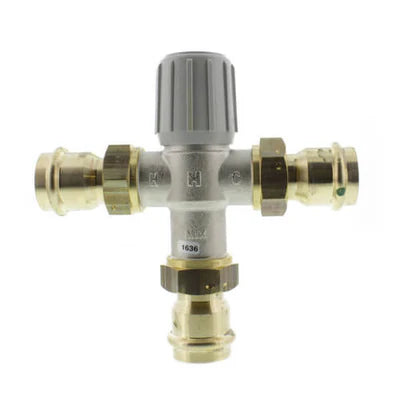

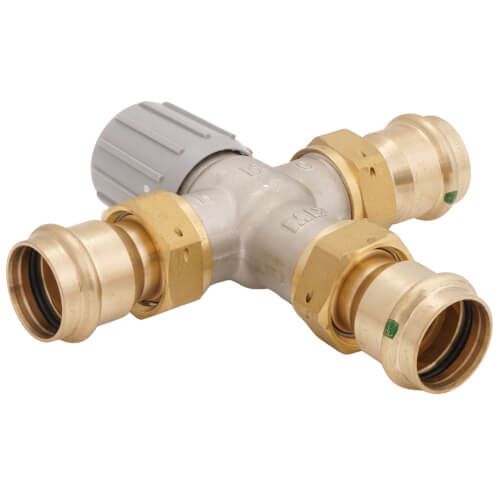

Resideo AM102-UP-1LF AM-1 Series Union Press Thermostat Mixing Valve

Product Description

The Resideo AM102-UP-1LF AM-1 Series Union Press Thermostat Mixing Valve is designed for precise temperature control in water systems. This valve is suitable for both commercial and residential applications, ensuring consistent water temperature and providing anti-scald protection.

• Lead-free brass construction for safety and durability.
• Capable of handling pressures up to 150 psi and temperatures up to 212 degrees Fahrenheit.
• Union connections allow for straightforward installation and maintenance.

Product Highlights

The Resideo AM102-UP-1LF features a robust design with nickel-plated brass and EPDM O-rings, ensuring longevity and performance in various water conditions. Its tamper-resistant setup maximizes safety, making it an excellent choice for applications requiring reliable temperature control.

Product Information

Standard Information

• Brand: Resideo
• MPN: AM102-UP-1LF

Technical Specifications

• Connection Type: Press x Press
• Temperature Range: 70 degrees Fahrenheit to 145 degrees Fahrenheit
• Maximum Pressure: 150 psi
• Flow Capacity: 3.2 Cv
• Dimensions: Length: 6 inches, Width: 3.95 inches, Height: 3.8 inches
• Weight: 2.37 pounds
