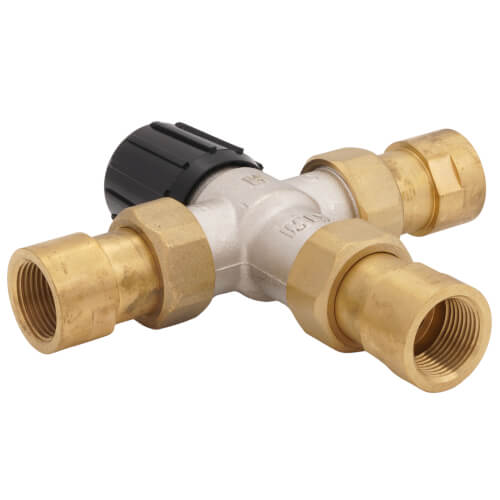

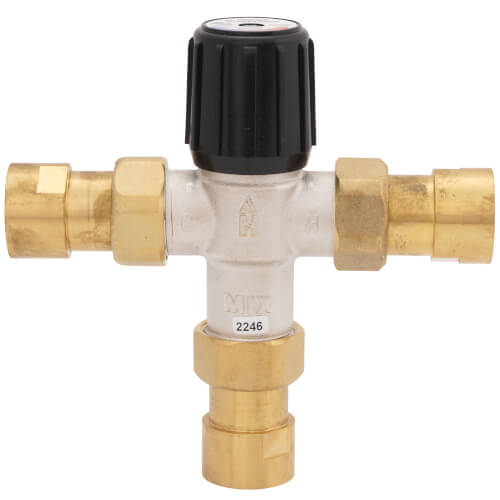

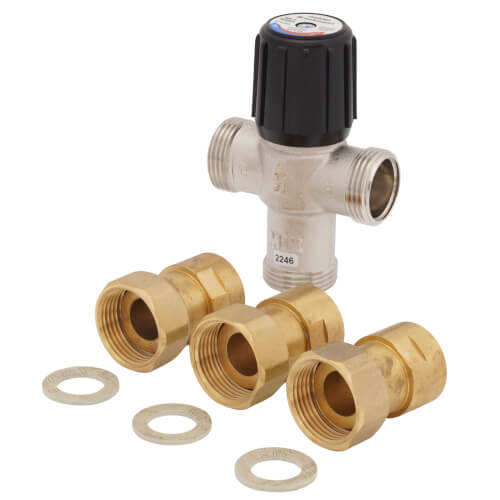

Resideo AM101R-UT-1 3/4 inch Union Mixing Valve 70-180F NPT

Product Description

The Resideo AM101R-UT-1 is a 3/4 inch NPT union mixing valve, designed for both heating and plumbing systems. It maintains and limits water temperature to the desired setting efficiently.

• Robust dual purpose mixing or diverting valve functionality.
• Automatic temperature maintenance with minimal flow requirement.
• Constructed from durable nickel-plated brass and thermoplastic components.

Product Highlights

This union NPT valve is essential for ensuring consistent water temperature across varied applications. Suitable for residential, industrial, and commercial setups, it supports applications like radiant floor heating and space heating.

Product Information

Standard Information

• Brand: Resideo Braukmann
• Material: Nickel-plated brass, EPDM O-rings

Technical Specifications

• Weight: 2.68 pounds
• Dimensions: Length 5.88 inches; Width 3.63 inches; Height 3.63 inches.
• Pressure Rating: Max. 150 psi
• Temperature Range: 70°F to 180°F
• Connection Type: FNPT x FNPT
• Flow Capacity (Cv): 3.9
