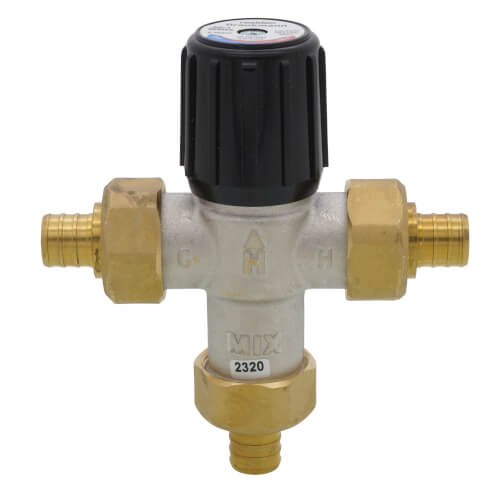

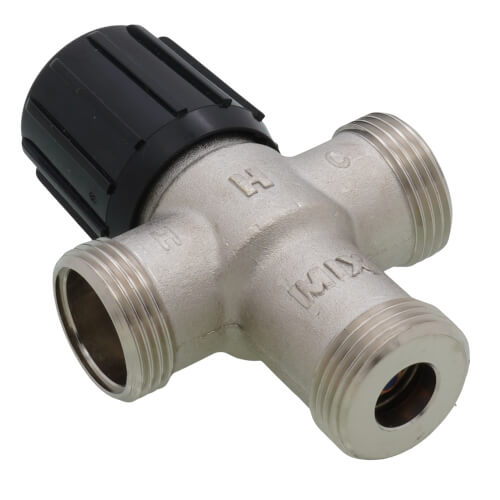

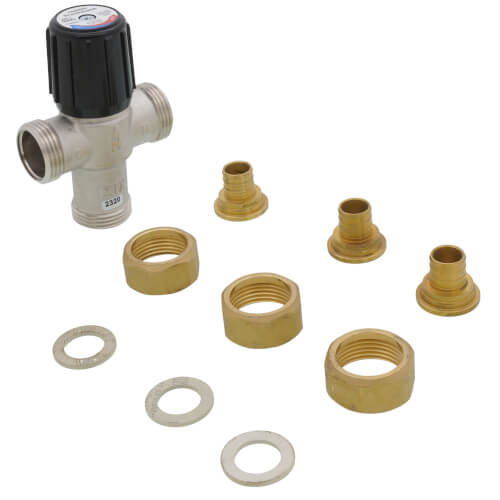

Resideo AM101R-UPEX-1 Union PEX Mixing Valve 3/4 Inch 70-180°F

Product Description

The Resideo AM101R-UPEX-1 is a highly effective 3/4 inch Union PEX mixing valve, ideal for both heating and domestic water systems. This valve offers precise temperature control, ensuring safety and efficiency in plumbing applications.

• Integrates dual-functionality allowing for both mixing and diverting of water.
• Constructed with nickel-plated brass and EPDM O-rings to ensure durability.
• Temperature settings are easily adjustable, catering to various use cases.

Product Highlights

Equipped with a high-performance thermoplastic proportioning shuttle, the AM101R-UPEX-1 valve operates reliably even at minimum flow rates of 0.5 gpm.

Product Information

Standard Information

• Max Working Pressure: 150 psi
• Max Temperature Capability: 212 degrees Fahrenheit

Technical Specifications

• Valve Type: Mixing and Diverting
• Construction Material: Nickel-plated brass, EPDM O-rings
• Temperature Range: 70 to 180 degrees Fahrenheit
• Connection Type: PEX Crimp x PEX Crimp
• Standards Met: ASSE 1017, CSA, IAPMO listed
