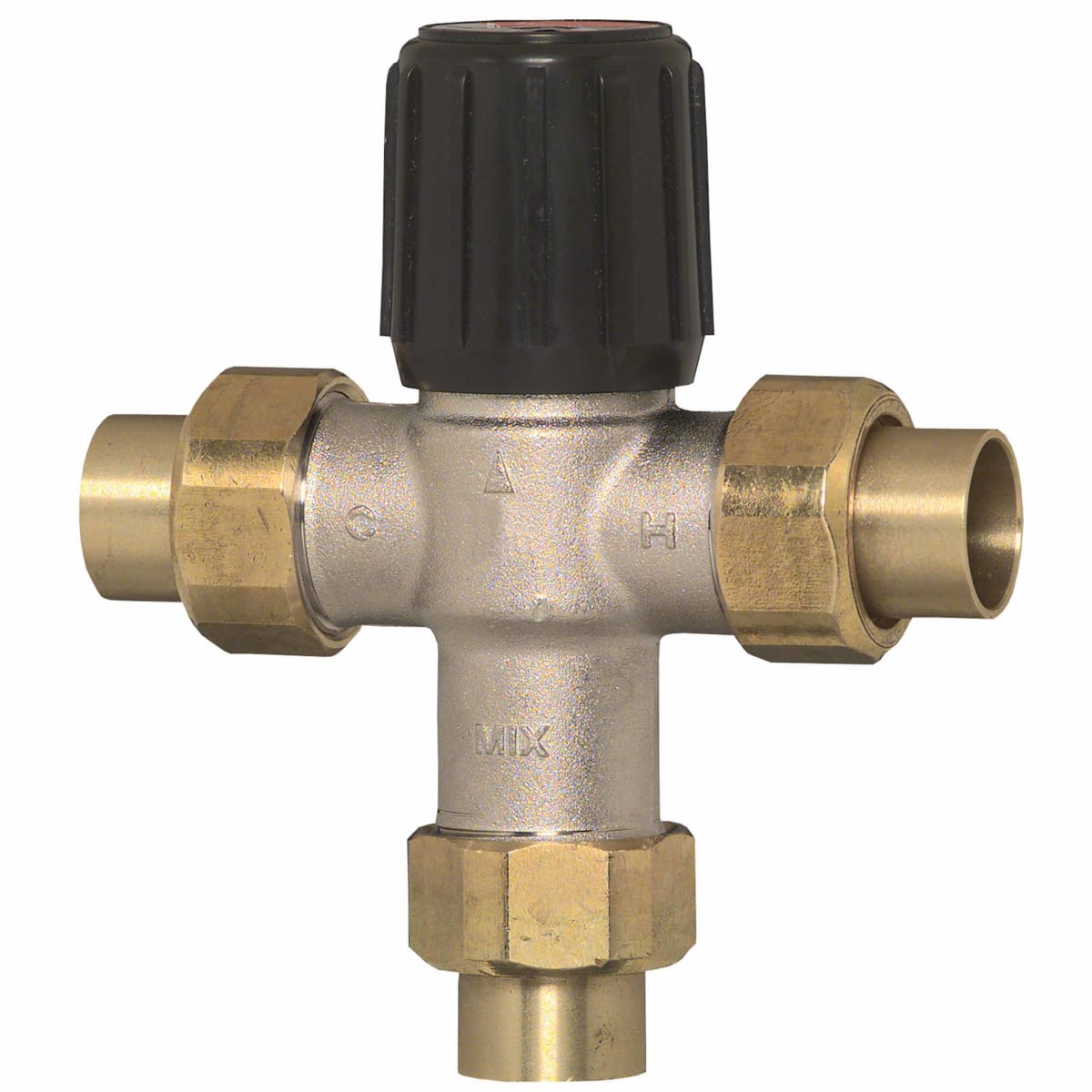

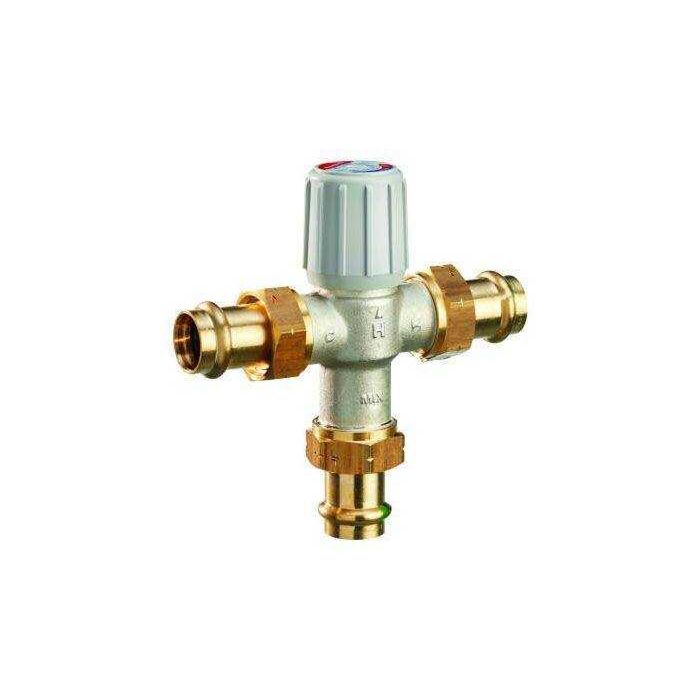

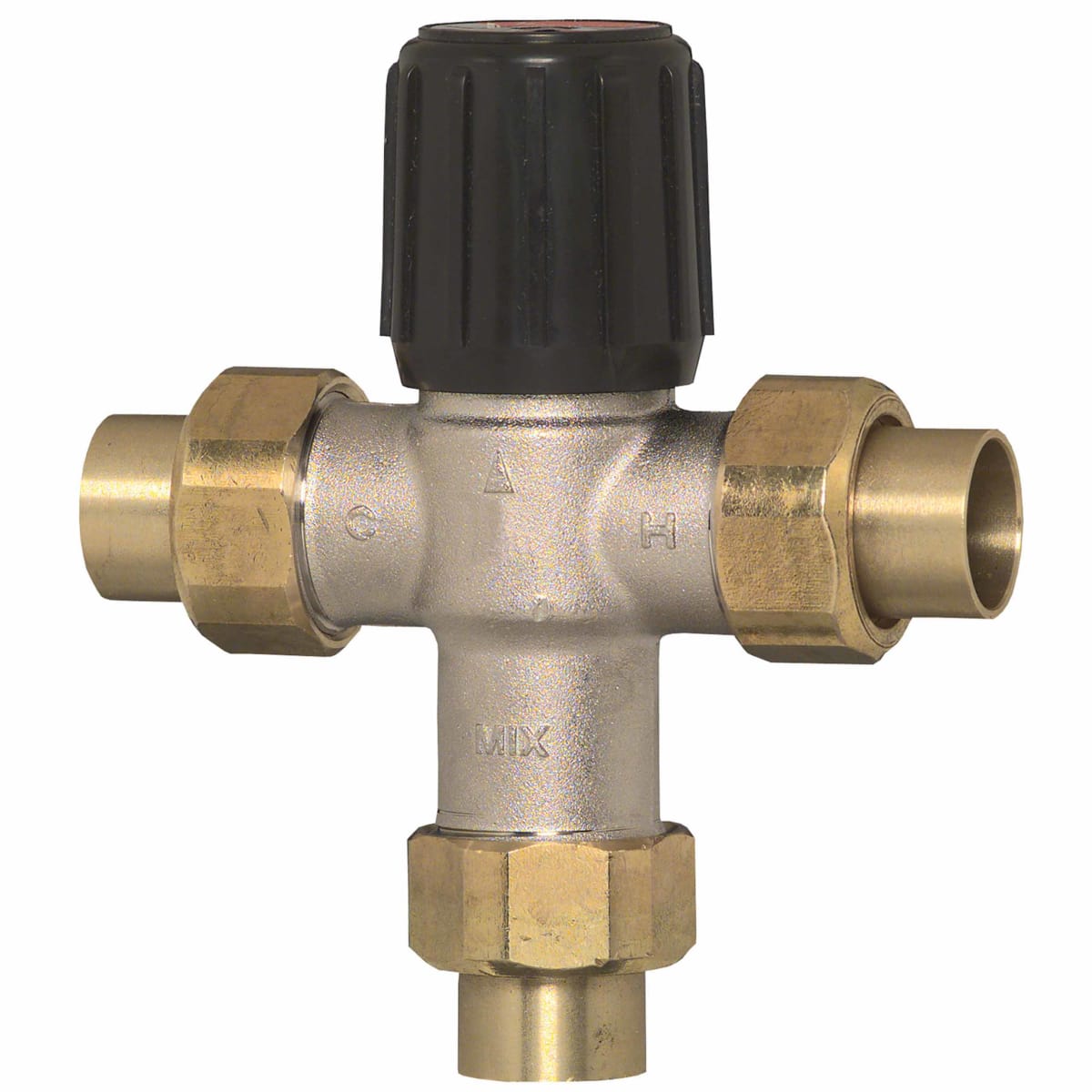

Resideo AM101R-UP-1/U 3/4 in union propress mixing valve r heat only

Product Description

The RESIDEO AM101R-UP-1/U is a thermostatic mixing valve designed for precise temperature regulation in heating-only applications. This 3/4 inch Union ProPress valve adjusts, maintains, and limits hot water temperatures, making it suitable for radiant and boiler systems. It ensures constant water temperature under changing operating conditions and includes check valves on hot and cold inlets for controlled media flow of non-potable water.

• Precise temperature regulation for hot water systems.
• Adjusts, maintains, and limits hot water temperatures.
• Includes check valves on hot and cold inlets.

Product Highlights

Designed for heating only applications like radiant and boiler systems, ensuring precise hot water temperature control and constant output.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: AM101R-UP-1/U
• Country of Origin: USA

Technical Specifications

• Nominal Size: 3/4 Inch
• Type: Thermostatic, Straight-Through
• End Connection: Union ProPress
• Controlled Media: Non Potable Water
• Application: Domestic Water, Nursing Home, Public Facility, Automatic Faucet, Radiant Floor Heating, Space Heating, Combo System, Solar Hot Water, Greenhouse, Industrial Application, Photo Processing
• US Patent: No. 6,079,625
• Series/Model: AM-1
• End to End Distance: 6.3 Inch
• Base to Inlet Dimension: 3.6 Inch
• Inlet to Mixing Outlet Dimension: 3.6 Inch
• Body Material: Non-Stick Coated Nickel Plated Brass
• Finish: PTFE Coated
• Flow Rate: 0.5 to 12 GPM
• Temperature Rating: 212 Deg F (Max), 70 to 180 Deg F (Operating)
• Pressure Rating: 150 PSI
• Inclusions/Features: Check Valves on Hot and Cold Inlets, Anti-Scald, Anti-Chill Protection, Proportional Valve, Dual Purpose Mixing or Diverting Valve, Tamper Resistant Design, O-Ring EPDM Rubber
• Applicable Standard: CSA (Canada and US), ASSE, IAPMO, UPC
• Flow Capacity (Cv): 3.9
• Softgoods Material: EPDM Rubber
