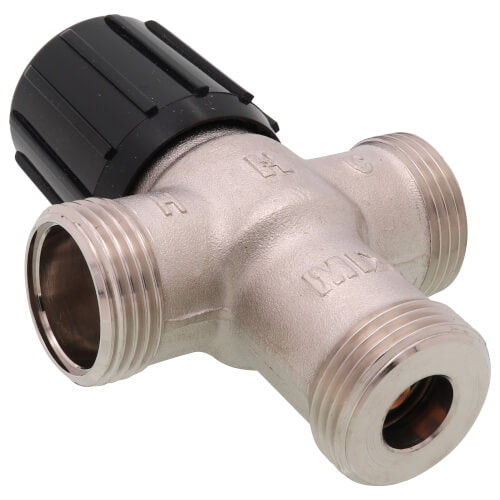

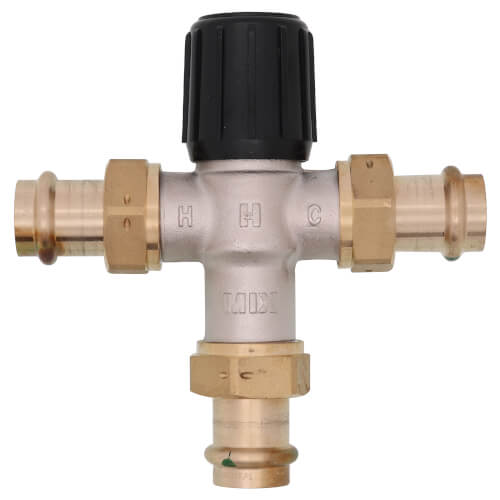

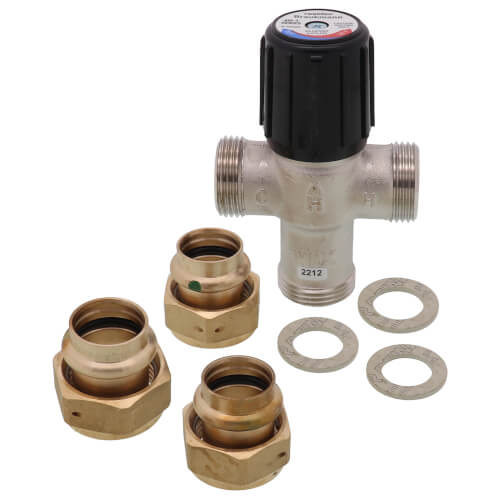

Resideo AM101R-UP-1 Thermostat Mixing Valve for Professional Plumbing

Product Description

The Resideo AM101R-UP-1 is a 3/4 inch Union Press Thermostat Mixing Valve designed for plumbing systems needing temperature control. This valve from the well-established brand Resideo ensures consistent performance in both residential and commercial settings.

• Dual-purpose capability for mixing or diverting operations
• Maintains steady water temperature under varying conditions
• Robust brass construction with a maximum pressure of 150 psi

Product Highlights

AM101R-UP-1 stands out for its reliable hot water temperature regulation, offering anti-scald and anti-chill protection. It's characterized by a tamper-resistant design, sealed with nickel-plated brass and EPDM O-rings.

Product Information

Standard Information

• Brand: Resideo Braukmann
• MPN: AM101R-UP-1

Technical Specifications

• Maximum Temperature: 212 degrees Fahrenheit (100 degrees Celsius)
• Minimum Flow: 0.5 gallons per minute
• Connection Type: Press
• Temperature Range: 70°F - 180°F
• Size: 3/4 inch
• Weight: 2.2 pounds
• Dimensions (LxWxH): 6 inches x 3.7 inches x 3.5 inches
