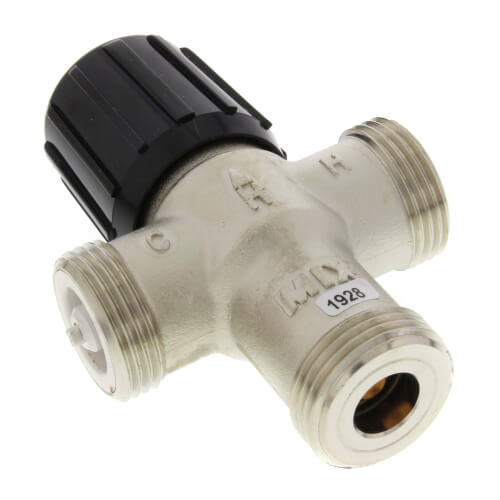

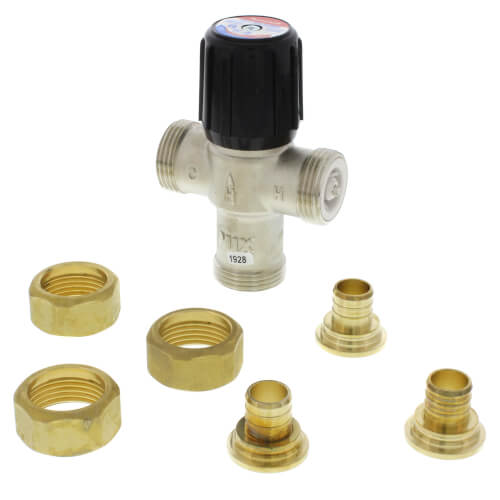

Resideo AM101C1070-UPEX-1LF 3/4 Union PEX 70-120F Mix Valve

Product Description

The Resideo AM101C1070-UPEX-1LF is a three-quarter inch union PEX mixing valve designed for temperatures between seventy and one hundred twenty degrees Fahrenheit. This mixing valve adjusts and maintains hot water temperature settings, ensuring comfort while protecting plumbing fixtures. It enhances the efficiency of hot water usage and prevents scalding.

• Certified to ASSE 1070 plumbing standards
• Designed with a color-coded hand-wheel to prevent unauthorized adjustments
• Teflon coating to minimize mineral buildup

Product Highlights

This mixing valve is essential for applications in homes and public facilities, providing safety and comfort.

Product Information

Standard Information

• Type: Mixing Valve
• Application: Point of Use, Point of Source
• Lead Free: Yes
• Connection Type: Union PEX

Technical Specifications

• Operating Temperature Range (F): 70 to 120
• Pipe Size (inch): 3/4
• Flow Capacity (Cv): 1.8
• Approval Standards: ASSE 1070
• Typical Applications: Showers, sinks, Roman tubs, and whirlpools
