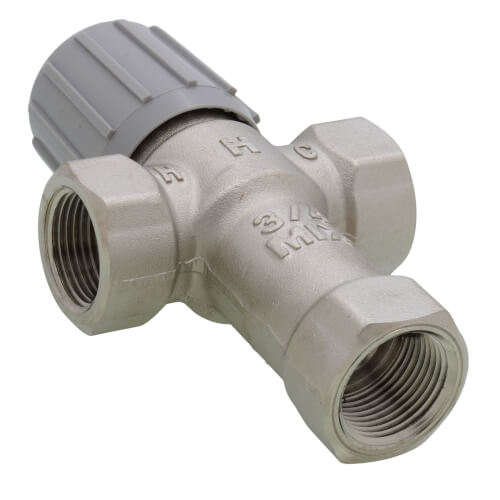

Resideo AM101C-1LF 3/4 NPT Mixing Valve LF C

Product Description

Introducing the Resideo AM101C-1LF, a precision-engineered 3/4 inch NPT mixing valve, ideally suited for a variety of industrial and residential applications. This valve ensures the safe regulation of water temperatures, protecting against scalding and promoting efficient energy use.

• Lead-free construction enhances safety and compliance.
• Dual functionality as both mixing or diverting valve.
• Robust nickel-plated brass construction with EPDM O-rings.

Product Highlights

The AM101C-1LF valve is renowned for its reliable performance across a wide temperature range of 70 to 120 degrees Fahrenheit, and it's equipped with a high-performance thermoplastic proportioning shuttle.

Product Information

Standard Information

• Connection Type: FNPT x FNPT
• Max Pressure: 150 PSI

Technical Specifications

• Max Temp: 212°F
• Flow Capacity: 3.8 Cv
• Weight: 1.71 pounds
• Dimensions: Length: 6.15 inches, Width: 3.65 inches, Height: 3.65 inches
