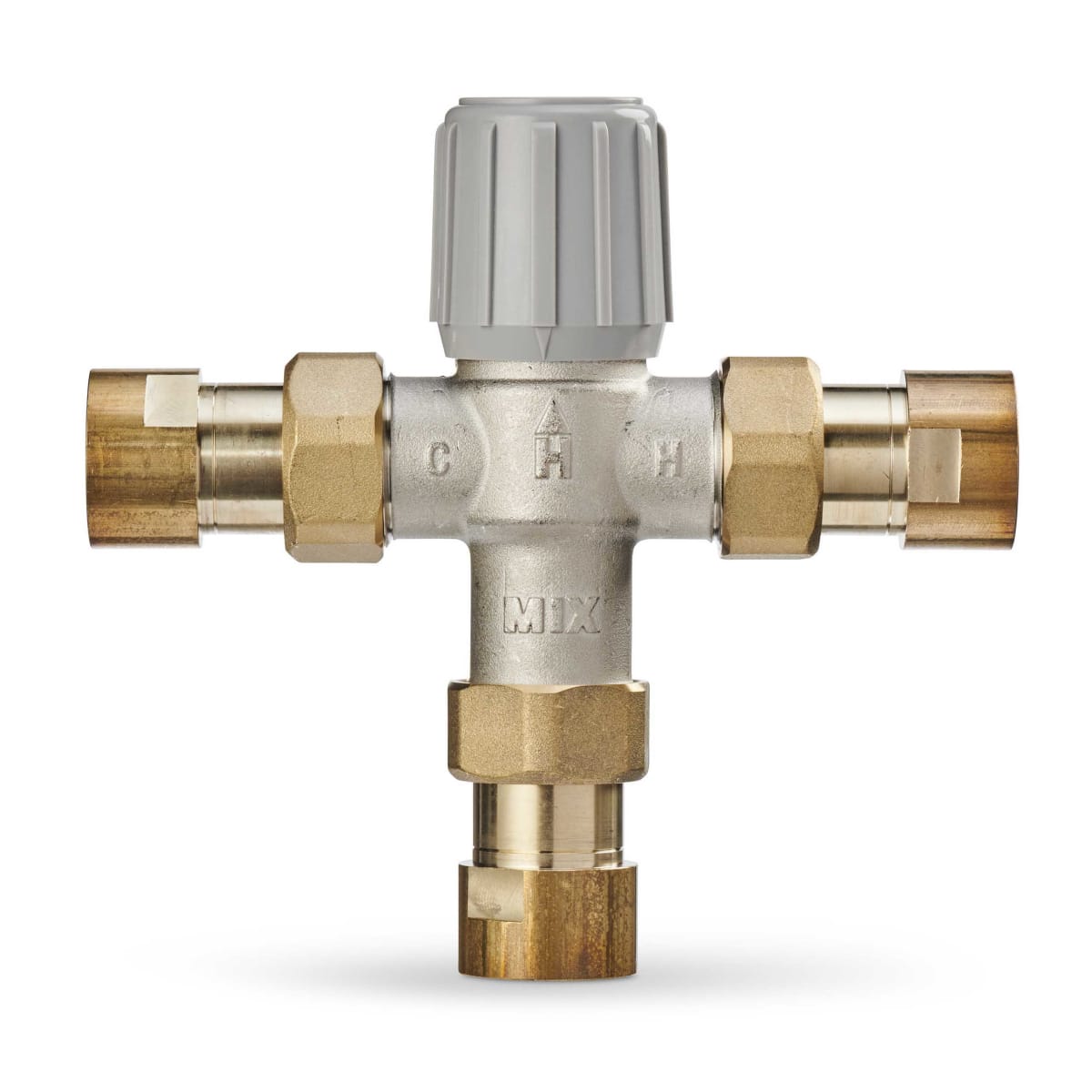

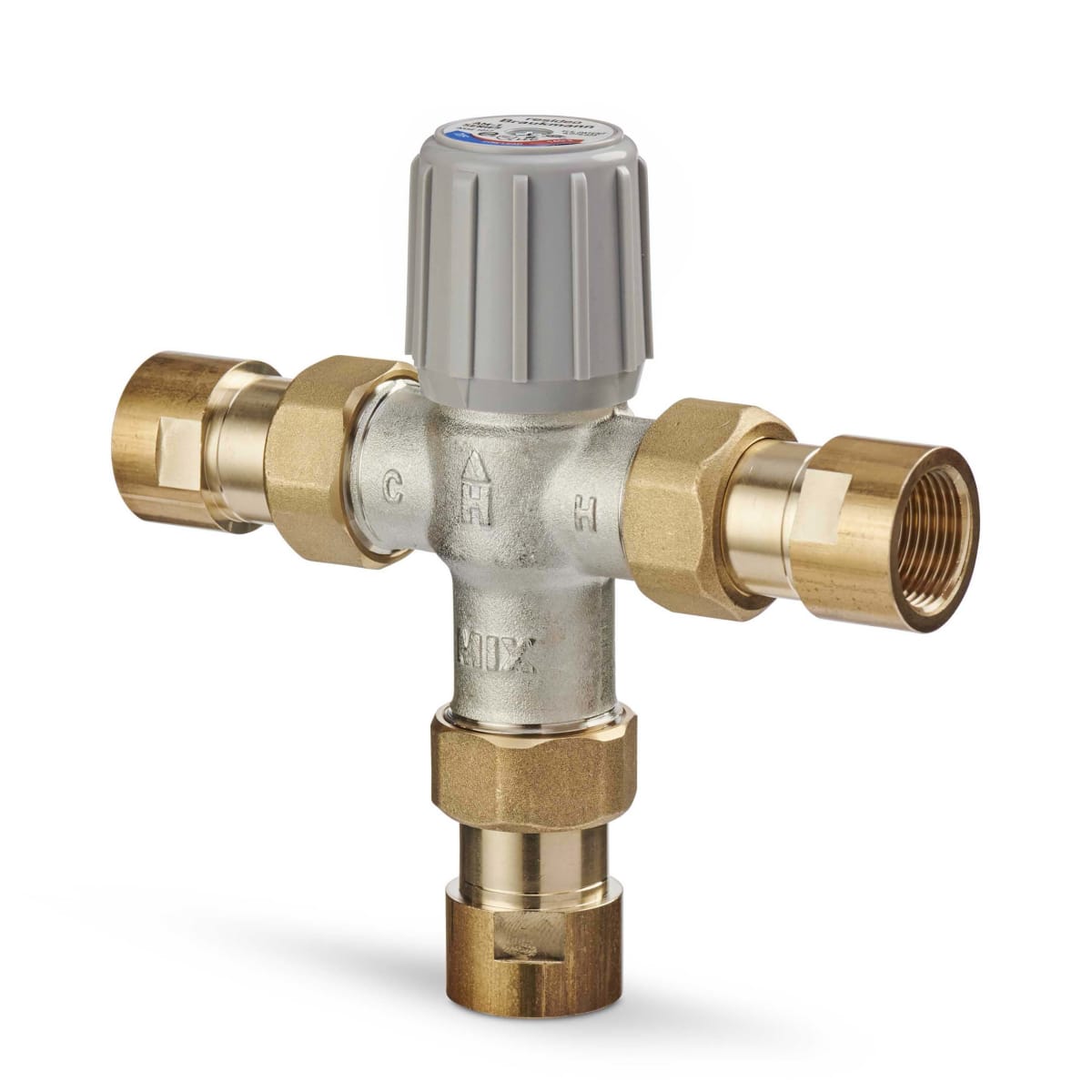

Resideo AM101-UT-1LF/U 3/4 in Union NPT Mixing Valve - STD

Product Description

The Resideo AM101-UT-1LF/U is a three-way mixing valve designed for controlling water temperature efficiently. This valve works by adjusting and maintaining the hot water temperature to a user-selected level. The AM100 series, including this model, increases available hot water while ensuring that mixed outlet temperature stays safe.

• Increases usable hot water by raising storage temperature.
• Limits mixed outlet water to a safe temperature.
• Ideal for domestic, residential, and commercial applications.

Product Highlights

This mixing valve is effective for various installations including radiant floor heating, nursing homes, and public facilities.

Product Information

Standard Information

• Brand: Resideo
• Part Number: AM101-UT-1LF/U

Technical Specifications

• Size: 3/4 inch
• Type: 3-Way
• Connection Type: MIP
• Warranty: 1 Year
• Approvals and Standards: ASSE 1017 Certified, CSA Listed, IAPMO Listed
• Application: Domestic Water, Nursing Homes, Public Facilities, Automatic Faucets, Radiant Floor Heating, Space Heating, Combo Systems, Solar Hot Water, Greenhouses, Industrial Applications, Photo Processing
• Controlled Media: Potable Water, Non Potable Water
