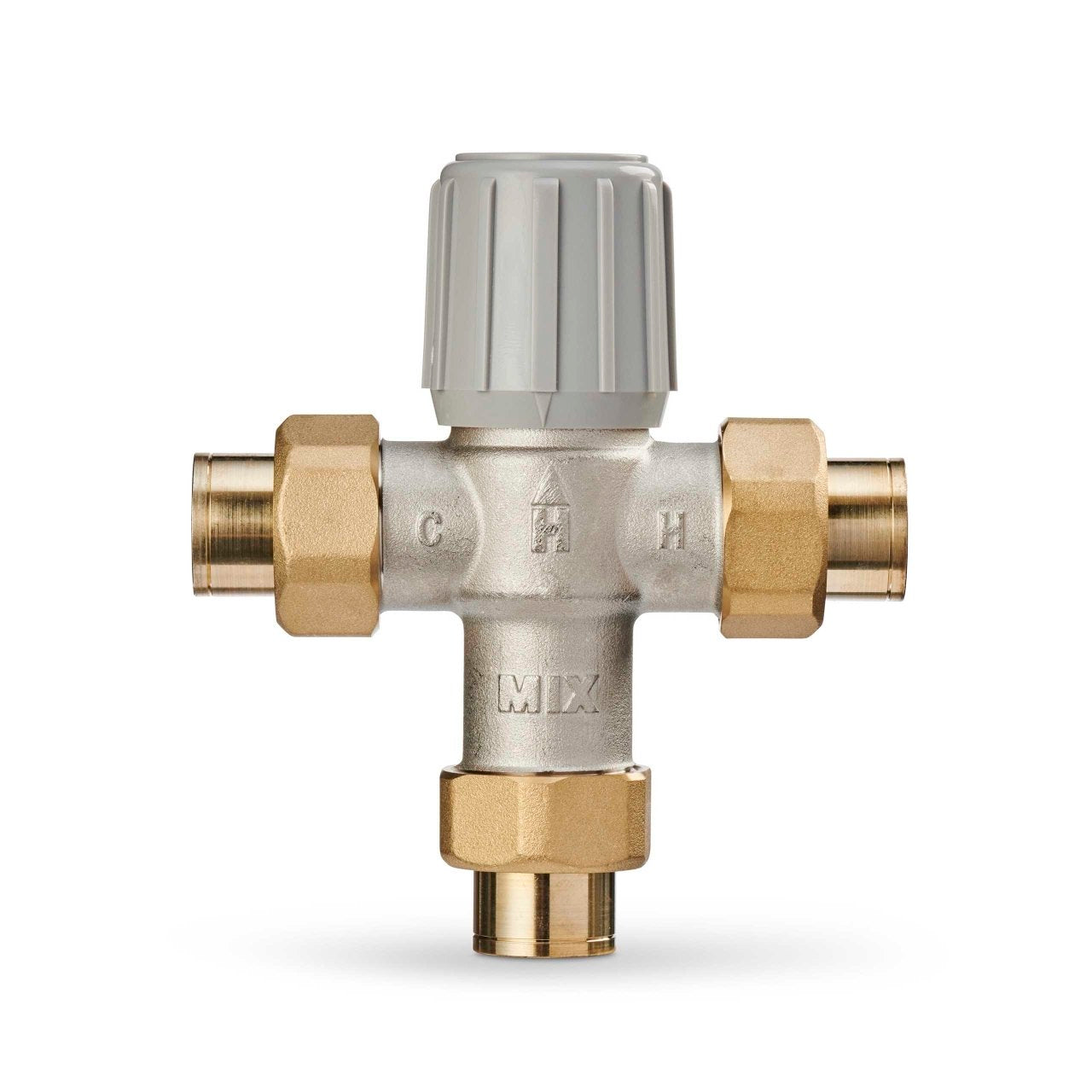

Resideo AM101-US-1 3/4 in Union Sweat Mixing Valve - STD

Product Description

The Resideo AM101-US-1 mixing valve accurately adjusts, maintains, and limits hot water temperature to the user's desired setting. This AM100 series valve raises the water heater storage temperature setting and limits mixed outlet water to a safe level, increasing usable hot water. It features check valves on hot and cold inlets and is ASSE 1017 Certified, CSA Listed, and IAPMO Listed.

• Offers constant water temperature under changing operating conditions.
• Temperature is limited at any point, and flow reduction occurs in seconds if the cold water supply is interrupted.
• Designed for easy maintenance; Teflon coating prevents mineral build-up and extends life.

Product Highlights

The Resideo mixing valve provides reliable performance with a minimum flow of 0.50 gpm and proportional valve for simultaneous hot and cold control.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: AM101-US-1

Technical Specifications

• Controlled Media: Potable Water, Non Potable Water
• Re-Circulation: No
• Approvals and Standards: ASSE 1017 Certified, CSA Listed, IAPMO Listed
• Includes: Check Valves on Hot and Cold Inlets
• Product Height: 5.6 in, 143 mm
• Product Length: 4.9 in, 124 mm
• Adjustment Means: Handwheel
• Cold Inlet Temperature (Min): 39 °F, 27 °C
• Cold Inlet Temperature (Max): 80 °F, 27 °C
• Flex Connector Included: No
• Flow Coefficient: 3.9 Cv
• Flow Rate (Min): 0.50 gpm, 1.9 lpm
• Hot Inlet Temperature (Min): 120 °F, 49 °C
• Hot Inlet Temperature (Max): 180 °F, 82 °C
• Lead Free: Yes
• Media Temperature (Max): 212 °F, 100 °C
• Number of Check Valves: 2
• Operating Mixing Temperature (Min): 70 °F, 21 °C
• Operating Mixing Temperature (Max): 145 °F, 63 °C
• Operating Pressure (Max): 150 psi, 1034 kPa
• Seal Material: EPDM Rubber
• Valve Body Material: Teflon-coated, Nickel-plated Brass
• Connection Size: 3/4 in
• Connection Type: Union Sweat
• Nominal Diameter: DN20
• Number of Connections: 3
• Valve Body Pattern: Straight Through
