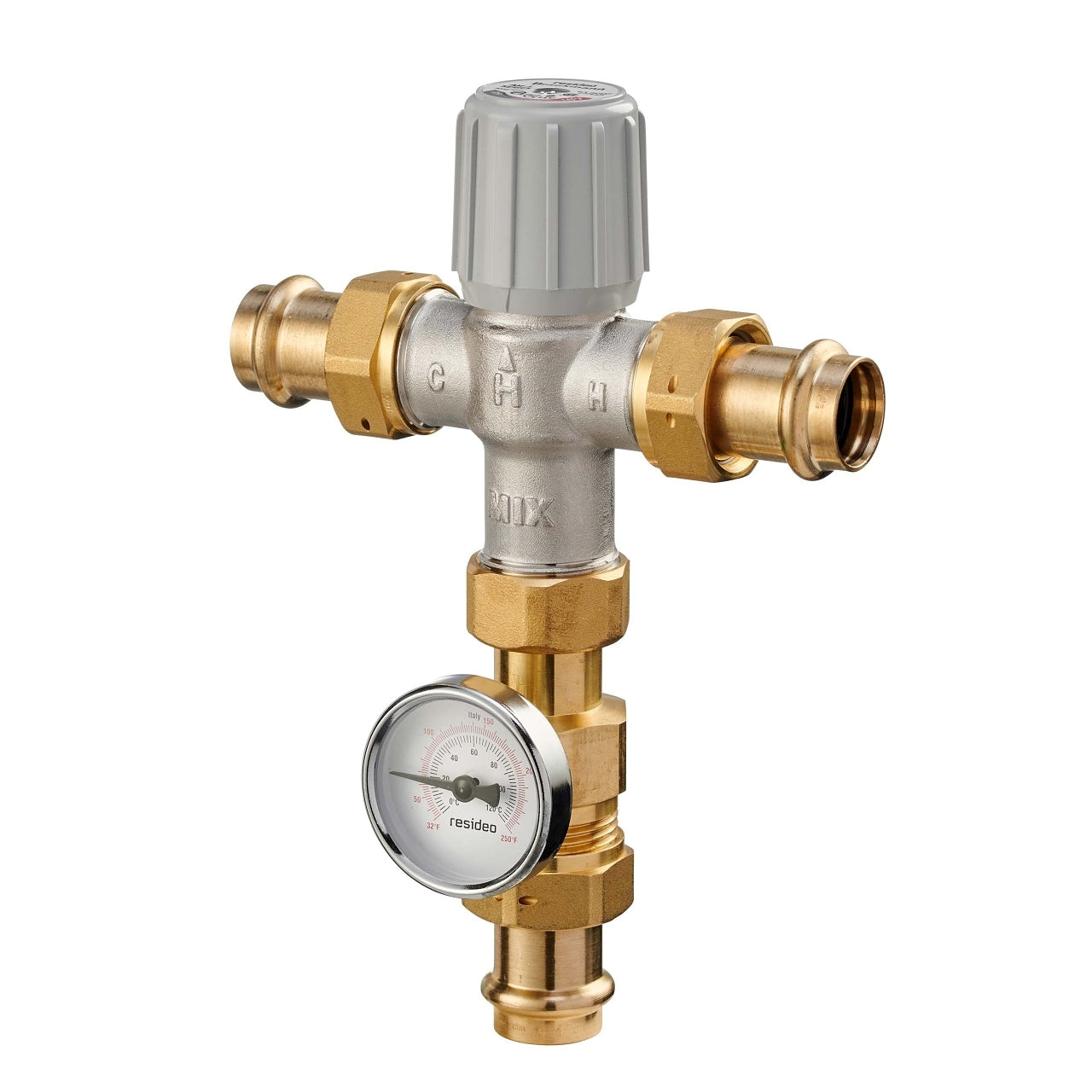

Resideo AM101-UPTG-1LF/U 3/4 in union press w/temp gauge mixing valve LF - STD

Product Description

The Resideo AM101-UPTG-1LF/U mixing valve accurately adjusts, maintains, and limits hot water temperature to a user-selected setting. This lead-free valve ensures more usable hot water by raising the water heater storage temperature while limiting mixed outlet water to a safe level. It features a 3/4 inch union press connection with a temperature gauge and is designed for potable and non-potable water systems.

• Features dual purpose mixing or diverting values
• Offers constant water temperature under changing operating conditions
• Temperature is limited at any point and if cold water supply is interrupted, flow reduction occurs in seconds

Product Highlights

This mixing valve provides precise temperature control, constant water temperature, and safety features for hot water systems.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: AM101-UPTG-1LF/U

Technical Specifications

• Controlled Media: Potable Water, Non Potable Water
• Re-Circulation: No
• Approvals and Standards: ASSE 1017 Certified, CSA Listed, IAPMO Listed, NSF/ANSI Listed
• Includes: Check Valves on Hot and Cold Inlets, Temperature Guage
• Adjustment Means: Handwheel
• Cold Inlet Temperature (Min): 39 °F, 27 °C
• Cold Inlet Temperature (Max): 80 °F, 27 °C
• Flex Connector Included: No
• Flow Coefficient: 3.9 Cv
• Flow Rate (Min): 0.50 gpm, 1.9 lpm
• Flow Rate (Max): 10 Gpm, 37.9 Lpm
• Hot Inlet Temperature (Min): 120 °F, 49 °C
• Hot Inlet Temperature (Max): 180 °F, 82 °C
• Lead Free: Yes
• Media Temperature (Max): 212 °F, 100 °C
• Number of Check Valves: 2
• Operating Mixing Temperature (Min): 70 °F, 21 °C
• Operating Mixing Temperature (Max): 145 °F, 63 °C
• Operating Pressure (Max): 150 psi, 1034 kPa
• Seal Material: EPDM Rubber
• Valve Body Material: Teflon®-Coated, Nickle-Plated Low Lead Brass
• Connection Size: 3/4 in
• Connection Type: Union Press with Temp Gauge
• Nominal Diameter: DN20
• Number of Connections: 3
• Valve Body Pattern: Straight Through
