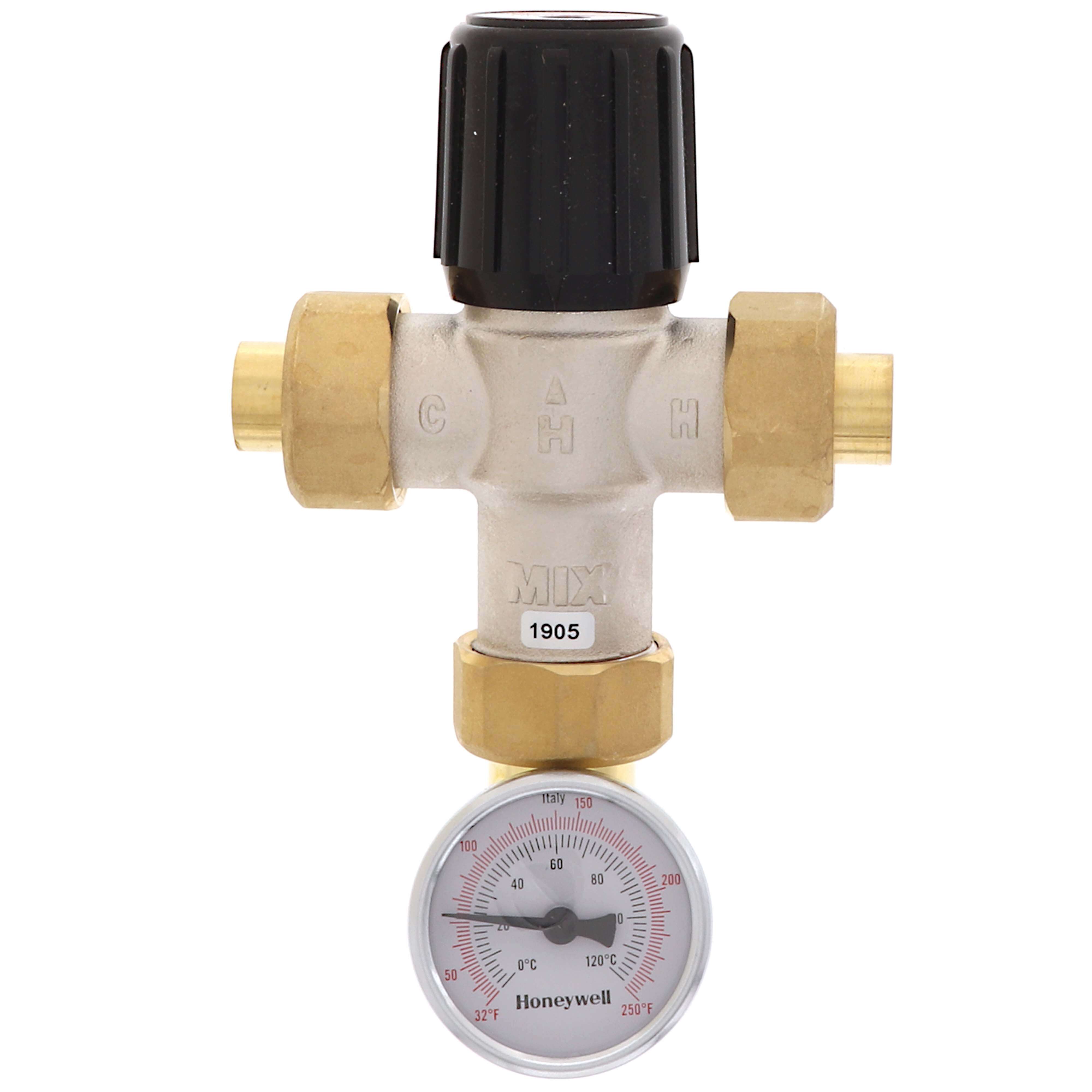

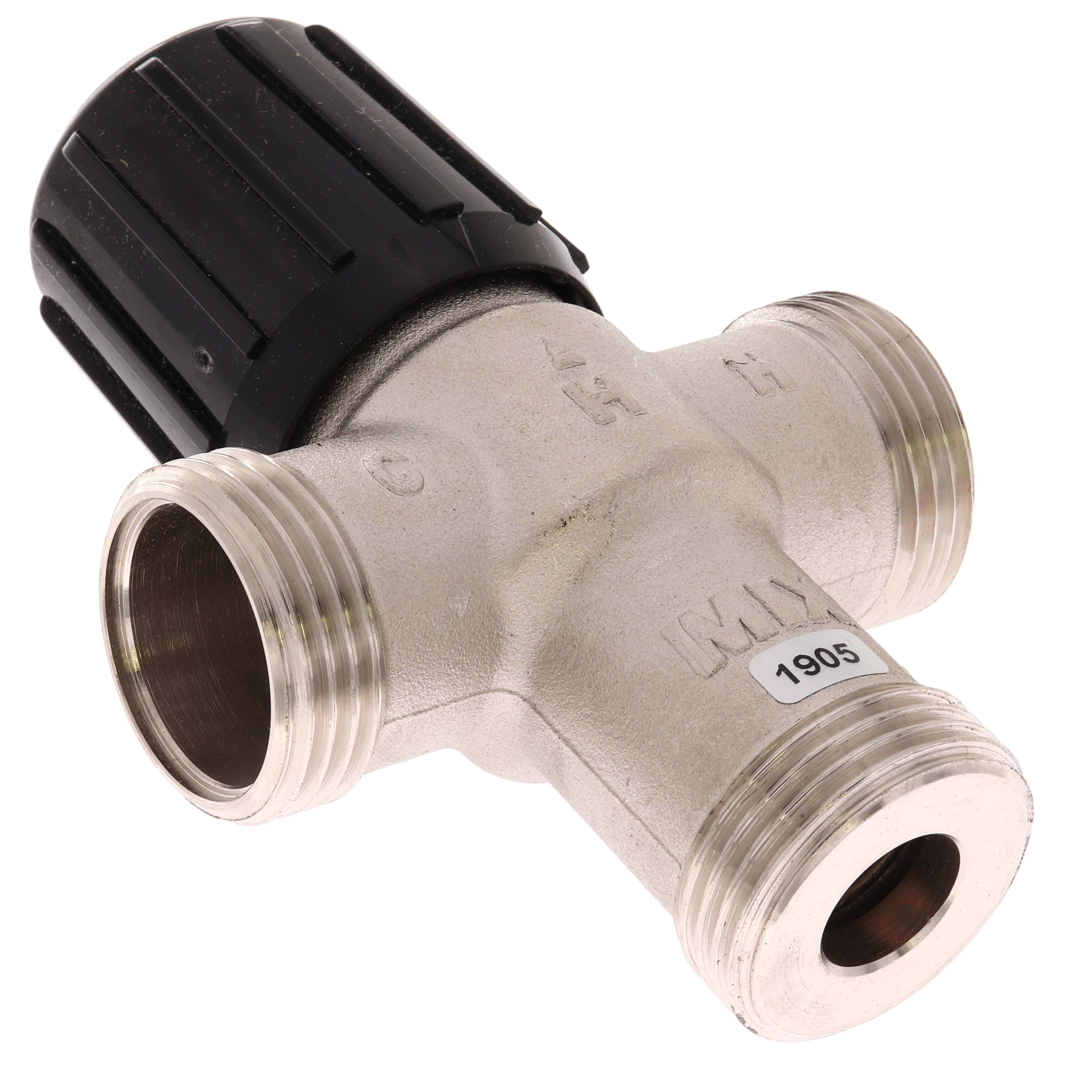

Resideo Braukmann AM100R-USTG-1 1/2 Sweat Union Mixing Valve w/ Temperature Gauge

Product Description

The Resideo Braukmann AM100R-USTG-1 is a 1/2 inch sweat union mixing valve with a temperature gauge designed for heating applications. This valve offers precise control of hot water temperature and is effective in preventing scalding and bacteria growth. The AM100R series ensures maximum comfort for users by maintaining a safe temperature. It is suitable for domestic water applications and can also enhance the efficiency of heating systems.

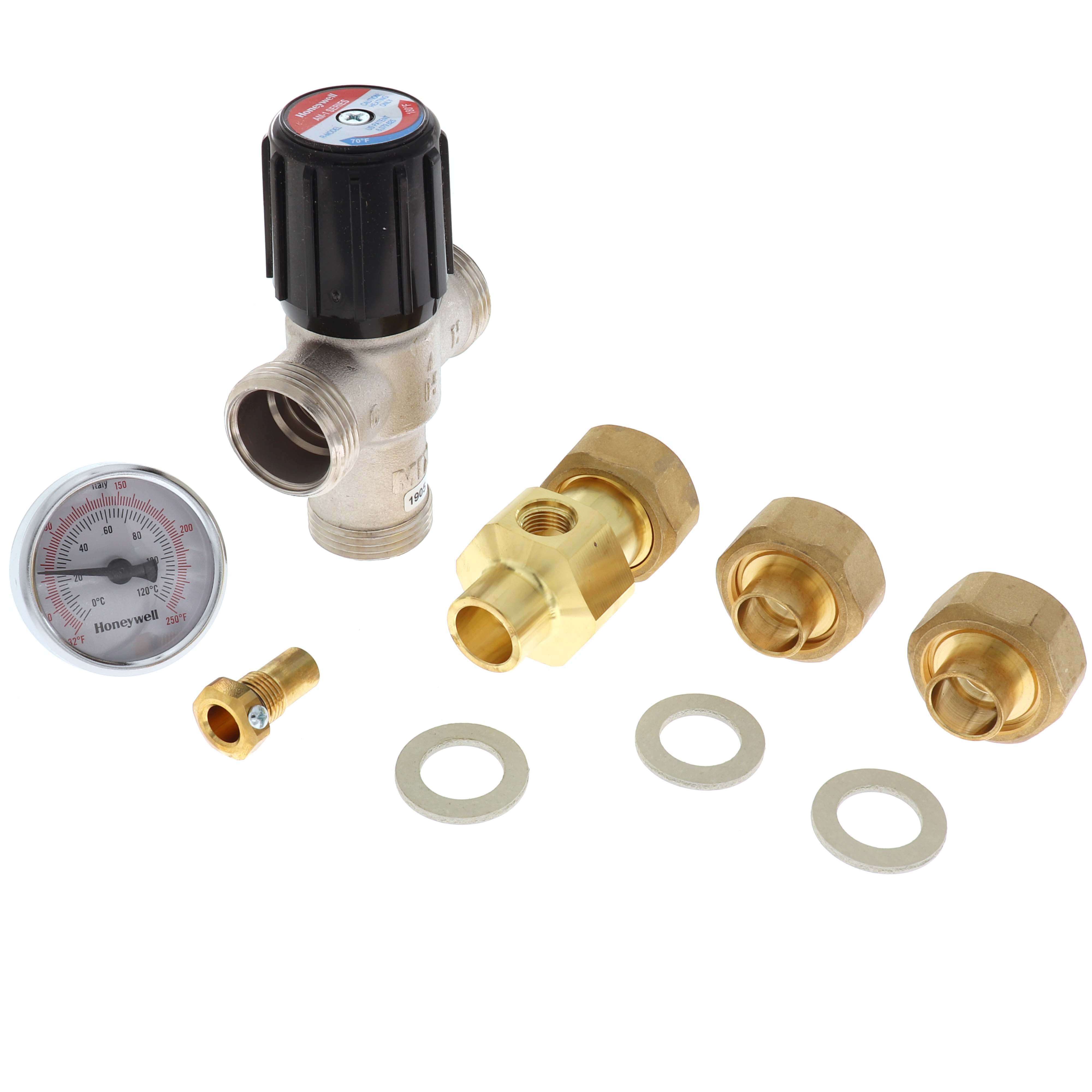

• Union sweat adapter simplifies installation
• Two removable temperature gauges provide dual readings
• Reliable performance even at low flow rates

Product Highlights

This mixing valve is ideal for point-of-source heating, providing consistent temperature control.

Product Information

Standard Information

• Application: Point of Source, Heating Only
• Material: Nickel Plated Brass

Technical Specifications

• Connection Type: Union Sweat
• Pipe Size: 1/2 inch
• Operating Temperature Range: 70°F to 180°F
• Capacity (Cv): 3.9
• Max Pressure: 150 psi
• Flow Rate: Minimum of 0.5 gpm
• Design: Straight through for hot and cold water
• Construction: Nickel-plated brass, tamper-resistant design
