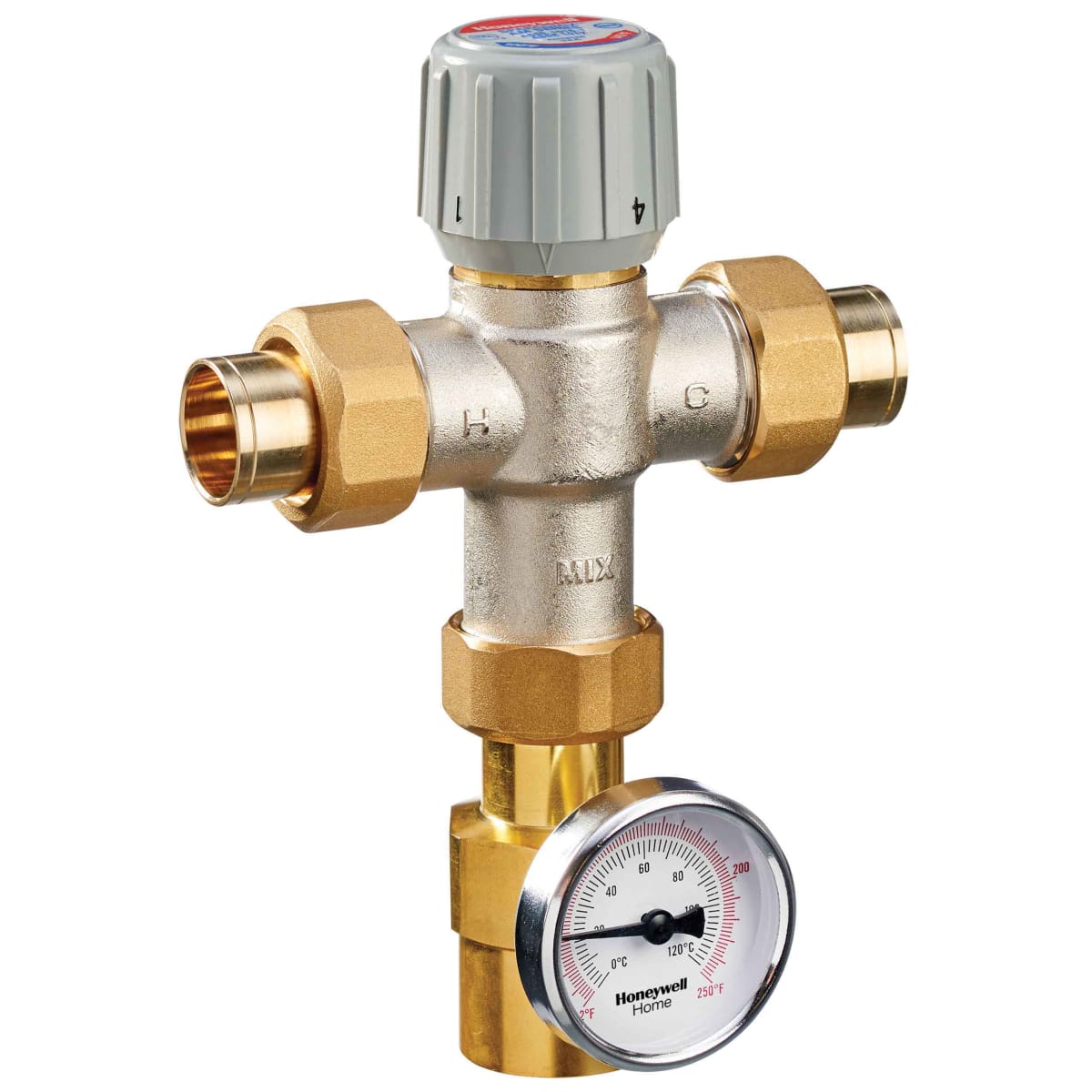

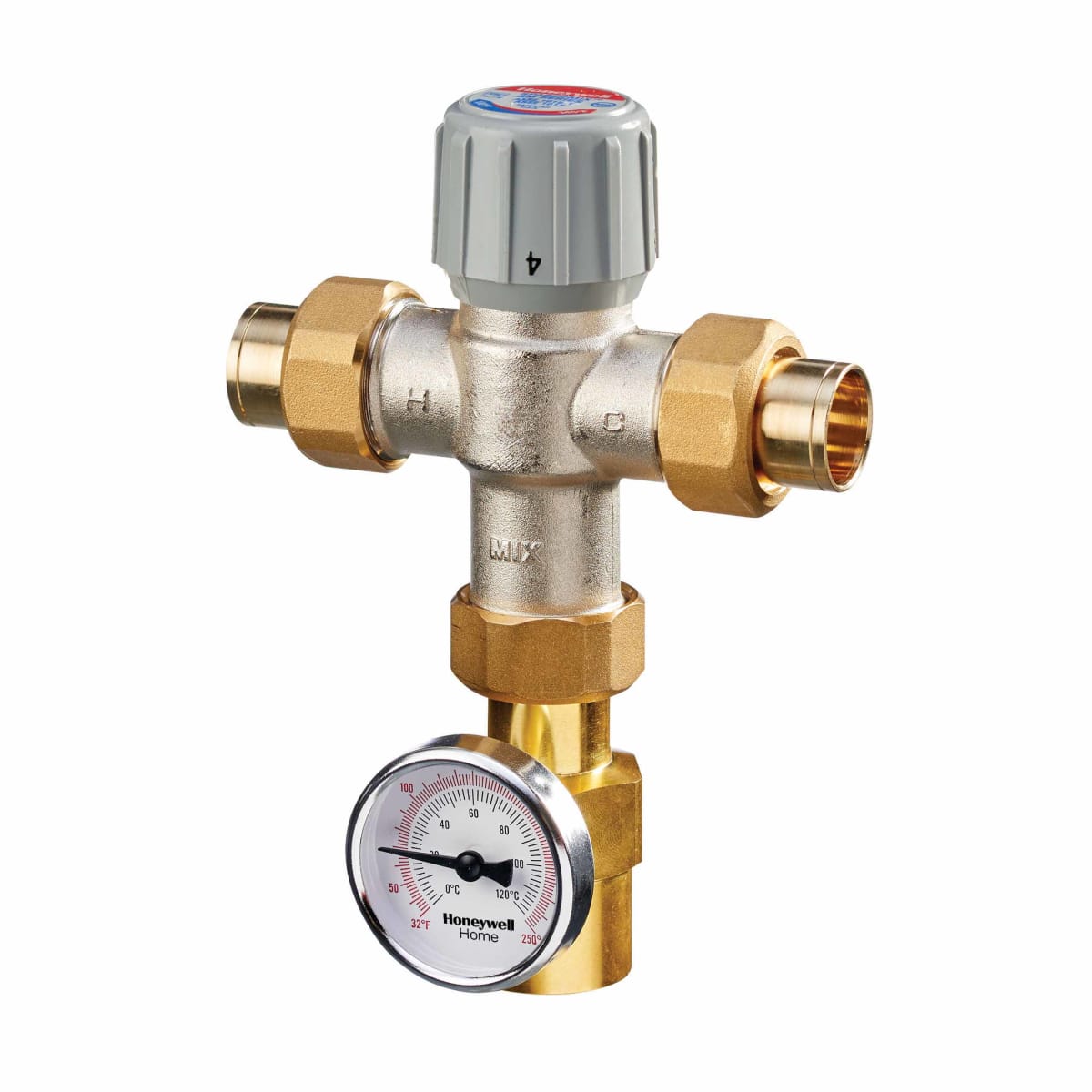

Resideo AM100-USTG-1LF/U 1/2 in Union Sweat w/Temp Gauge Mixing Valve LF - STD

Product Description

The RESIDEO AM100-USTG-1LF/U mixing valve provides precise hot water control for various applications, including domestic water systems, radiant floor heating, and industrial uses. This union connection valve accurately adjusts, maintains, and limits hot water temperature to a user-selected safe level, making more usable hot water available by allowing higher water heater storage temperatures. It is certified by ASSE 1017, CSA, and IAPMO, and handles both potable and non-potable water.

• Accurately adjusts, maintains, and limits hot water temperature
• Includes Check Valves on Hot and Cold Inlets
• Limits mixed outlet water temperature to a safe level

Product Highlights

Raises water heater storage temperature setting for increased usable hot water.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: AM100-USTG-1LF/U

Technical Specifications

• Type: 3-Way
• Included Features: Check Valves on Hot and Cold Inlets
• Application: Domestic Water, Nursing Homes, Public Facilities, Automatic Faucets, Radiant Floor Heating, Space Heating, Combo Systems, Solar Hot Water, Greenhouses, Industrial Applications, Photo Processing
• Recirculation Capability: No
• Connection Type: Union
• Controlled Media: Potable Water, Non Potable Water
• Certifications: ASSE 1017 Certified, CSA Listed, IAPMO Listed
• Nominal Pipe Size: 1/2 inch
