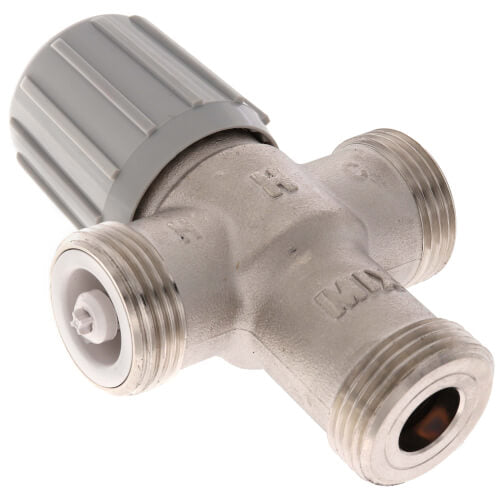

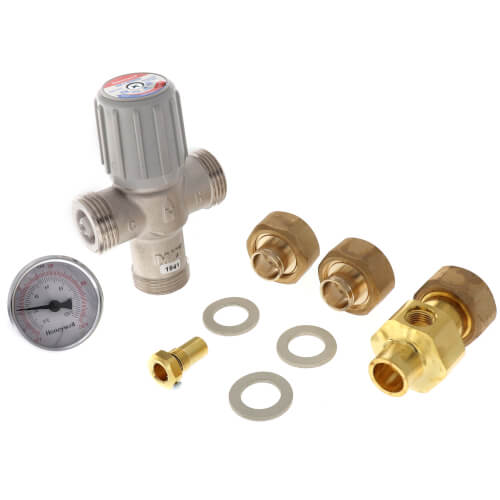

Resideo Braukmann AM100-USTG-1LF 1/2 Lead Free Union Sweat Mixing Valve w/ Temperature Gauge (70-145F)

Product Description

The Resideo Braukmann AM100-USTG-1LF is a lead-free union sweat mixing valve featuring a temperature gauge. This valve is designed for easy installation and efficient system troubleshooting. It accurately controls and limits hot water temperature, providing scald protection and preventing bacterial growth in domestic water applications. With this valve, users can enjoy an optimal hot water supply by adjusting the water heater setting while still maintaining a safe mixed outlet temperature.

• 1/2 inch sweat union connection for simple integration
• Operating temperature range from seventy degrees to one hundred forty-five degrees Fahrenheit
• Constructed from nickel-plated brass for durability

Product Highlights

This mixing valve is vital for heating systems and domestic hot water applications, offering reliable temperature control.

Product Information

Standard Information

• Connection Type: Union Sweat
• Pipe Size: 1/2 inch

Technical Specifications

• Operating Temperature Range: 70 F to 145 F
• Capacity (Cv): 3.9 Cv
• Max Pressure: 150 psi (1034 kPa)
• Max Temperature: 212 F (100 C)
• Flow Rate: Reliable performance at a minimum of 0.5 gpm
• Weight: 2.505 lbs
• Shipping Dimensions: 6.1 x 3.9 x 3.7 inches
