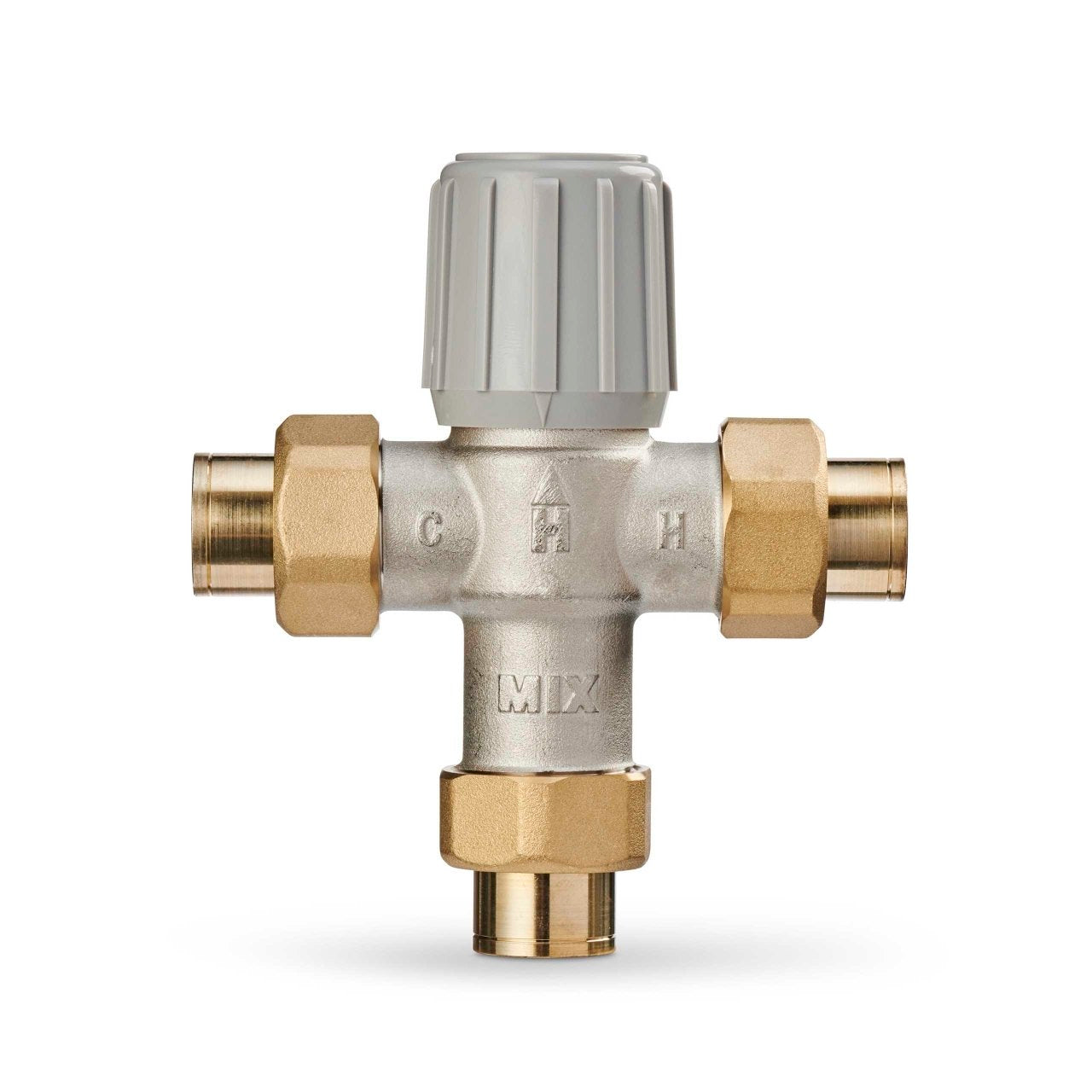

Resideo AM100-US-1LF/U 1/2 in Union Sweat Mixing Valve LF - STD

Product Description

The RESIDEO AM100-US-1LF/U mixing valve accurately adjusts, maintains, and limits hot water temperature to a user-selected setting. This 1/2 inch union sweat valve increases usable hot water by raising the water heater storage temperature while limiting mixed outlet water to a safe level, providing anti-scald protection for domestic and industrial applications. It features a BRASS body and a 3-Way type design.

• Accurately adjusts, maintains, and limits hot water temperature to a desired setting
• Increases usable hot water by raising water heater storage temperature
• Limits mixed outlet water temperature to a safe level

Product Highlights

Accurate hot water temperature control and anti-scald protection.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: AM100-US-1LF/U
• Country of Origin: Unknown

Technical Specifications

• Nominal Size: 1/2"
• Type: 3-Way
• Wifi: No
• Color: Metallic
• Includes: Check Valves on Hot and Cold Inlets
• US Patent: No. 6,079,625
• Application: Domestic Water|Nursing Homes|Public Facilities|Automatic Faucets|Radiant Floor Heating|Space Heating|Combo Systems|Solar Hot Water|Greenhouses|Industrial Applications|Photo Processing
• Recirculation: No
• Connection Type: Sweat
• Controlled Media: Potable Water|Non Potable Water
• Approvals and Standards: ASSE 1017 Certified|CSA Listed|IAPMO Listed
• Body Material: BRASS
• End Style: C Union
• Flow Capacity: 0.5 gpm
• Pressure Rating: 150 psi
• Finish: Nickel Plated
• Inlet to Outlet Length: 4.4 in
• Series: AM-1
• Softgoods Material: EPDM O-Ring
• Temperature Rating: 70 to 145 deg F
