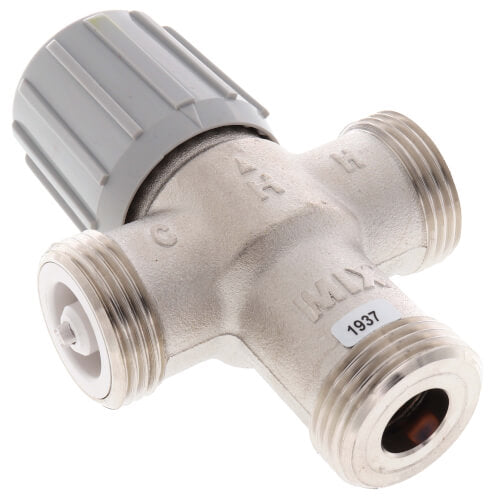

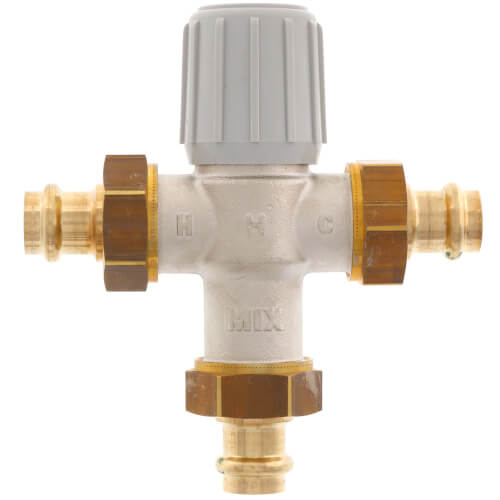

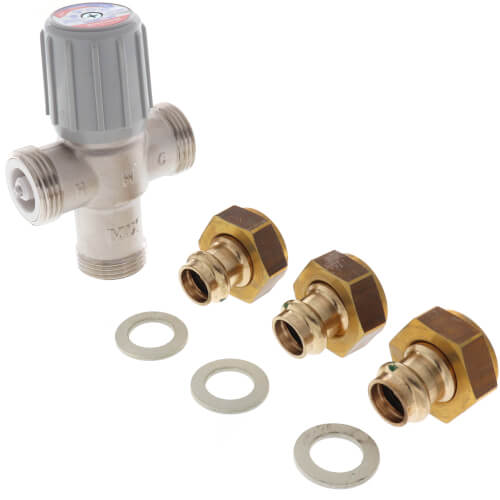

Resideo AM100-UP-1LF AM-1 Series 1/2 Inch Union Press Thermostat Mixing Valve

Product Description

The Resideo AM100-UP-1LF Thermostat Mixing Valve optimally adjusts, maintains, and limits hot water temperature for enhanced comfort and protection in various domestic settings. The valve is designed for easy integration within existing union press systems and complies with lead-free regulations.

• Enhanced safety with anti-scald and anti-chill protection features.
• Dual purpose mixing or diverting capabilities.
• Robust nickel-plated brass construction with Teflon coating for longevity.

Product Highlights

This mixing valve provides reliable performance, supporting a temperature range of 70 degrees Fahrenheit to 145 degrees Fahrenheit. With a tamper-resistant design and EPDM O-rings, it ensures consistent operation under varying conditions.

Product Information

Standard Information

• Brand: Resideo Braukmann
• MPN: AM100-UP-1LF

Technical Specifications

• Type: Mixing Valve, Lead Free
• Connection Type: 1/2 Inch Press x Press
• Maximum Pressure: 150 psi
• Maximum Temperature: 212 degrees Fahrenheit
