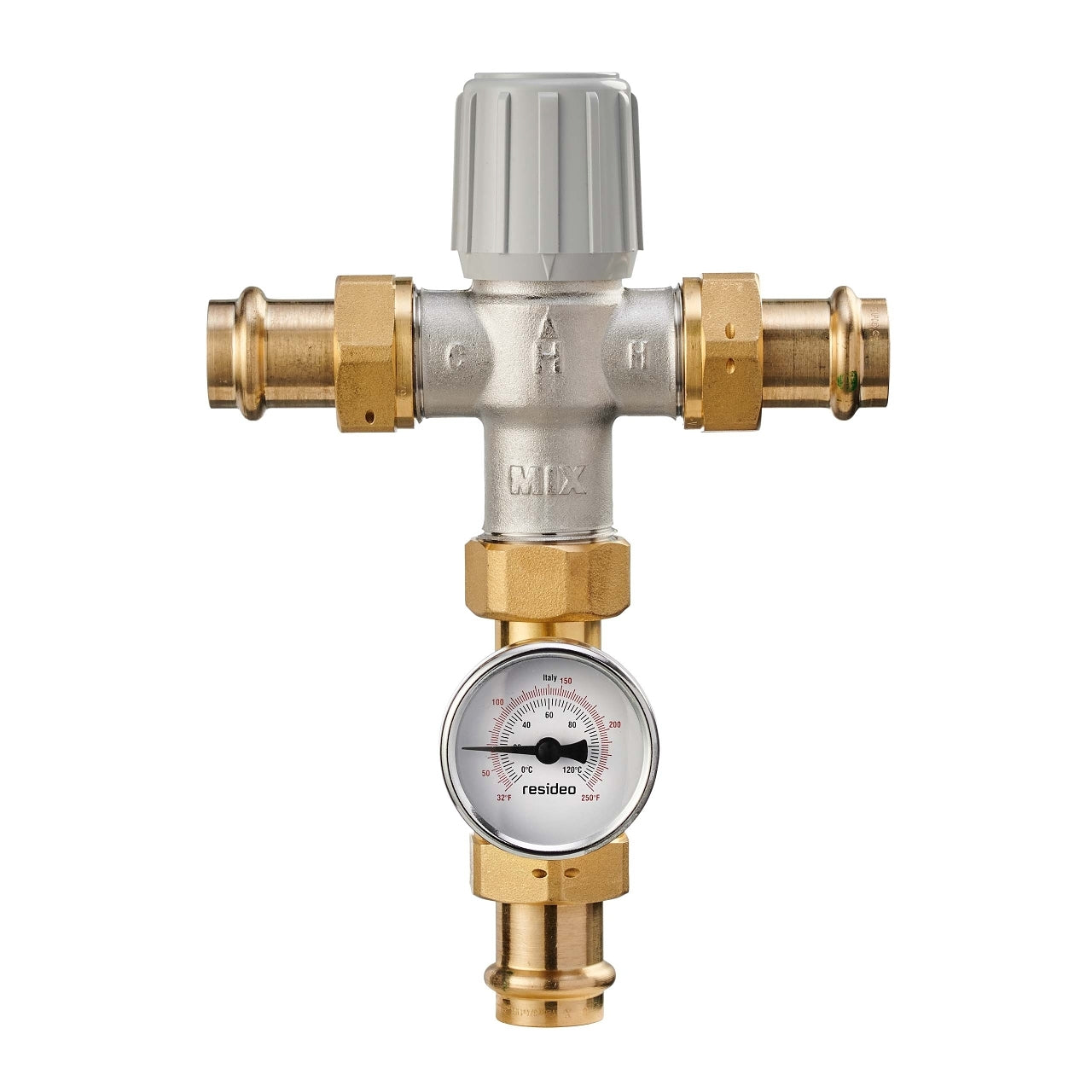

Resideo AM-102-UPTG-1LF/U 1 in union press with temp gauge mixing valve

Product Description

The RESIDEO AM-102-UPTG-1LF/U mixing valve accurately adjusts, maintains, and limits hot water temperature to a user-selected setting. This lead-free valve allows for more usable hot water by raising the water heater storage temperature and limiting mixed outlet water to a safe level. It offers constant water temperature under changing operating conditions and provides reliable performance at a minimum flow of 0.5 gpm.

• Features dual purpose mixing or diverting values.
• Temperature is limited at any point, and if cold water supply is interrupted, flow reduction occurs in seconds.
• Designed for easy maintenance, with Teflon coating to prevent mineral build-up and extend life.

Product Highlights

This lead-free mixing valve provides precise temperature control and safety for hot water systems, featuring a 1-inch union press connection, integrated temperature gauge, and brass body construction.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: AM-102-UPTG-1LF/U

Technical Specifications

• Nominal Size: 1 inch
• End Style: Union
• Pressure: 150 psi
• Flow Rate: 0.5 to 10 gpm
• Body Material: Brass
