Resideo AM-1-025RP/U Rebuild Kit for AM-1 Standard, "R" Models and AMX300 Valves

Product Description

The RESIDEO AM-1-025RP/U is a factory replacement kit for selected Braukmann AM-1 series thermostatic mixing valves, used to restore internal control components on standard (STD) and R model assemblies. It is suitable for domestic hot water mixing applications. Use this kit when outlet temperature drifts or internal wear is identified during service.

• OEM Resideo Braukmann repair kit for AM-1 series mixing valves
• Designed to restore temperature control performance without replacing the complete valve body
• Compatible with both standard (STD) and R model AM-1 valves identified for this kit

Product Highlights

Restore your mixing valve's performance with this Resideo Braukmann AM-1 series repair kit.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: AM-1-025RP/U
• Country of Origin: US

Technical Specifications

• Type: Repair Kit
• Temperature Range (F): 80°F - 180°F
• Used With: AM-1 Series
• Max Temp (F): 180°F

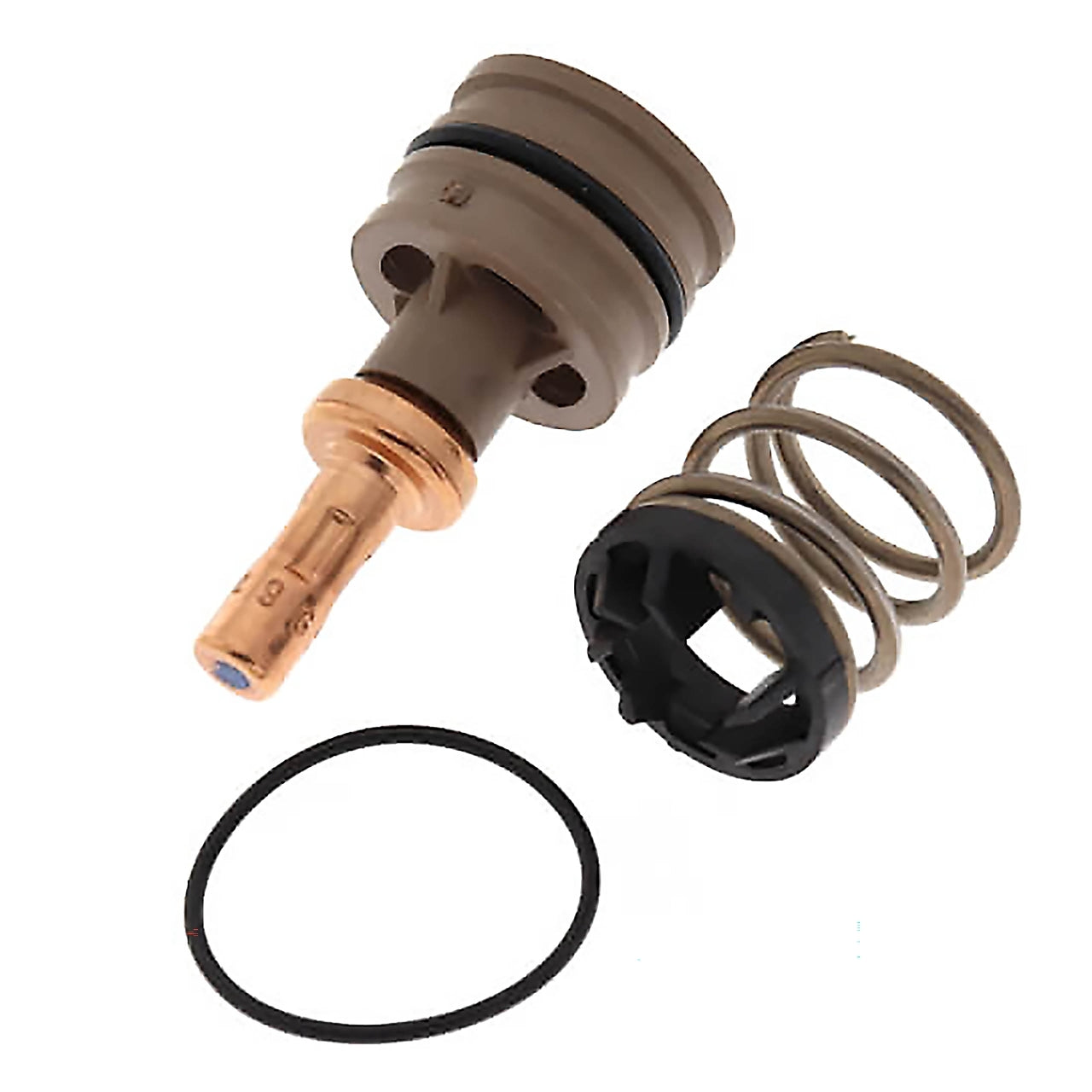

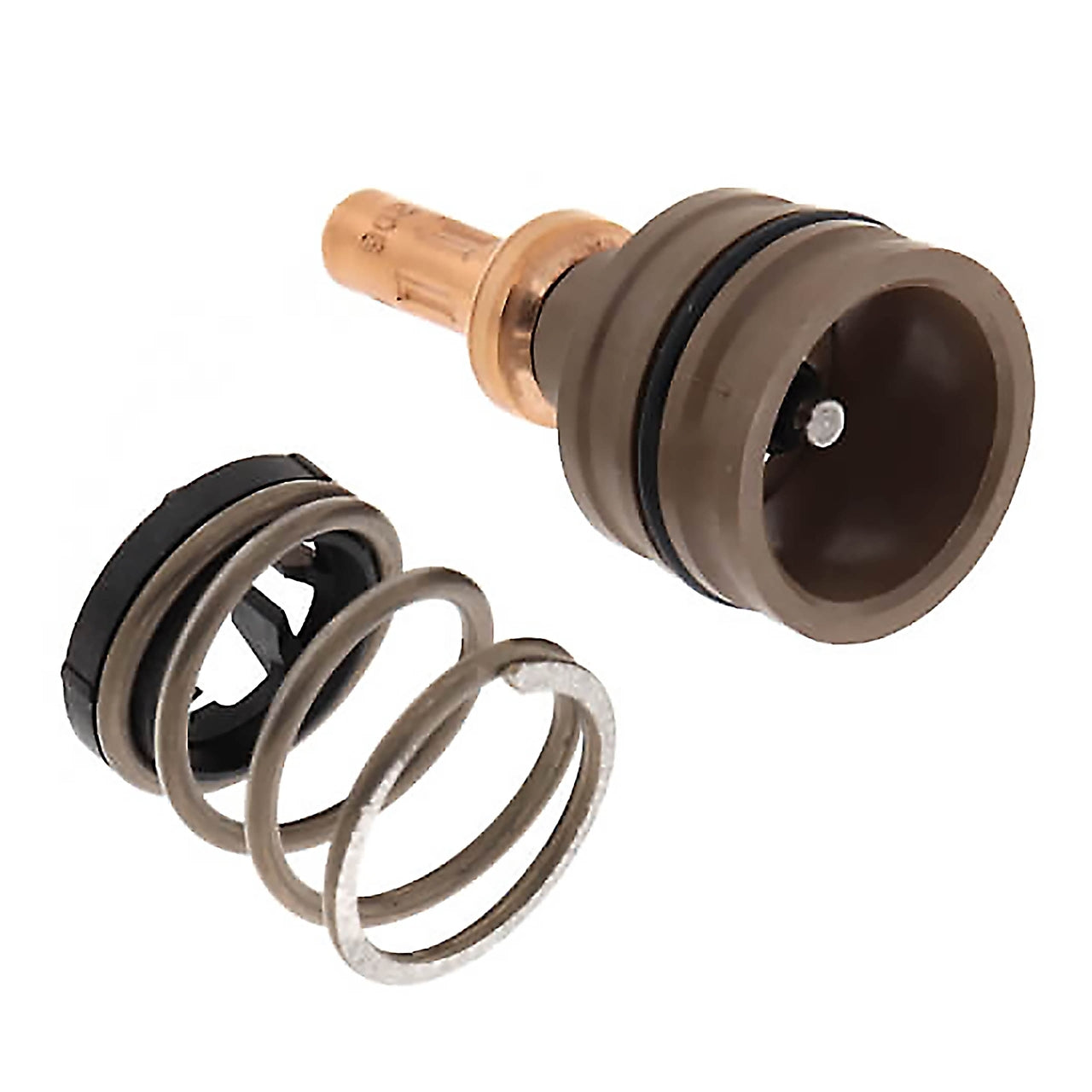

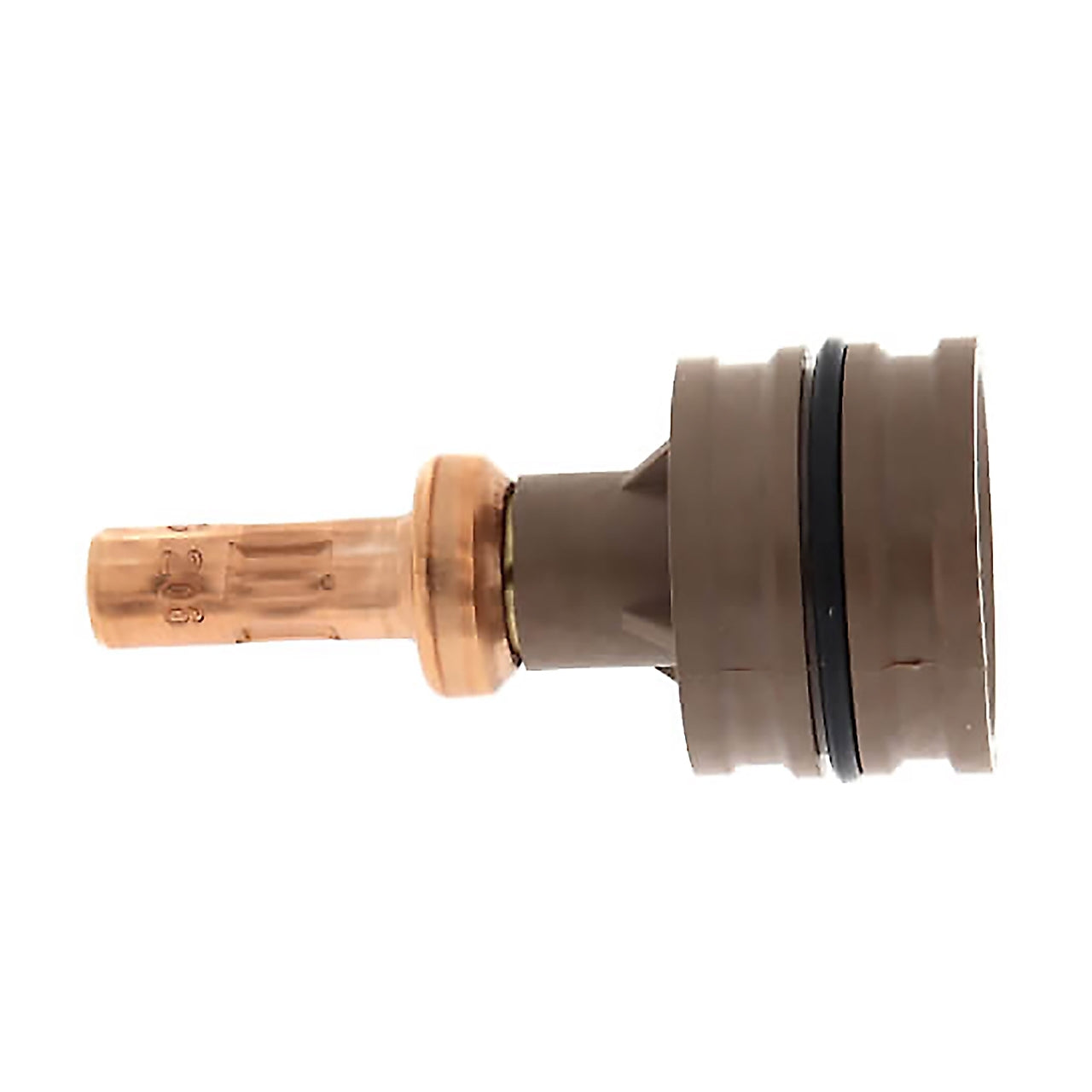

• Includes: Replacement element, Spring, O-ring
• Cold Inlet Temperature (Min): 39 °F, 4 °C
• Cold Inlet Temperature (Max): 80 °F, 27 °C
• Flow Rate (Min): 1.9 lpm, 0.5 gpm
• Hot Inlet Temperature (Min): 120 °F, 49 °C
• Hot Inlet Temperature (Max): 180 °F, 82 °C
• Lead Free: No
• Operating Pressure (Max): 150 psi, 1034 kPa
• Suitable For Use With: Honeywell SpacePak® Series: AM-1
• Domestic/Import: Domestic
• Finish: Nickel Plated
• Material: Brass
• Series: AM-1
• Specifications: 0.5 gpm, 1/2 in NPT
• Brand: Resideo Technologies
• Package Width: 2.25 in
• Package Height: 2.938 in
• UNSPSC: 40141636
• Package Length: 3.625 in
• Country of Origin: US
• Manufacturer: Resideo Technologies
• Manufacturer Part Number: AM-1-025RP/U
