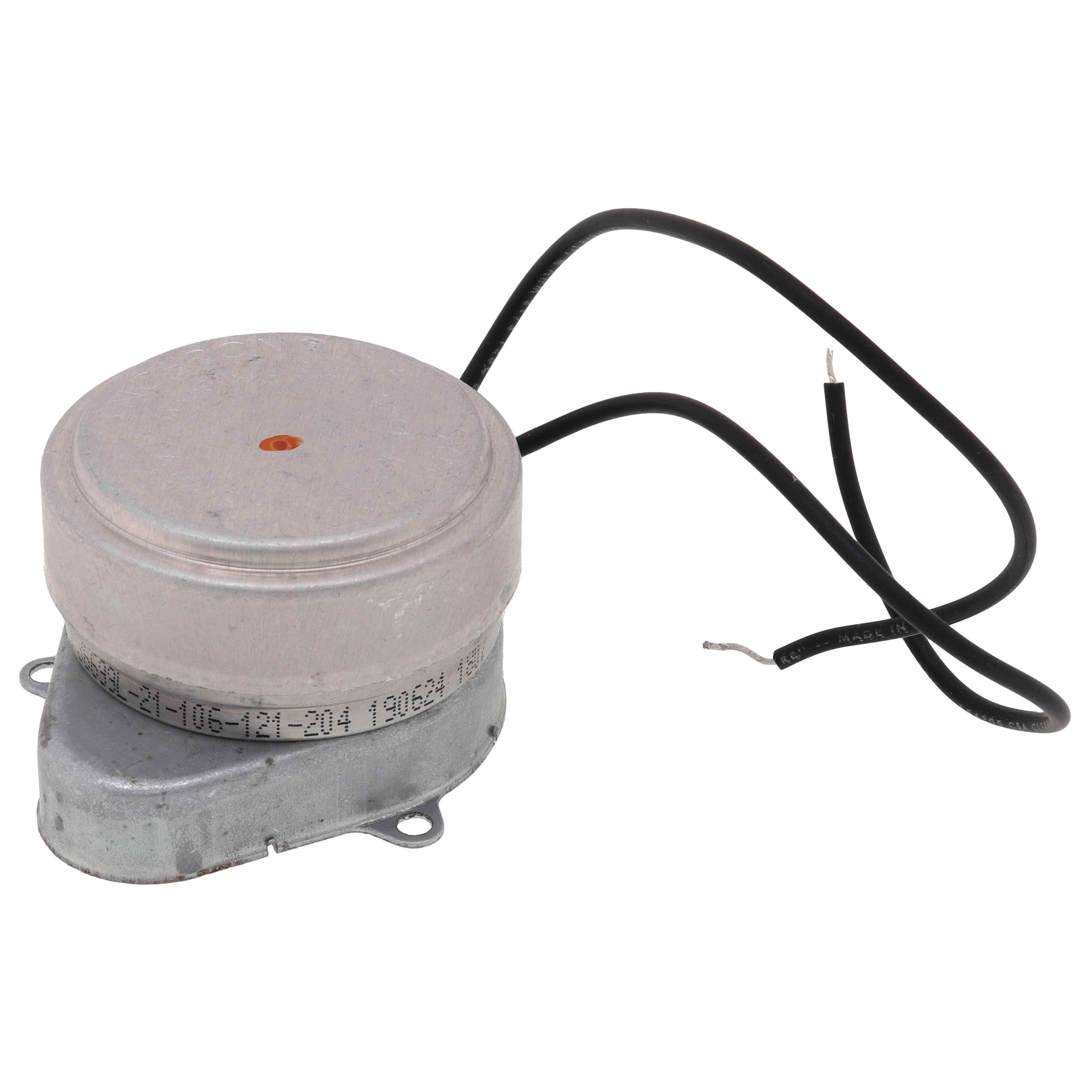

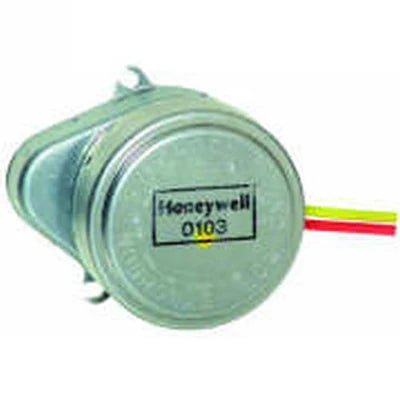

Resideo 802360QA Replacement Motor 277V for V4043/V4044 Zone Valves

Product Description

The Resideo 802360QA is a 277V motor designed specifically for V4043 and V4044 series zone valves. Crafted to enhance system reliability and efficiency, this motor is an essential component for maintaining valve performance in a variety of applications.

• Compact and durable construction
• Designed for simple installation with detailed instructions available
• Engineered to operate at a maximum ambient temperature of 125F

Product Highlights

Optimal for industrial environments, the Resideo 802360QA ensures consistent performance and longevity. This motor is suited for replacement in HVAC systems, particularly in zones handling high electrical loads.

Product Information

Standard Information

• Application: Replacement Motor for V Series Zone Valve
• Voltage: 277V
• Frequency: 60 Hz

Technical Specifications

• Weight: 0.54 pounds
• Dimensions: Length 4.3 inches, Width 4.05 inches, Height 2.75 inches
• Electrical Connections: 6 inch leads
• Compatibility: V4044A1258, V4043 Series, V4044 Series
