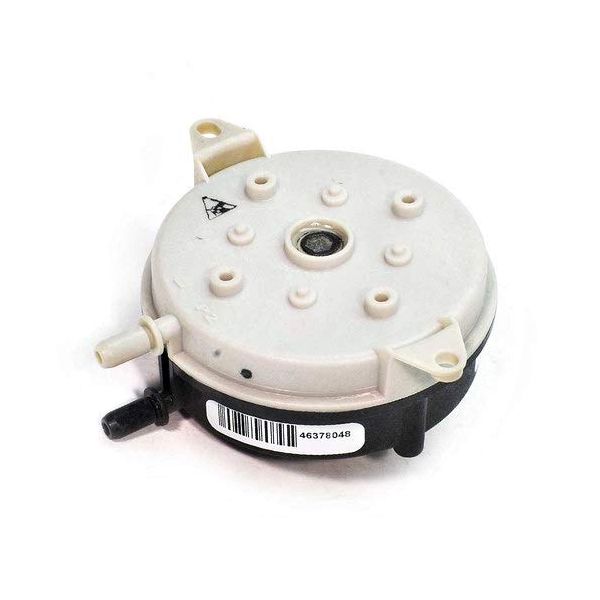

Resideo 50027910-001/U Replacement Duct or Remote Mount Differential Pressure Switch TrueSTEAM Humidifier 24V 5A 3-15/16 in H x 4-13/64 in W x 2-1/64 in D

Product Description

The RESIDEO 50027910-001/U is a replacement differential pressure switch for TrueSTEAM Humidifiers. It senses changes in duct air pressure to confirm airflow, safeguarding the operation of installed IAQ equipment. Operating at 24V and 5A, it has a pressure rating of 0.04 in-WC and an operating temperature range of -40 to 190 deg F. This duct/remote-mount switch ensures reliable system functionality.

• Senses duct air pressure changes to confirm airflow for IAQ equipment operation.
• Includes essential installation components: rubber grommets, tube fitting elbows, 10 ft of 1/4 in O.D. tubing, sheet metal screws, and terminal adaptors.
• Designed as a replacement part for Steam Humidifiers, compatible with models HM506, HM509, and HM512.

Product Highlights

Ensures proper airflow for IAQ equipment, compatible with TrueSTEAM Humidifiers, and features a duct/remote-mount design.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: 50027910-001/U

Technical Specifications

• Part Type: Differential Pressure Switch
• Includes: 2 Rubber grommets, 2 Tube fitting elbows, 10 ft of 1/4 in O.D. tubing, 1 Differential Pressure Switch, 2- #8 x 3/4 in sheet metal screws, 2 Terminal adaptors
• Application: Replacement Part for Humidifiers
• Compatible With: Steam Humidifiers
• For Use With: HM506, HM509, HM512
• Mounting Type: Duct/Remote-Mount
• Current Rating: 5 A
• Pressure Rating: 0.04 in-WC
• Operating Temperature: -40 to 190 deg F
• Voltage: 24 V
