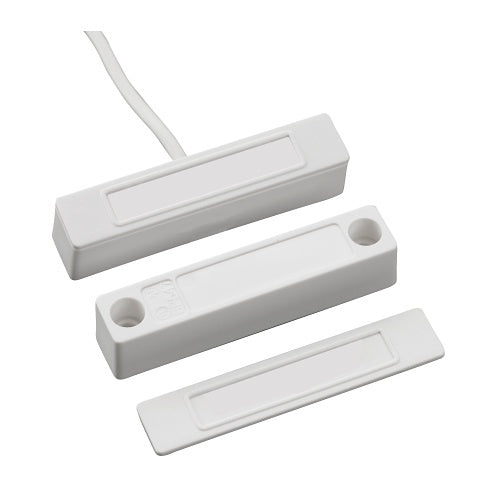

Resideo 4939SN-WH V-Plex Surface Mount Contact with Cover, White

Product Description

The Resideo 4939SN-WH is a V-Plex surface mount magnetic contact, designed for securing commercial and residential environments. It is programmable and compatible with control panels that support serial number device capabilities for multiplex polling loops.

• Programmable functionality for enhanced security setup
• Supports multiplex polling loop for efficient data communication
• Includes a standard gap of 1.25 inches for installation flexibility

Product Highlights

This magnetic contact is easy to program either from a VISTA keypad or through learn mode.

Product Information

Technical Specifications

• Mounting Type: Surface Mount
• Compatibility: Control panels with serial number device capabilities
• Gap Size: 1.25 inches
• Dimensions: Length 2.5 inches, Width 0.5 inches, Height 0.53 inches
• Installation Type: Commercial, Surface mounted
• Contact Configuration: SPST Form A Reed
• Connectivity: Wired, V-Plex addressable
