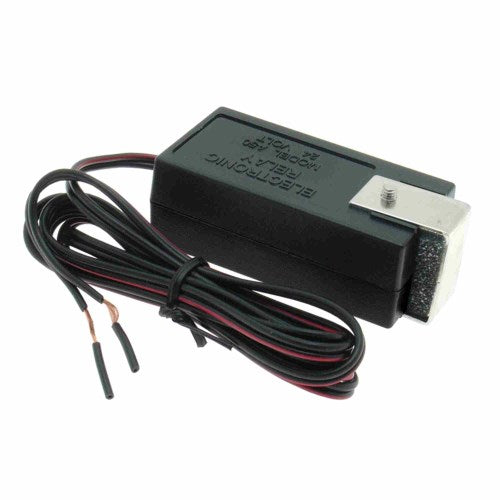

Resideo 32001754-001/u Current Sensing Relay Humidifier

Product Description

The RESIDEO 32001754-001/u is a current sensing relay designed for use with Resideo whole-home humidifier systems. This relay monitors electrical current flow in the humidifier circuit and triggers control responses based on detected load conditions, enabling accurate and automatic humidifier operation within a forced-air HVAC system. It is a direct replacement component installed by licensed HVAC technicians performing service or warranty repair on compatible Resideo humidifier models. The part integrates into the humidifier's control circuit and is essential for proper unit operation when the original relay has failed or been damaged.

This relay is specified for use with the Resideo HE220, HE225, HE260, HE265, HE360, and HE365 humidifier models. These are bypass and flow-through whole-home humidifiers typically installed on residential forced-air furnace systems. The relay is mounted within the humidifier control assembly and works in conjunction with the system blower circuit to detect airflow-driven current and initiate humidification cycles. HVAC technicians performing humidifier diagnostics or control component replacement will encounter this part on standard residential installations.

Key Features

• Current sensing design detects load conditions to trigger humidifier operation automatically
• Direct OEM replacement for Resideo HE-series humidifier control circuits
• Compatible with both bypass and flow-through Resideo humidifier configurations
• Designed for integration into residential forced-air HVAC humidifier systems
• Manufactured by Resideo Technologies Inc. to original equipment specifications

Compatibility

Designed as a direct OEM replacement relay for Resideo HE220, HE225, HE260, HE265, HE360, and HE365 humidifiers.

Installation Notes

Installation should be performed by a licensed HVAC technician. Before servicing the humidifier control circuit, shut off power to the furnace and humidifier at the disconnect or breaker and close the water supply valve to the humidifier. Follow all applicable local codes and manufacturer wiring diagrams when replacing relay components. Do not restore power until all connections are secured and covers are in place.

Technical Specifications

• Product Type: Current Sensing Relay
• Manufacturer: Resideo Technologies Inc.

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: 32001754-001/u
