Research Products RP-MODEL720A Pressure Vacuum Breaker Assembly

Product Description

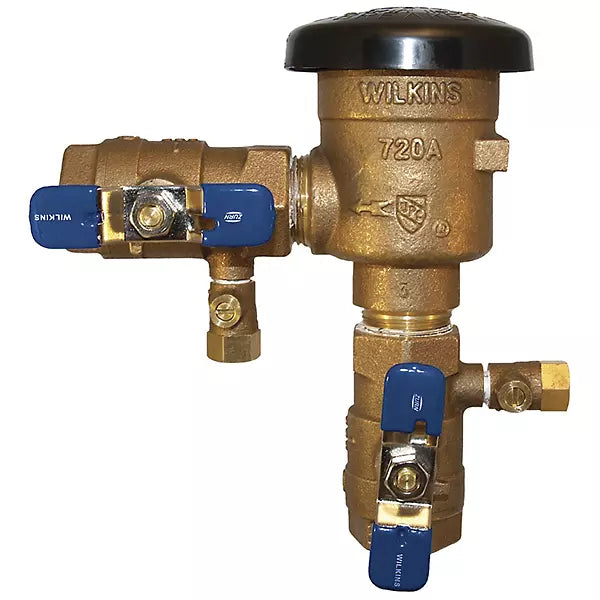

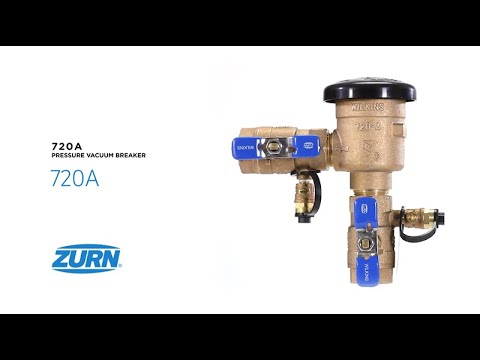

The Research Products RP-MODEL720A is a pressure vacuum breaker assembly that prevents backsiphonage in irrigation systems used in residential and commercial settings. This assembly comes equipped with a check valve, vacuum relief mechanism, two test cocks, and inlet and outlet shut-off valves. It features a bronze body and bonnet with corrosion-resistant internal parts.

• Maximum pressure rating of 150 psi
• Temperature range from thirty-three degrees Fahrenheit to one hundred ten degrees Fahrenheit
• Includes full port resilient seated shut-off valves

Product Highlights

This assembly is essential for protecting non-potable water systems from contamination, making it suitable for both commercial and residential irrigation applications.

Product Information

Standard Information

• Brand: Research Products
• MPN: RP-MODEL720A

Technical Specifications

• Maximum Pressure: 150 psi
• Temperature Range: 33°F to 110°F
• Material: Cast Bronze
• Size: 1 in
• Pressure Testing: 300 psi
