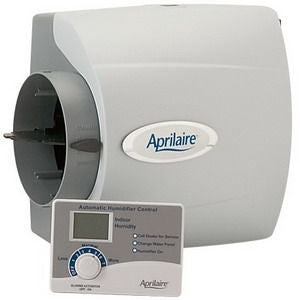

Research Products Corporation 600 Aprilaire 600 Automatic Bypass Humidifier 17 gpd 3 gph Water Feed 600

Product Description

The Research Products Corporation 600 is an automatic bypass humidifier designed for enhancing indoor air quality. This unit has a nominal capacity of seventeen gallons per day and operates at twenty-four volts with a current of zero point five amps at sixty hertz. The humidifier features a three gallons per hour water feed and a zero point seven gallons per hour evaporative rate. Measuring ten inches wide by twelve and three-quarters inches high for the plenum opening, with a six inches diameter duct, it fits seamlessly into HVAC systems.

• Delivers optimum humidity levels with automated control.
• Includes essential service readings for temperature and humidity in manual mode.
• Operates quietly with straightforward annual maintenance.

Product Highlights

This humidifier is straightforward to install and maintain, providing critical humidity control for homes or businesses.

Product Information

Standard Information

• Manufacturer: Research Products Corporation
• MPN: 600

Technical Specifications

• Type: Automatic
• Series: 600
• Duct Size: 6 Inch Dia
• Dimensions: 15-3/4 Inch H x 15-3/8 Inch W x 10-1/4 Inch D
• Plenum Opening: 10 Inch W x 12-3/4 Inch H
• Water Feed Rate: 3 gph
• Evaporative Rate: 0.7 gph
• Nominal Capacity: 17 gpd
• Electrical Ratings: 24 V, 0.5 A, 60 Hz
