Research Products 8444 Conventional Single Stage 1H/1C Dual PO Dual Powered 5-1/4 x 4-1/2 x 1 in

Product Description

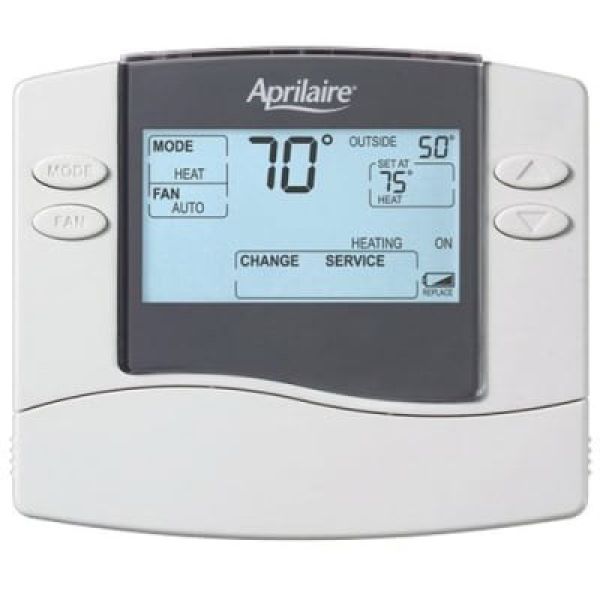

The RESEARCH PRODUCTS 8444 thermostat is a conventional single-stage, non-programmable device designed for residential heating and cooling systems. It offers 1 Heat/1 Cool stage control and is dual-powered, operating on both battery and hardwired connections. This thermostat provides precise digital accuracy for temperature management, featuring a large 4.5 sq-in LCD screen with a high-contrast, backlit display for clear readability. It is suitable for gas, oil, electric, and millivolt systems.

• Features a large 4.5 sq-in LCD screen with a high-contrast, backlit display.
• Offers simultaneous display of room, set, and outdoor temperatures in Fahrenheit or Celsius.
• Includes service reminders for HVAC system, humidifier, dehumidifier, and air filter.

Product Highlights

This non-programmable, 1 Heat/1 Cool residential thermostat provides digital accuracy and features a backlit LCD for clear temperature display and system reminders.

Product Information

Standard Information

• Brand: RESEARCH PRODUCTS
• Manufacturer Part Number: 8444

Technical Specifications

• Power Source: Dual Powered - Battery/Hardwired
• Programmable: No
• Series: 8400 Series
• Stages: 1 Heat/1 Cool
• Terminal Designations: RC, R, C, W, Y, G, S1, S2
• Touchscreen: No
• Type: Residential
• Wireless: No
• Accuracy: +/-1 deg F
• Amperage Rating: 1 - 2.5 A
• Application: For gas, oil, electric, 1-stage, millivolt systems
• Display Type: 4.5 sq-in LCD
• Humidity Range: 5 - 90% RH
• Mounting Type: Horizontal
• Temperature Rating: 32 - 120 deg F Ambient, -30 to 140 deg F Storage
• Voltage Rating: 24 VAC
• Differential: Heat/Cool
