Rescue 5861 EZ16 OAO ECM Direct Drive Blower Motor 3/4-1/3 HP (All Angle) 5861-US

Brand: RESCUE
SKU: 5861
Availability: In Stock

Ships same day if ordered by 12 pm
$475.99
$475.99
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

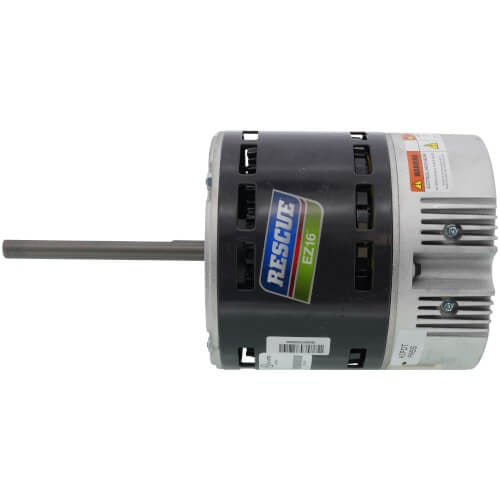

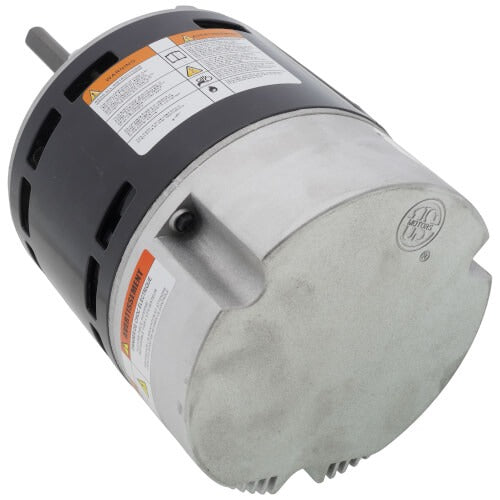

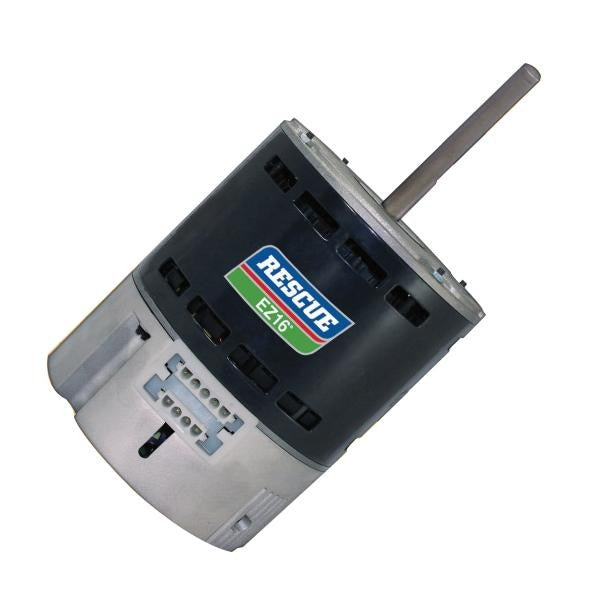

Rescue 5861 is an EZ16 OAO ECM direct drive blower motor rated for 115/208-230 V and 3/4-1/3 HP, delivering 1075 RPM for furnace and air handler blower applications. The unit is multi-voltage, reversible in rotation, and field tunable via the included EZ interface. It provides 16-pin variable speed compatibility with ECM 2.0, 2.3 and EON platforms and includes surge protection.

  • Multi-voltage 115/208-230 V, single phase, 50/60 Hz; 3/4-1/3 HP and 9.3 A rating

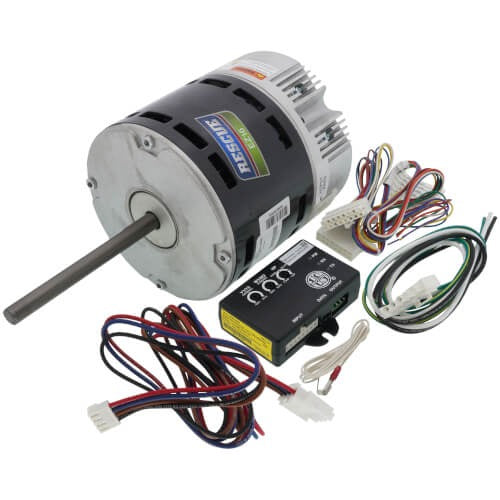

  • EZ16 ECM 16-pin variable speed direct drive with field tunable EZI and reversible rotation (CCW/CW)
  • Open air over enclosure, NEMA 48 frame, belly band mounting, 1075 RPM, ball bearing, electronically protected

Product Highlights

Universal 16-pin ECM replacement for furnaces and air handlers; field tunable; built-in 6000 V surge protection

Product Information

Standard Information

  • Brand: RESCUE
  • Manufacturer Part Number: 5861
  • Country of Origin: Mexico
Technical Specifications
Brand
RESCUE
MPN
5861
Model Name
EZ16 OAO ECM Direct Drive Blower Motor
Input Voltage
115 / 208-230 V
Frequency
50/60 Hz
Phase
Single phase
Horsepower
3/4 - 1/3 HP
Speed (RPM)
1075 RPM
Input Current
9.3 A
Enclosure Type
Open air over (OAO)
Mounting Type
Belly band
Frame Size
48 (NEMA 48)
Shaft Diameter
1/2 in
Shaft Length
5.0 in
Rotation
Reversible (CCW and CW)
Motor Type
ECM (16-pin variable speed)
Bearing Type
Ball
Insulation Class
B
Protection
Built-in 6000 V surge protection; electronically protected thermal protection
Efficiency
Up to 82%
Ambient Operating Temperature
40 C (104 F)
Mounting Position
All Angle
Suitable For Use With
Furnaces, air handlers
Compatibility
Compatible with ECM 2.0, 2.3, EON and Nidec 16X4W
Weight
12.0 lb
Country of Origin
Mexico
