RenewAire HE-3XJINV-S15VV-DVNT---L Indoor Energy Recovery Ventilator (ERV)

Product Description

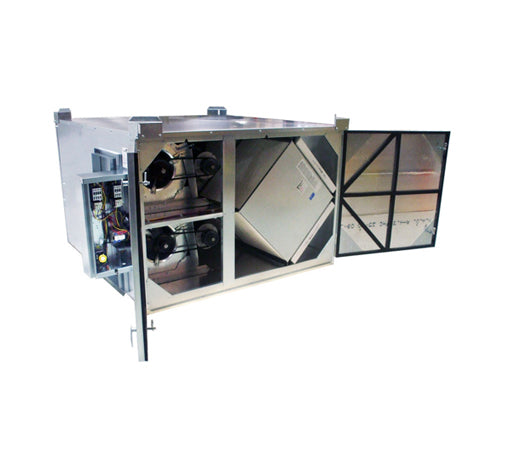

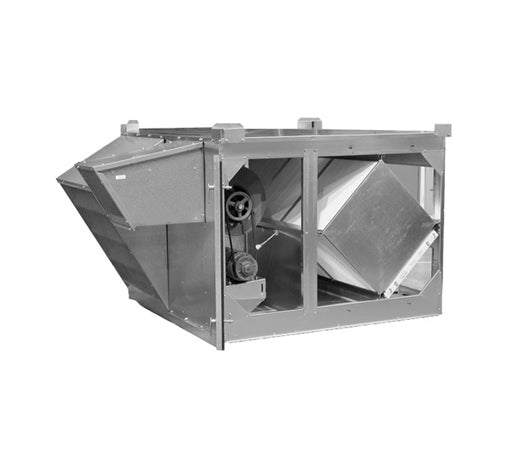

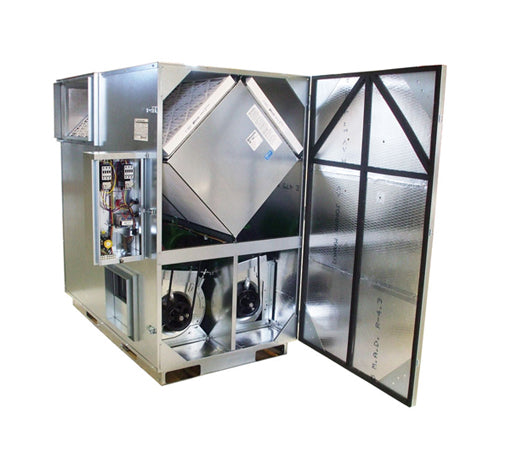

The RenewAire HE-3XJINV-S15VV-DVNT---L is an indoor energy recovery ventilator built to support high-capacity fresh air exchange in finished commercial and residential buildings. Using static plate heat and humidity transfer technology, this ERV helps condition incoming outdoor air while exhausting stale indoor air, improving indoor air quality and ventilation efficiency.

• Indoor energy recovery ventilator for fresh air and exhaust air exchange

• Typical airflow range from 750 to 3,300 CFM

• Static plate core transfers heat and humidity between airstreams

• Vertical duct configuration helps support space-efficient installation

• Includes three MERV 8 outdoor air filters and three MERV 8 return air filters

• Onboard VFDs provide airflow control for both airstreams

• TEFC belt drive fan motors with 2 HP per motor

• 208-230V, single-phase, 60 Hz power supply

• Designed for indoor installation in finished buildings

• Helps improve ventilation, comfort, and indoor air quality


Product Highlights

This unit is ideal for maintaining indoor air quality and ensuring a steady flow of fresh air in residential or commercial settings. Its design supports easy installation and effective performance.

• Best for: commercial and residential buildings needing an indoor energy recovery ventilator for efficient fresh air and humidity management.

Product Information

Standard Information

• Application Type: Indoor
• Ventilation Type: Static plate, heat and humidity transfer

Technical Specifications

• Typical Airflow Range: 750-3,300 CFM
• AHRI 1060 Certified Core: Three L125-G5
• OA Filter(s): Total Qty. 3, MERV 8: 20 x 20 x 2
• RA Filter(s): Total Qty. 3, MERV 8: 20 x 20 x 2
• Power Supply: 208-230V / 1 Phase / 60 Hz
• Fan Motor Type: TEFC Belt Drive
• Fan Motor Horsepower: 2 HP (per motor)
• VFD: Onboard VFD Both Airstreams
• Unit Control: Standard Unit Control Wiring - 24 VAC Transformer/Relay Package
