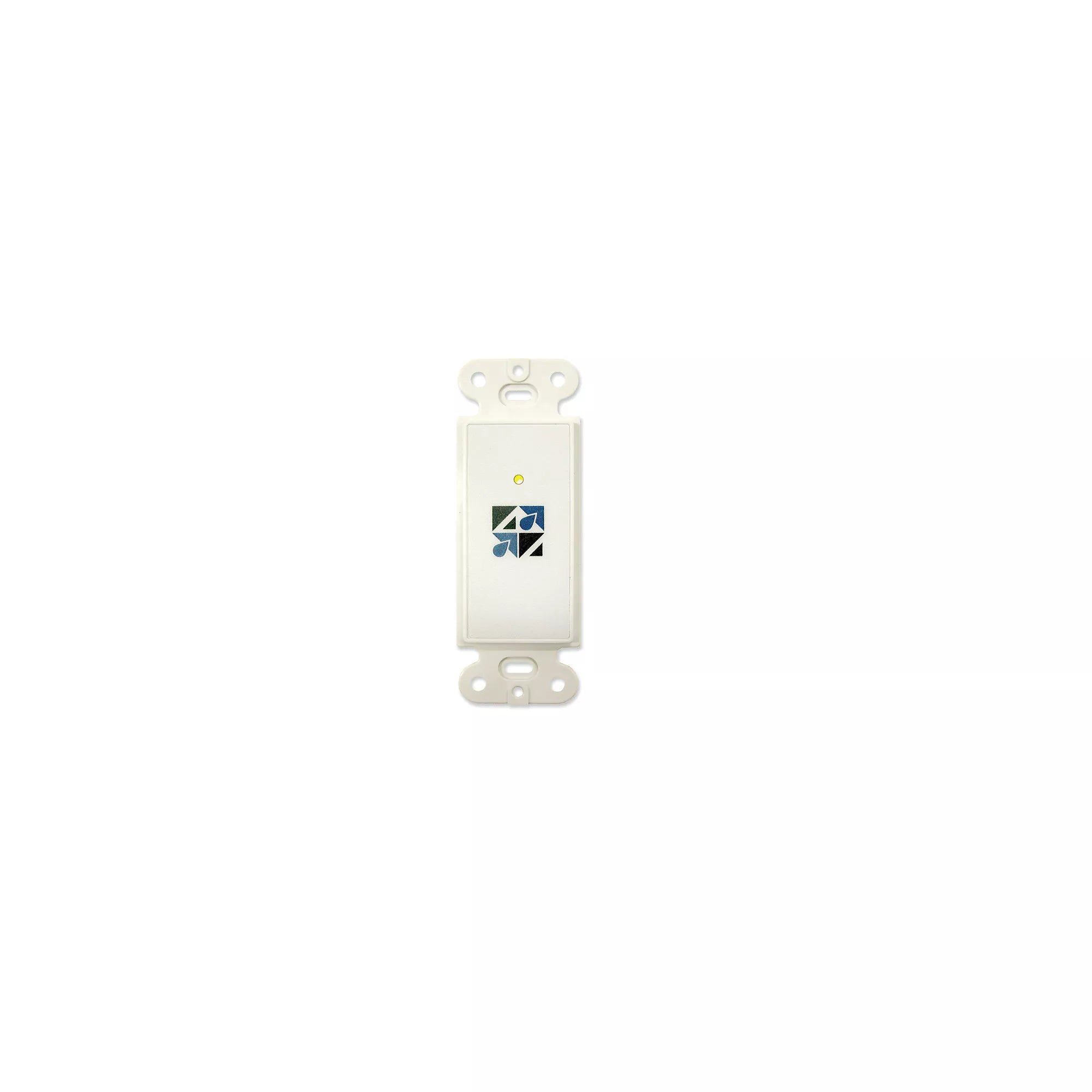

Renewaire 140480 pbl push button lighted point-of-use control 24 vac

Product Description

The RENEWAIRE 140480 is a push button point-of-use control designed for intermittent operation of RenewAire Residential ERV Models EV90, EV90P, EV130, EV200, and EV300. This 24 VAC single-phase control is UL Listed and UL Recognized, operating at 60 Hz. It functions as a push button timer, requiring connection to a PTL or PBT control.

• Push button control turns on ERV from bathrooms or other intermittent exhaust-only locations
• 20 minute ERV run-time with one push of the PBL button - Push two times for 40 minutes, or three times for 60 minutes
• Only two low voltage control wires needed from PBL back to PTL

Product Highlights

This RenewAire PBL control provides timed ERV operation for residential models, requiring only two low voltage wires for installation and must be used with a PTL or PBT control.

Product Information

Standard Information

• Brand: RENEWAIRE
• Manufacturer Part Number: 140480

Technical Specifications

• Control Type: Push button timer
• Brand: RenewAire
• Phase: Single
• Input Voltage: 24 VAC
• UL Listed: Yes
• Frequency: 60 Hz
• UL Recognized: Yes
• Model Compatibility: EV90, EV90P, EV130, EV200 and EV300 Models ERV Residential Unit
• Required Control: Must be used with PTL or PBT control
