Renewaire 140460 PTL percentage timer control 24 VAC

Product Description

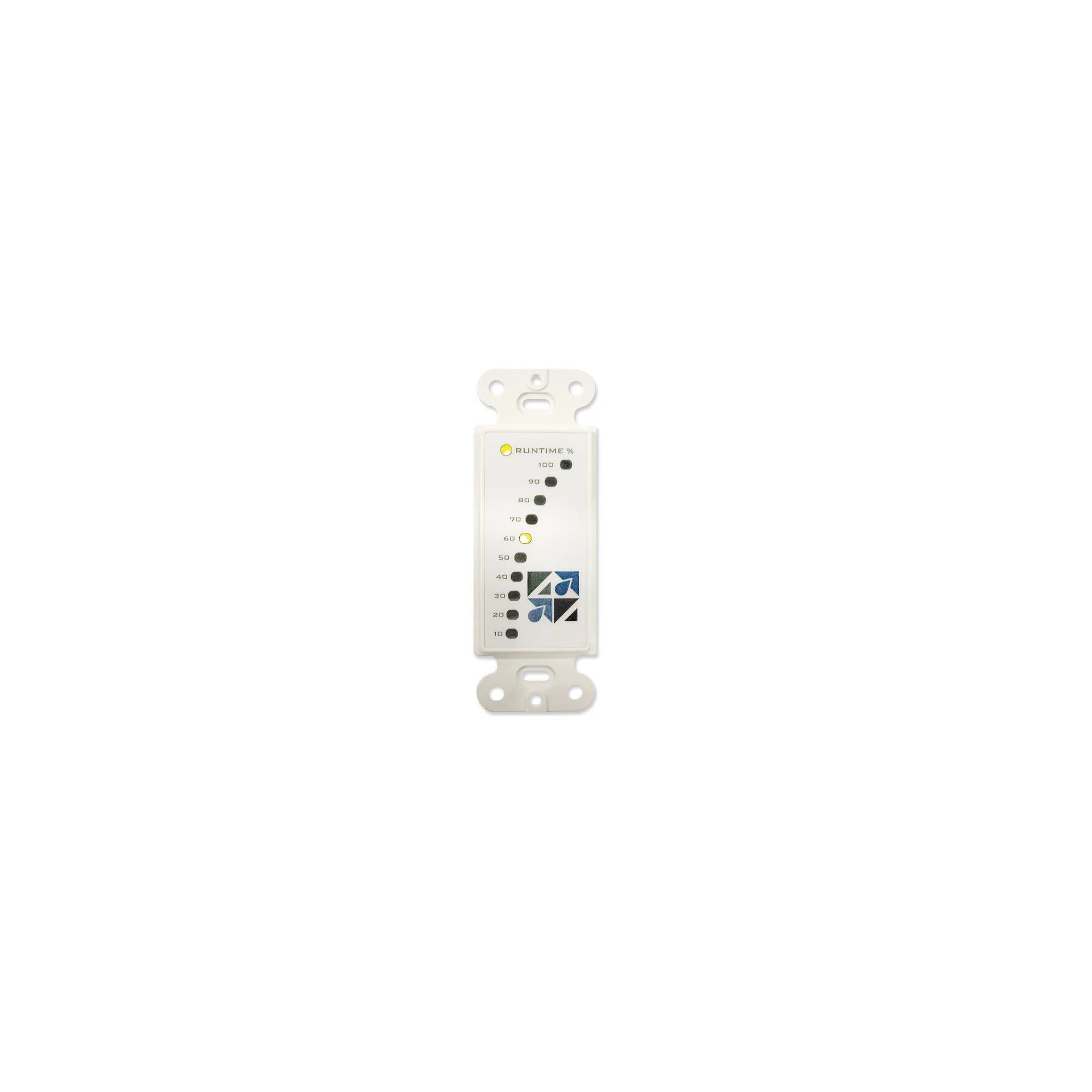

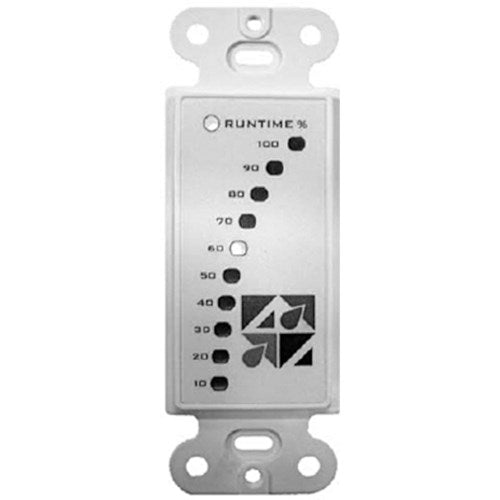

The RenewAire 140460 PTL Percentage Timer Control is designed as a primary control for RenewAire Residential ERV Models EV90, EV90P, EV130, EV200, and EV300. This single-phase timer operates at 24 VAC and 60 Hz, allowing the ERV unit to run for an adjustable duration each hour. It provides constant 'on' and 'off' capabilities, enhancing ventilation management for optimal indoor air quality.

• Runs unit an adjustable amount of time every hour
• Constant "on" and "off" capability
• Only two low voltage control wires needed from PTL back to ERV

Product Highlights

Primary control for RenewAire Residential ERV models, offering adjustable runtime for enhanced indoor air quality.

Product Information

Standard Information

• Brand: RENEWAIRE
• Manufacturer Part Number: 140460

Technical Specifications

• Unit of Measure: EA
• Type: Percentage timer
• Brand: RenewAire
• Phase: Single
• Input Voltage: 24 VAC
• UL Listed: Yes
• Frequency: 60 Hz
• UL Recognized: Yes
• Compatible ERV Models: EV90, EV90P, EV130, EV200, EV300
• Adjustable Runtime Settings: 10% to 100% continuous operation
• Control Wires Required: Two
• Wiring Gauge: 18–22 gauge
• Maximum Wiring Length: 500 feet
• Mounting: Standard 2″ x 4″ electrical box
• Cover Plate: Lutron Decora™
